NWP220US Network input panel - 2 x XLR + BT (4 CH)
MSRP:
POA
AUNWP220US_B
The NWP220 is a Dante™/AES67 network input panel featuring two XLR input connectors and an integrated Bluetooth receiver, which can transmit audio signals in a Dante™ audio network.
The audio inputs can be switched between line-level and microphone-level audio signals, and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP220 is compatible with any PoE network-based installation.

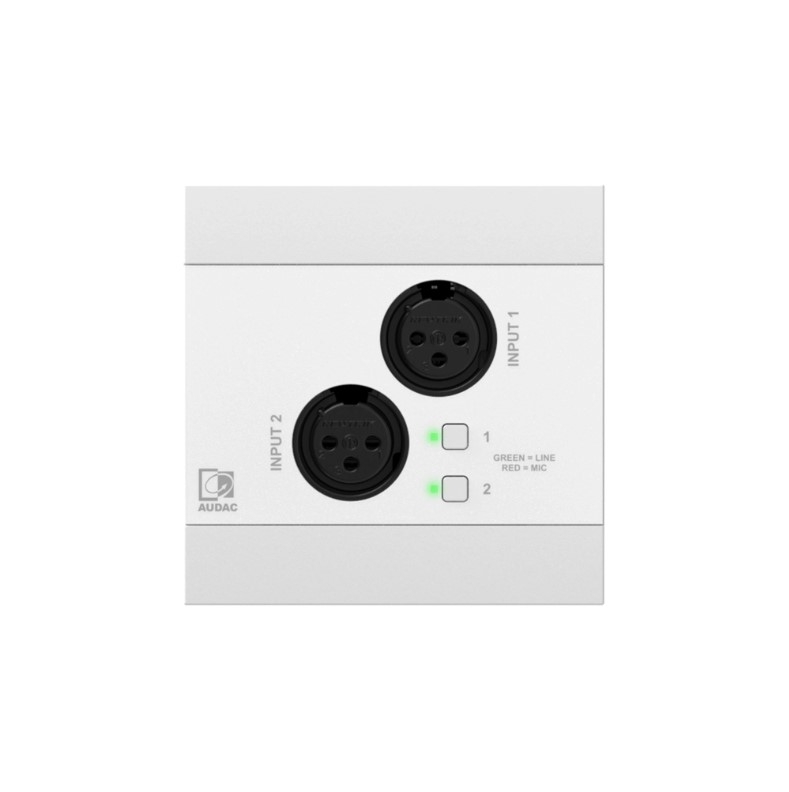

Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Highlights
- 2 x XLR inputs
- Integrated Bluetooth receiver
- Internal mixing & DSP processing
- 4-channel Dante™/AES67
| System specifications | ||||
|---|---|---|---|---|
| Inputs | 2 x XLR female (in) | |||
| Control | 2 buttons - Mic / Line switching | |||
| Indicators | 2 LED’s (RGB) - Input status | |||
| Configurable settings | IP settings | |||
| Device name | ||||
| Input range (Mic / Line) | ||||
| Gain | ||||
| Phantom power | ||||
| DSP (EQ) | ||||
| Mixing | ||||
| Configuration | Audac Touch™ | |||
| Integrated DSP | Yes (EQ) | |||
| Automatic level control | Yes | |||
| Phantom power | +48 V DC | |||
| Power | Supply | PoE powered (IEEE 802.3at) | ||

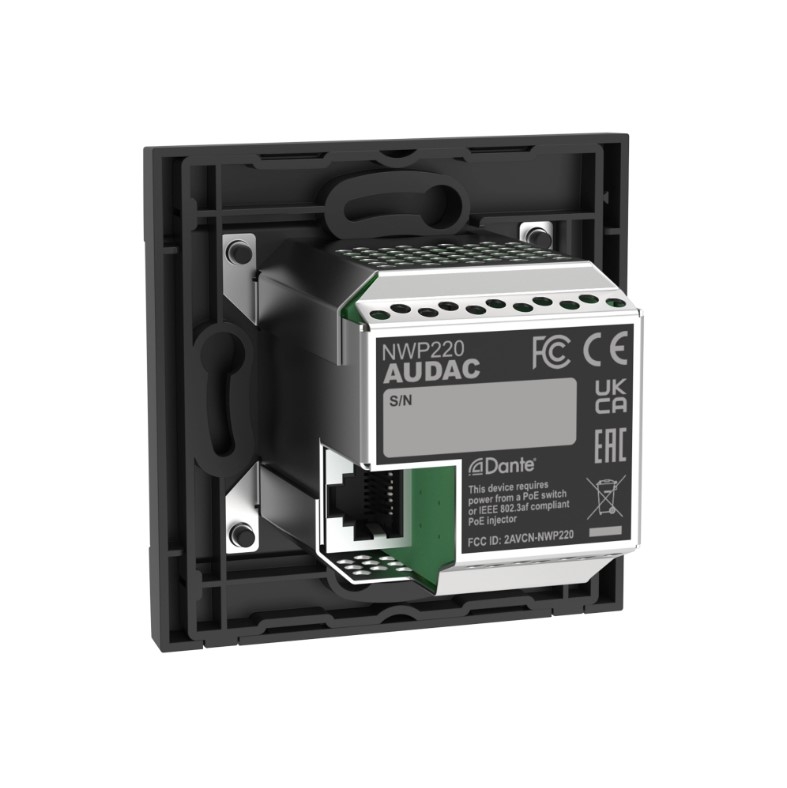

| Connectors | RJ45 (network + PoE) | |||
| 1 x XLR female (audio in) | ||||
| Product Features | ||||
|---|---|---|---|---|
| Construction | ABS | |||
| Front finish | Elegant front panel with glass | |||

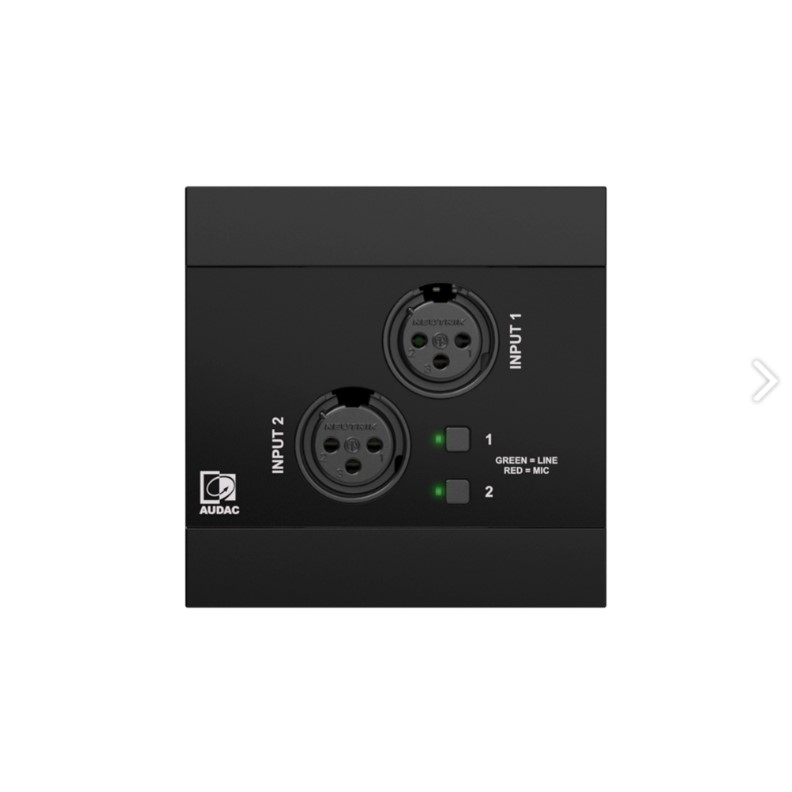

| Colours | Black (RAL9005) (NWP220/B) | |||

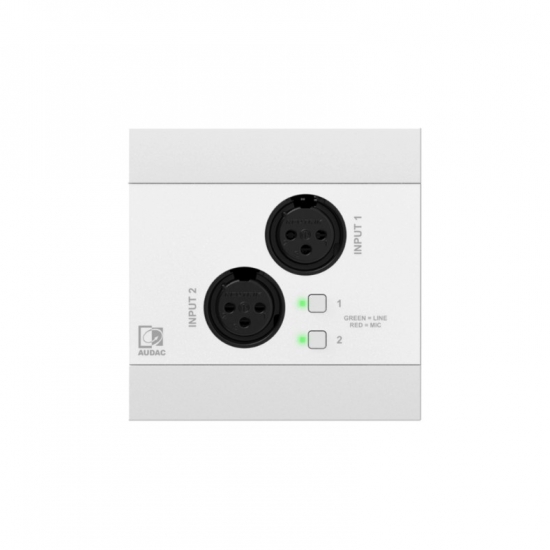

| White (RAL9003) (NWP220/W) | ||||
| Compatible devices | Any Dante™/AES67 compatible audio device | |||
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | |||
| Installation standard | Compatible with EU installation materials | |||
Block schematic
Dante™/AES67 networked audio input panel featuring various in- & output connections, ranging from XLR to Bluetooth and even USB Type-C. Powered over Ethernet and with their own internal mixing & EQ functionalities. True flexibility; the choice is yours.
A brief overview
Decentralized TouchLink™ setup
Centralized setup
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
