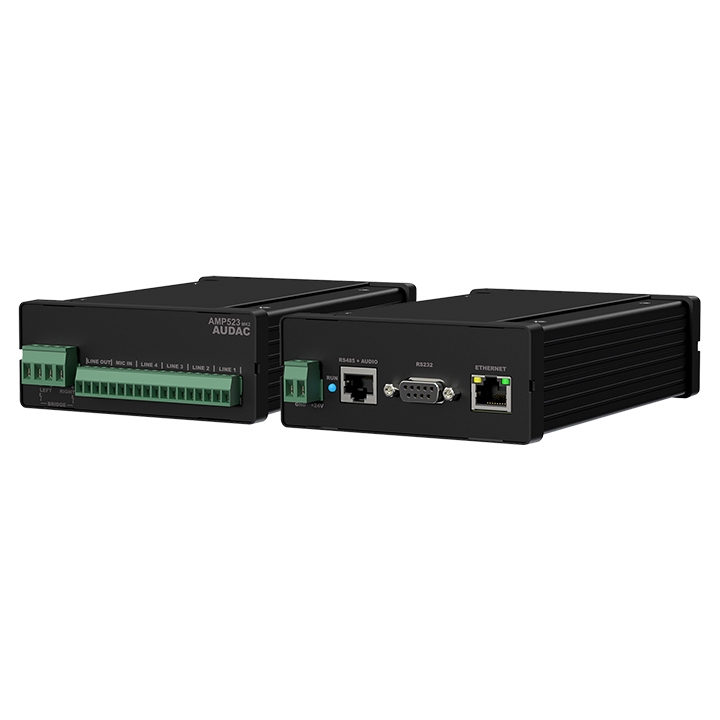

AMP523MK2 Web-based mini stereo amplifier 2 x 15W

MSRP: POA
AUAMP523MK2

Web-based mini stereo amplifier 2 x 15W

The AMP523 is a mini stereo amplifier with an integrated web-based control unit featuring four stereo line inputs and one balanced microphone input with phantom power. It has an output power rating of 2 x 15 Watt. The simple and compact but versatile functionalities make it perfectly suited for small speaker systems requiring compact and economical audio solutions that are comprehensive and easily controllable. Some typical applications are classrooms where the audio system will be used in combination with a smartboard, offices, and meeting rooms where the music should switch automatically from background music to speech or playback when the presentation starts, …. and many other similar applications.

The compact size and very high efficiency even make it possible to hide it in a closet, on a false ceiling, or mount it under a desk or table. The various stereo line inputs allow simultaneous connections for different sources such as laptops, CD or MP3 players, and tablets while having a microphone connected. The switching between the inputs, volume regulation, and other function controls can be done in multiple ways: an integrated website makes it possible to control all the functions from any computer with a web browser without requiring additional software while the RS232 connection makes it possible to control the AMP523 with any device supporting serial communication such as a computer or even a home or industrial automation system. Another option is to control the system through smartphones and tablets using the specially developed AUDAC Touch™ app.

Using this freely available application for smart devices guarantees total system control and configuration from any device at any location and at any time. To make the installation even more complete, an optional MWX43 or MWX45 wall panel can be installed to control the signal routing and volume level from one or multiple fixed locations. The Class-D amplifier technology, standby mode and included switching power supply makes this device compliant to the highest energy efficiency and environmental requirements. A variety of optionally available mounting brackets for the AUDAC S-Box product range are allowing desk, closet, or 19” equipment rack installation.

Would you like a Demo?
  • 4 unbalanced stereo line inputs
  • 1 x Microphone input
  • Priority audio inputs with phantom power
  • Compatible with AUDAC Touch™ 2
  • RS232 & TCP/IP control port
  • S-box™ modular multifunctional enclosure
  • Lightweight Class-D amplifier
RMS Power Satellite @ 8 Ω Bridge : 30 W
Inputs Balanced Stereo Connector : 18-pin Euro Terminal Block (Pitch - 3.81 mm)
Inputs Balanced Stereo Impedance : 20 kΩ
Inputs Balanced Stereo Sensitivity (1W/1m) : -10 dBV ~ +4 dBV
Inputs Balanced Microphone Type : 1 x Balanced Microphone
Inputs Balanced Microphone Connector : 18-pin Euro Terminal Block (Pitch - 3.81 mm)
Inputs Balanced Microphone Impedance : 47 kΩ
Inputs Balanced Microphone Sensitivity (1W/1m) : -45 dBV ~ -20 dBV
Inputs Other Type : 1 x RS-485 + Differential audio
Inputs Other Connector : RJ45
Inputs Other Type : 1 x RS-232
Inputs Other Connector : SUBD9
Inputs Other Type : 1 x Ethernet
Inputs Other Connector : RJ45
Outputs Type : 1 x Stereo Loudspeaker
Outputs Connector : 4-pin Euro Terminal Block (Pitch - 5.08 mm)
THD+N (@ 1 kHz) : < 0.1%
Crosstalk (@ 1 kHz) : < -75 dB
Signal / Noise : > 95 dB
Power Consumption Standby : < 3.0 W (PSD242 included)
Power Supply : 24V DC (PSD241 switching Power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
Efficiency : 87%
Cooling : Passive
Protection : Over heating
Protection : DC Short circuit
Protection : Limiter
Control : RS-232
Control : TCP/IP
Control : RS-485
Inputs Unbalanced Stereo Type : 4 x Stereo Unbalanced Line
Socket Connections (AUDAC Touch™) : 2 sockets
RMS Power @ 4 Ω Stereo : 2 x 15 W
RMS Power @ 8 Ω Stereo : 2 x 7.5 W
Dimensions : 108 x 44 x 165 mm (W x H x D)
Weight : 0.81 kg
Accessories Included : PSD241 - Power supply 24V / 1.67 A (Efficiency Level V)
Accessories Optional : Wall Controller (MWX43/45)
Accessories Optional : WMI18/22 & WLI18/22 Wall input unit
Accessories Optional : MBS1xx Wall mounting brackets
Accessories Optional : TR3030 100V Transformer 30 W

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
