ANI22 Dante audio network interface 2 in / 2 out

MSRP: POA
AUANI22-

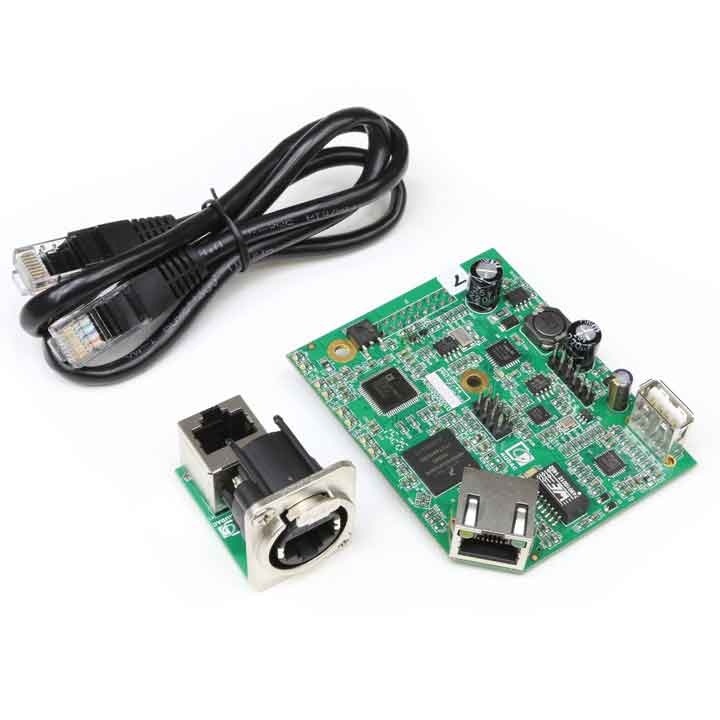

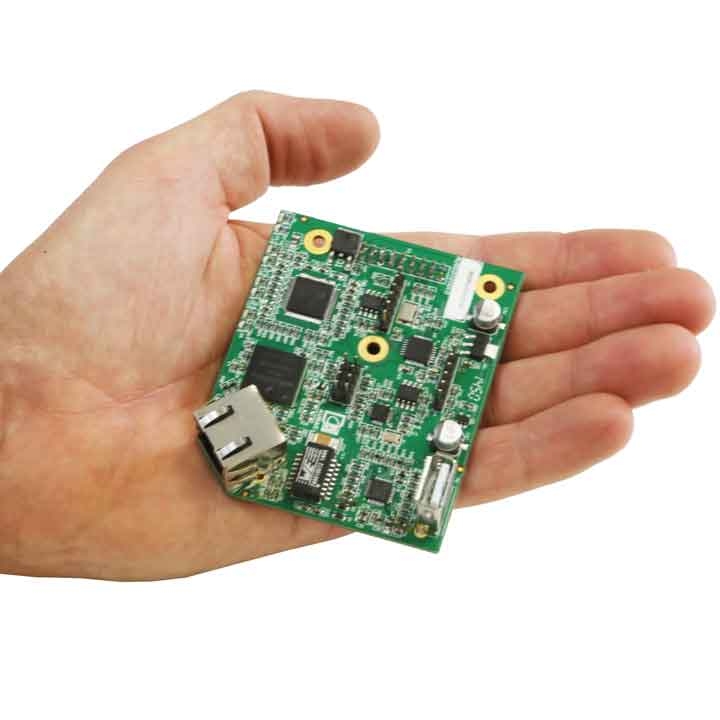

The ANI22 is a Dante audio network interface for installation into WaveDynamics™ series amplifiers with two input and two output channels. The installation of this optional module allows these amplifiers to be integrated into any DANTE enabled AV network and flawlessly transfer digital audio with any compatible product on the market, ranging from music sources to microphone systems, mixers, and many more. A truly plug & play solution is created when linking multiple DANTE enabled devices with each other on a standard IP network. It offers self-configuring solutions by using DHCP configuration, while the connection can be made to any existing 100 Mbit or 1 Gbit network infrastructure. Bidirectional signal transmissions with a sampling frequency of 48 kHz and a bit depth of 24 bit are simultaneously possible on all in and output channels, while guaranteeing an incredibly low latency with a maximum up to 5 ms. (depending of the network occupation).The network connection is implemented using an Ethercon compatible connector, allowing connection using standard RJ45 or ruggedized Ethercon connections in professional applications. The ANI22 comes delivered as an installation kit, including all required accessories for integration into the amplifier chassis. Installation shall be performed by qualified technicians.

Would you like a Demo?

Discontinued 2021. Replaced by ANI44XT.

Feature:

  • 48 kHz / 24 bit digital audio transfer
  • Incredible low latency (2 / 5 ms)
  • Works with standard 100Mbit or 1Gbit networking equipment
  • Compatible with any Dante-enabled device available on the market
  • True plug & play solution
  • Self-explanatory grafical routing

Applications:

  • Retail
  • Public facilities
  • Corporate spaces
  • Houses of worship
  • Clubs, bars, restaurants
Inputs Quantity : 2
Outputs Quantity : 2
Communication protocol : Audinate DANTE
Sampling frequency : 48 kHz
Sampling bit depth : 24-bit
Connectors : RJ45 (Ethernet)
Network specification : Standard 100 Mbit or 1 Gbit
Power Consumption : 1.5 W
Weight : 0.090 kg
Mounting : Integration in amplifier chassis

Dante Setup

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
