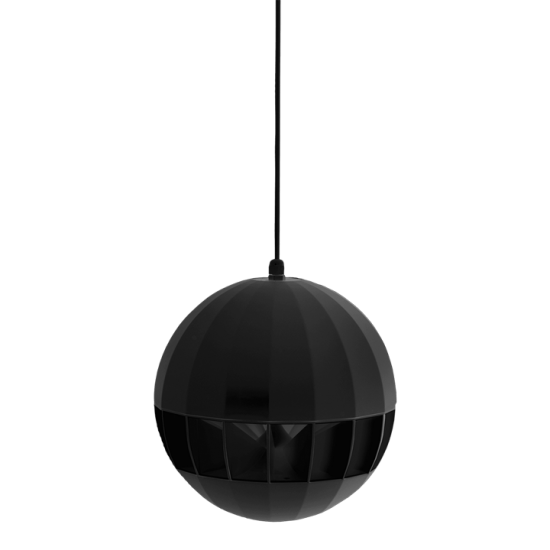

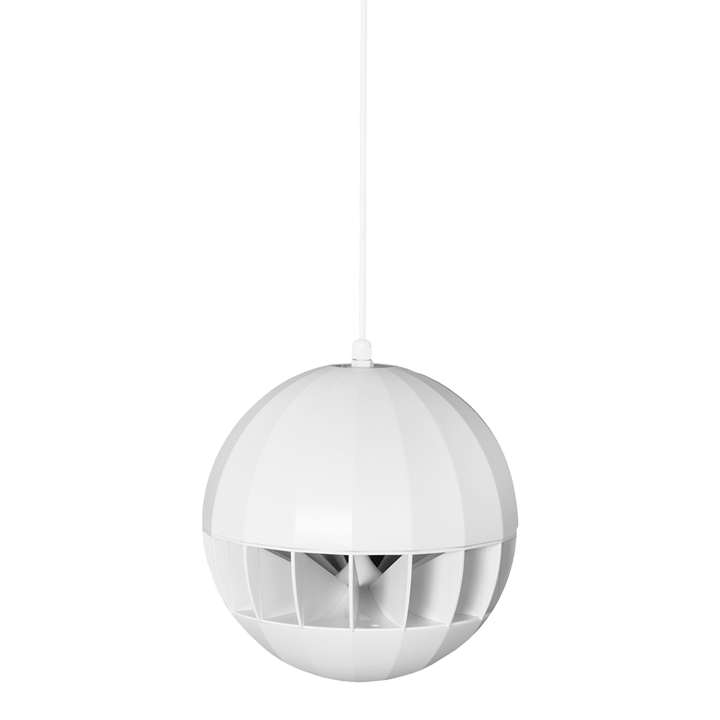

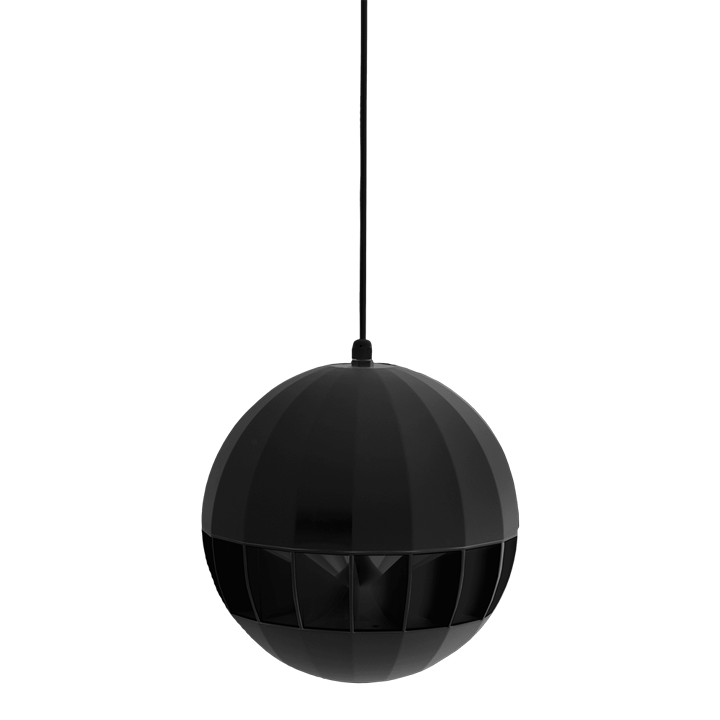

ASP20 Spherical hanging sound projector
MSRP:
POA
AUASP20-
Spherical hanging sound projector
The SP series are high efficiency sound projectors designed to provide good speech intelligibility and background music in a wide variation of applications. They are all weather-proof treated to be used indoor as well as outdoor and are perfect suited to be used in large 100V broadcast systems such as train stations or airports. They all meet the IP56 Ingress Protection standard. The ASP20 is a 20 Watt spherical loudspeaker, fitted with a 8" driver and a 100V line transformer with different power tappings for 20 Watt, 10 Watt, 5 Watt and 2.5 Watt. Its wide, smooth frequency response and high efficiency ensure high fidelity music and speech reproduction with a 360° horizontal coverage. This makes it perfect for big, open areas like factory halls or large retail spaces. The ABS housing is moisture and UV resistant and is equipped with a 1.5 m connection cable with steel core which meets all safety requirements for ceiling mounting.
| Speaker type : | Broadband |
| Max. Power : | 40 W |
| RMS Power : | 20 W |
| Line Transformer Tappings 1 : | 250 Ω - 100 V / Not used - 70 V / 20 W |
| Line Transformer Tappings 2 : | 500 Ω - 100 V / 20 W - 70 V / 10 W |
| Line Transformer Tappings 3 : | 1000 Ω - 100 V / 10 W - 70 V / 5 W |
| Line Transformer Tappings 4 : | 2000 Ω - 100 V / 5 W - 70 V / 2.5 W |
| Sensitivity (1W/1m) : | 92 dB |
| Sound Pressure (Max. W/1m) : | 103 dB |
| Dispersion Horizontal : | 360° |
| Ingress Protection rating : | IP56 |
| Connection : | 3.5 m multi-core connection cable with steel safety core |
| Drivers : | 8” |
| Frequency Response (± 3 dB) : | 80 Hz - 18 kHz |
| Dimensions : | 254 mm (Ø) |
| Weight : | 2.950 kg |
| Construction : | ABS |
| Colours : | White (RAL9010) |
| Operating temperature : | -20 °C ~ 60 °C |
| Accessories Included : | 1.5 m connection cable |
| Accessories Included : | Plastic wire clamp |
| Accessories Included : | Metal screw cable clamp |
| Accessories Included : | Safety hook |
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
