EPA252 Dual-channel Class-D amplifier 2 x 250W

MSRP: POA
AUEPA252-

Dual-channel Class-D amplifier 2 x 250W

This energy-efficient stereo amplifier will automatically switch to a standby mode when no audio signals are detected (less than 1Watt power consumption in standby mode). Their weight and compact size make these single rack space amplifiers ideal for both fixed and mobile installations. Their use of Class-D technology ensures excellent efficiency as well as outstanding sound quality. Thanks to the complete passively cooled entity only minimal maintenance is needed while ensuring maximum reliability. Various specific functions and advanced circuitry guarantee optimal protection against DC malfunctioning, short circuits, overheating, and overload. Signal input connections are integrated with balanced XLR connectors, and signal link through is possible using the XLR output connectors. Outputs are connected using terminal block connectors.

Would you like a Demo?

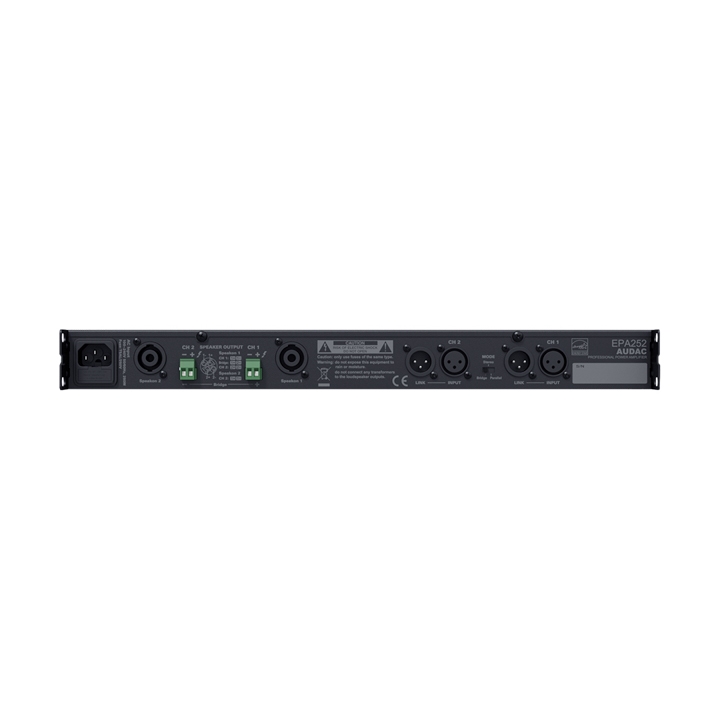

  • Speakon compatible & terminal block output connections
  • XLR input connections with crossover operation mode switch
  • Energy-star certified
  • Standby energy-saving mode
  • Lightweight Class-D amplifier
  • Convention cooled
  • Advanced protection circuit

Energy Star

Frequency Response (± 3 dB) : 20 Hz - 20 kHz
Signal / Noise : > 90 dB
THD+N (@ 1 kHz) : < 0.1%
Crosstalk (@ 1 kHz) : > 70 dB
Technology : Class-D
Power Supply : Switching mode
Power Supply : 100 ~ 240 V AC / 50 ~ 60 Hz
Power Consumption : 224 W
Inputs Sensitivity (1W/1m) : 0 dB (1V RMS)
Inputs Impedance : 12 kΩ balanced
Inputs Connector : XLR female with Male Linkthrough
Protection : DC Short circuit
Protection : Over heating
Protection : Over load
Protection : Signal limiting
Cooling : Convection cooled
Operating temperature : 0° ~ 40° @ 95% Humidity
Outputs Connector : Speakon compatible & 2-pin Euro Terminal Block (5.08 mm)
Power Consumption Standby : 0.8 Watt (30 min standby time)
RMS Power @ 4 Ω Stereo : 2 x 250 W
RMS Power @ 8 Ω Bridge : 500 W
RMS Power @ 8 Ω Stereo : 2 x 130 W
Dimensions : 482 x 44 x 330 mm (W x H x D)
Weight : 4.400 kg
Mounting : 19”
Unit height : 1 HE
Construction : Steel
Colours : Black

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
