KYRA12 Design column speaker 12 x 2"
MSRP:
POA
AUKYRA12/B
Design column speaker 12 x 2"
The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 120 Watt and the beamwidth of 170° x 20° makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues.
A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 40W, 20W, and 10W and/or low impedance (12Ω) systems**.
*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.
**Due to an optimized calibration, the KYRA12, compared to its predecessor the AXIR, will have a standard low impedance of 12 ohms instead of 6 ohms.
- Multi-tapping 100V line transformer
- Multi-functional wall bracket allowing swiveling and down-tilting
- Slimline aluminum design
- 12 x 2" high-quality broadband speakers
| Speaker type : | Broadband column |
| Max. Power : | 240 W |
| RMS Power : | 120 W |
| Outputs Impedance : | 12 Ω |
| Line Transformer Tappings 1 : | 40 W - 125 Ω (70V) |
| Line Transformer Tappings 2 : | 250 Ω - 100 V / 40 W - 70 V / 20 W |
| Line Transformer Tappings 3 : | 500 Ω - 100 V / 20 W - 70 V / 10 W |
| Line Transformer Tappings 4 : | 1000 Ω - 100 V / 10 W - 70 V / 5 W |
| Sensitivity (1W/1m) : | 92 dB |
| Sound Pressure (Max. W/1m) : | 113 dB |
| Dispersion Horizontal : | 174° (-6 dB avg 1 kHz - 4 kHz) |
| Frequency Range (-10 dB) : Response (± 3 dB): |
120 Hz - 20 kHz 150 Hz - 20 kHz |
| Dispersion Vertical : Horizontal: |
9° (-6 dB avg 1 kHz - 4 kHz) |
| Drivers : | 12 x 2” |
| Incline angle : | Left: 42° Right: 42° Bottom: 13° |
| Operating Temperature : | -20 - +50 °C |
| Ingress Protection rating | IP3x |
| Dimensions : | 70 x 1006 x 101 mm (W x H x D) |
| Construction : | Aluminum with plastic side covers |
| Front finish : | Steel grill |

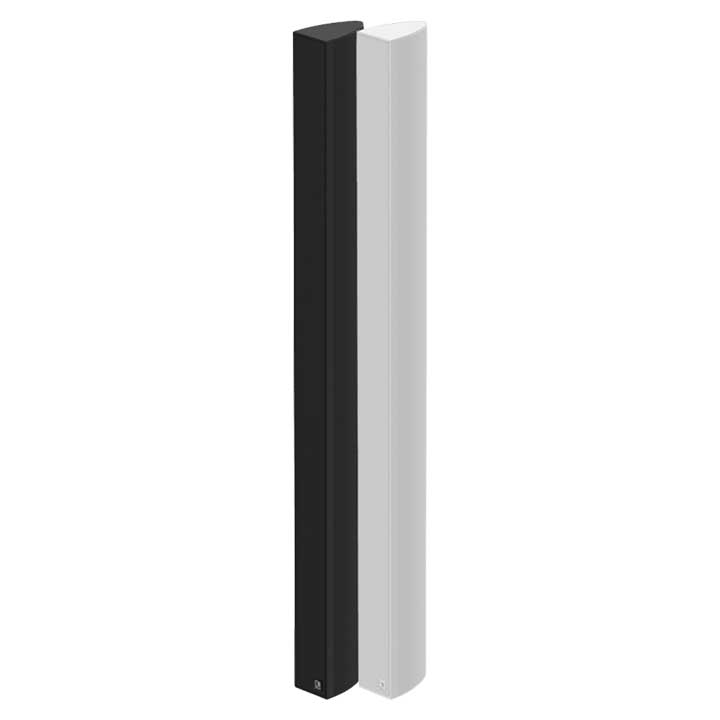

| Colours : | Black (KYRA12/B - RAL9005) |

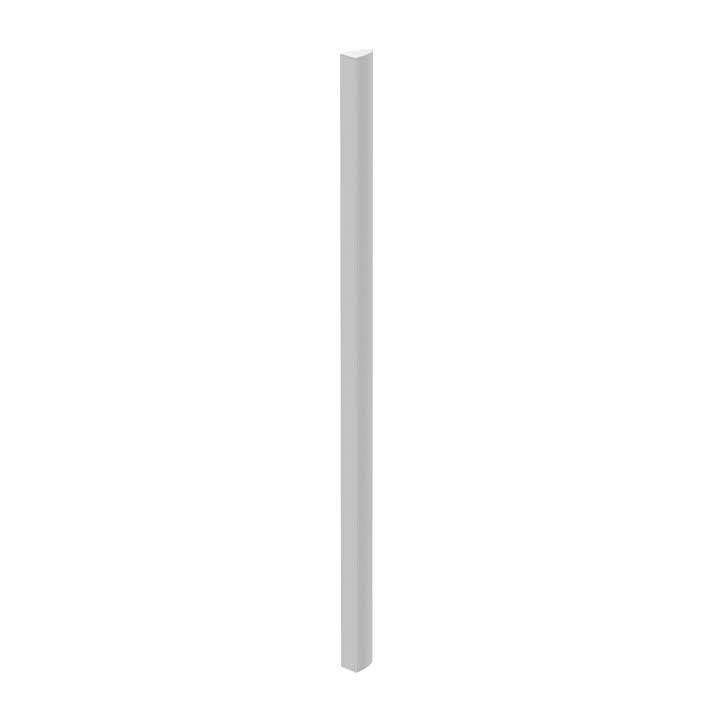

| Colours : | White (KYRA12/W - RAL9003) |
| Accessories Included : | 2-way Revolving mounting bracket 1 x 3-pin Euro Terminal Block Input connectors |
ADVANCED MOUNTING POSSIBILITIES

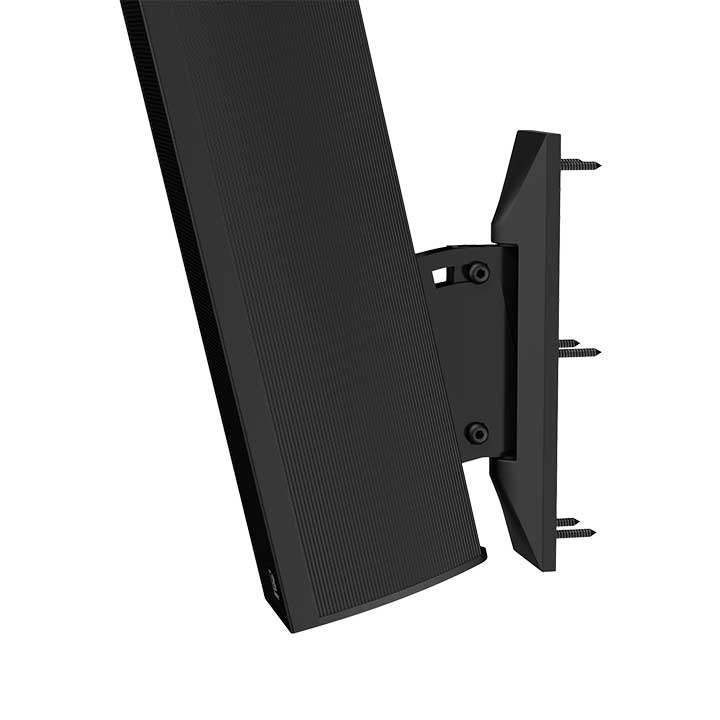

An included mounting bracket allows easy swiveling and down-tilting. The renewed bracket ensures that the distance from the wall mounting surface to the front of the loudspeaker is only 147mm, which is 22mm less than the previous version, allowing the column loudspeaker to blend even more esthetically into its surroundings.
ONLY THE HIGHEST QUALITY MATERIALS
The KYRA column speakers are housed in slim and elegantly constructed enclosures made out of aluminum and finished with finely perforated grills.
OPTIMIZED SPEAKER DRIVER PLACEMENT

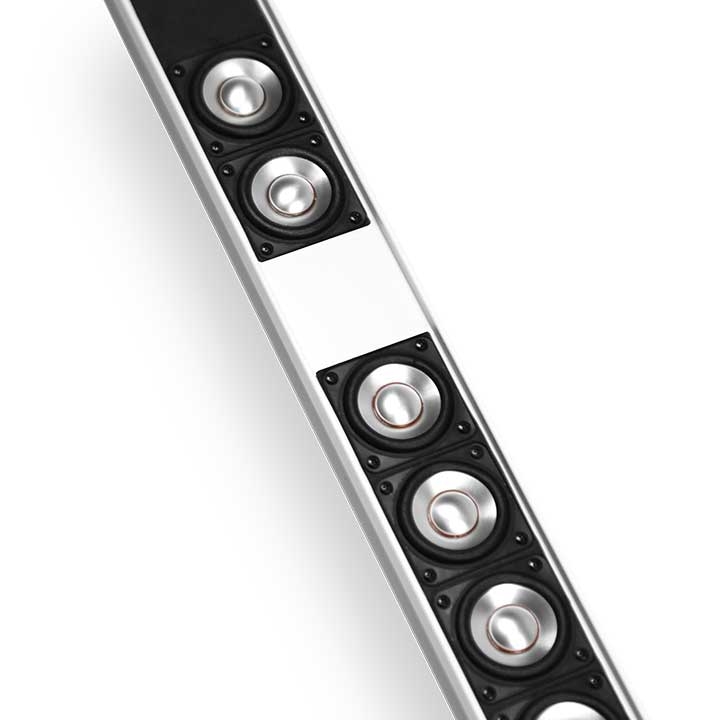

The improved 2" drivers of the KYRA series are repositioned to provide an optimized coverage area.
PLUG-AND-PLAY MULTI-TAPPING

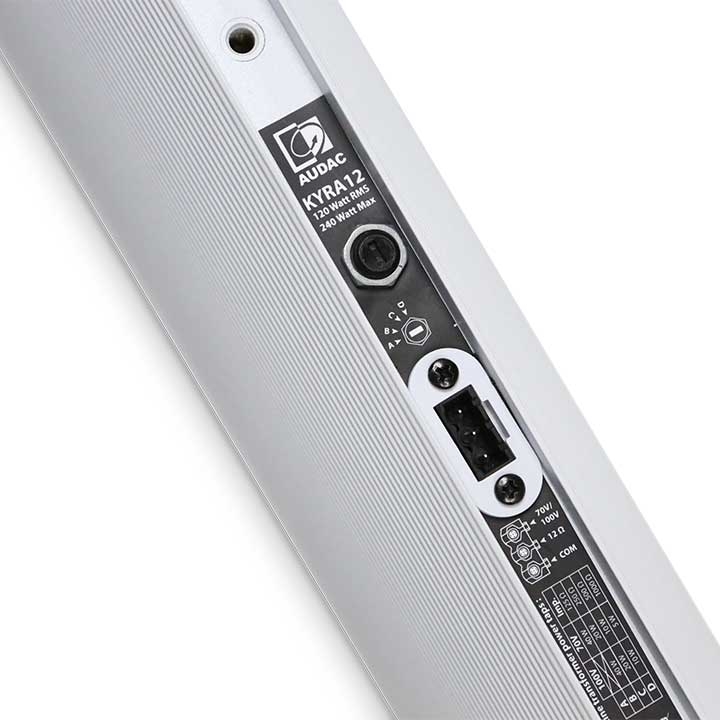

The power tapping switch of the KYRA's indoor versions has been moved to the back of the speaker, allowing you to easily choose the right power tapping for the right 70V/100V application without removing the grill.
EASE FOCUS 3 - UNIVERSAL SOUND SYSTEM MODELING IN 3D
EASE Focus 3 is an acoustic simulation program for 3D modeling of line arrays, sub arrays, columns, and conventional loudspeakers.
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
