MWX45 MTX wall panel controller 45 x 45 mm

MSRP: POA
AUMWX45/B

MTX wall panel controller 45 x 45 mm

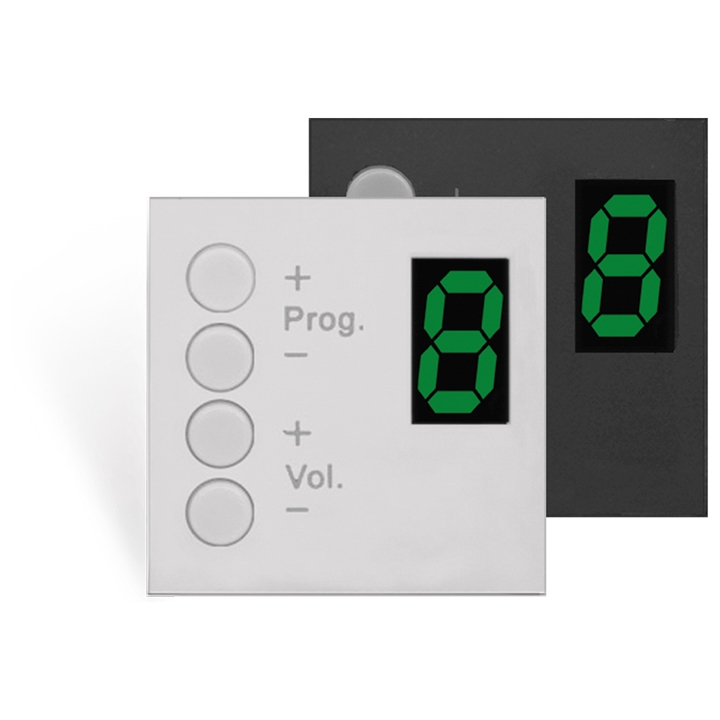

The MWX45 are wall panel controllers to be used in combination with the AUDAC MTX series multi-zone audio matrix systems and the AUDAC AMP523MK2 & RM523. It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume. The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the backside of the wall panel. The wall panels are available in 45 mm, this version is compatible with AUDAC, Niko, Legrand, and other standard 45 x 45 mm installation materials. Thanks to its slim and good looking design, these wall panel controllers will blend into all kinds of different environments or interiors. Available in black (/B) and white (/W). There are two different AUDAC cover frames with metal subframe available, for 1 or 2 units, which are also available in black (/B) or white (/W).

Variant MSRP
Black version AUMWX45/B POA
White version AUMWX45/W POA
Would you like a Demo?
  • Terminal block connection
  • Program selection and volume control
  • Led display
  • Integration with 45 x 45 mm installation materials
Control : RS-485
Power Consumption : 0.35 W - 14 mA / 24 V
Connectors : 4-pin Euro Terminal Block
Cabling : CAT5 (up to 500 meter)
Dimensions : 45 x 45 x 33 mm (W x H x D)
Weight : 0.028 kg
Construction : ABS
Finish : Soft-touch painting
Mounting : 45 x 45 mm (Audac / Niko / Legrand)
Colours : Black (RAL9005) (MWX45/B)
Colours : White (RAL9010) (MWX45/W)
Accessories Optional : CP45CF1 Cover frame
Accessories Optional : CP45CF2 Cover frame

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
