MWX65 All-in-one wall panel for MTX

MSRP: POA
AUMWX65/B

All-in-one wall panel for MTX

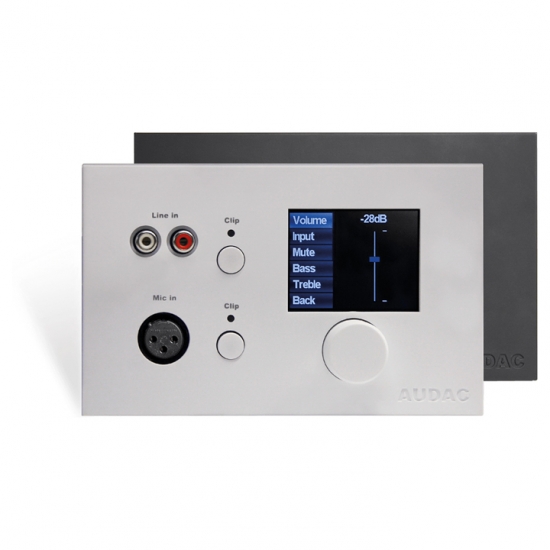

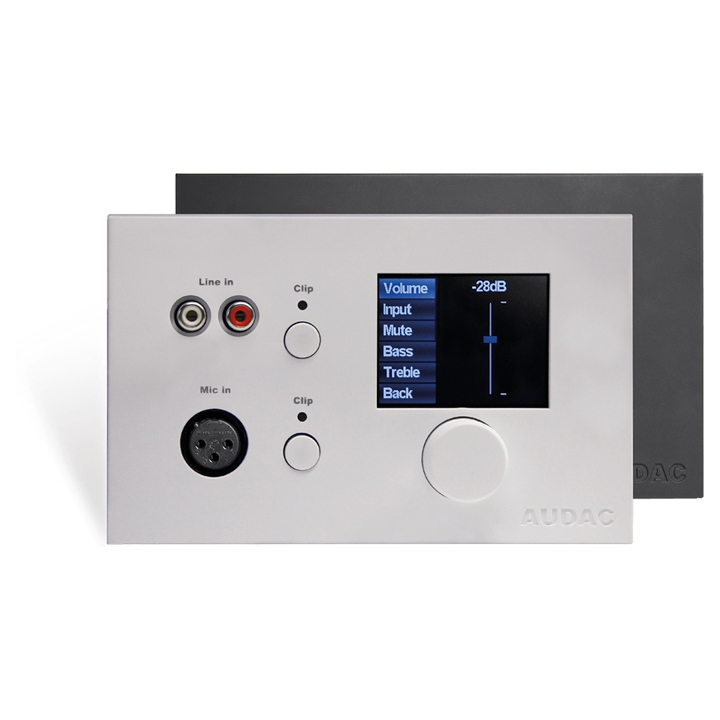

The MWX65 is an all-in-one wall panel controller to be used in combination with the AUDAC MTX series multi-zone audio matrix systems. It can control the input signal and volume for one zone and also contains an additional line and microphone level input which can be patched to the zone it is connected to. Both input selection and volume control, as well as a two-band tone control, can be controlled using the versatile rotatable push-dial while the integrated 2.5” graphical display ensures a user-friendly experience. An XLR connector is provided as additional microphone input while the line input is performed using RCA connectors. The signals applied to these inputs can be used as one additional local input. This enables you to connect any CD or MP3 player as a local music source or connect a microphone for speeches or other announcements. The input mixing can be done by using both push-lock potentiometers. The microphone input has the possibility to provide 12V phantom power which can be turned on and off by software configuration. The wiring between the matrix and the wall panel should be performed by using standard UTP CAT5 cabling which transfers both the control and audio signals to the matrix while providing the power supply for the wall panel.

Variant MSRP
Black version AUMWX65/B POA
White version AUMWX65/W POA
Would you like a Demo?
  • Terminal block connection
  • 2.5" LCD display with an intuitive user interface
  • unbalanced stereo line input
Control : RS-485
Audio transfer : Analogue differential (Dual mono)
Inputs Balanced Microphone Connector : XLR female
Phantom Power : 12 V DC (software enabling)
Cabling : CAT5 (up to 500 meter)
Display Type : 2.5” Graphical Full colour
Power Consumption : 1.8 W - 75 mA / 24 V
Connectors : 8-pin Euro Terminal Block
Inputs Unbalanced Stereo Connector : RCA
Inputs Unbalanced Stereo Sensitivity (1W/1m) : -12 dBV ~ 12 dBV
Inputs Unbalanced Stereo THD+N (@ 1 kHz) : < 0.05 %
Inputs Unbalanced Stereo Signal / Noise : 85 dB
Inputs Balanced Microphone Sensitivity (1W/1m) : -50 dBV ~ -15 dBV
Inputs Balanced Microphone THD+N (@ 1 kHz) : < 0.1%
Inputs Balanced Microphone Signal / Noise : 75 dB
Dimensions : 153 x 94 x 45 mm (W x H x D)
Built-in depth : 37 mm
Weight : 0.210 kg
Construction : ABS
Colours : White (RAL9010) (WMX65/W)
Colours : Black (RAL9005) (MWX65/B)
Accessories Optional Flush mount Installation boxes : WB5065/FS: Concrete & Brick walls
Accessories Optional Flush mount Installation boxes : WB5065/FG: Wooden & Gypsum walls
Accessories Optional Surface mount Installation boxes : WB5065/SW: White version
Accessories Optional Surface mount Installation boxes : WB5065/SB: Black version

An easy and logical way of controlling volume and more advanced settings

This extremely efficient way of controlling your user interface is incorporated in AUDAC wall panels, WaveDynamics™ amplifiers, audio players, and MTX matrixes. It allows an easy and logical way of controlling volume and more advanced settings such as EQ and source selection. The Scroll-Push™ button also provides a design advantage to the front of the device by replacing a large selection of buttons.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
