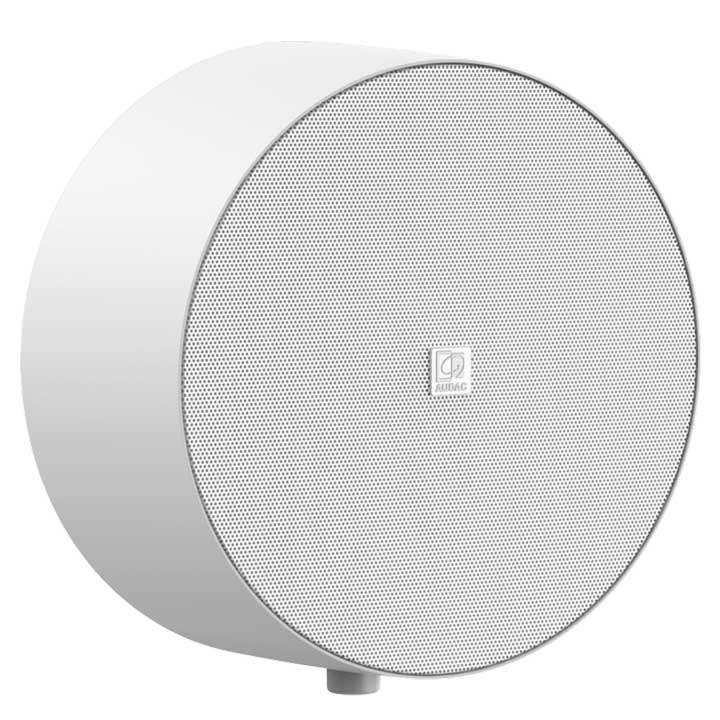

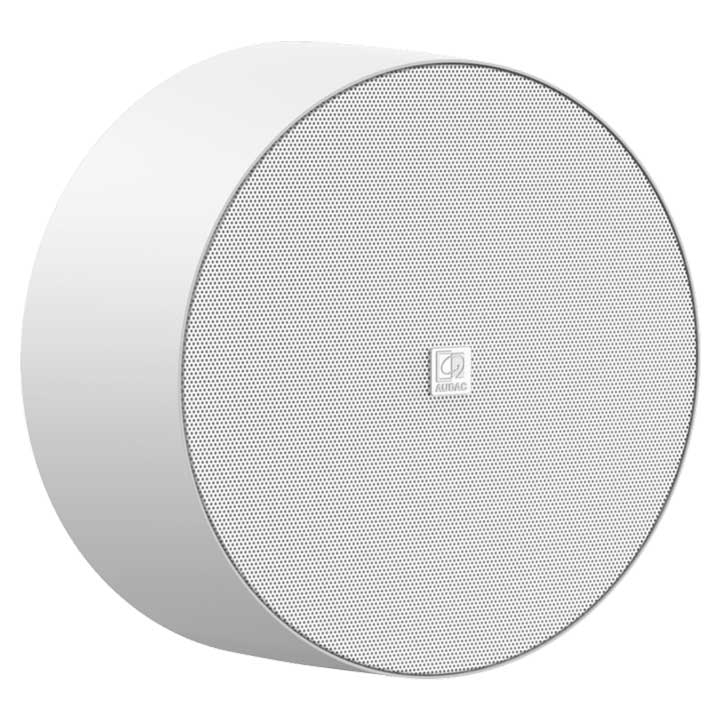

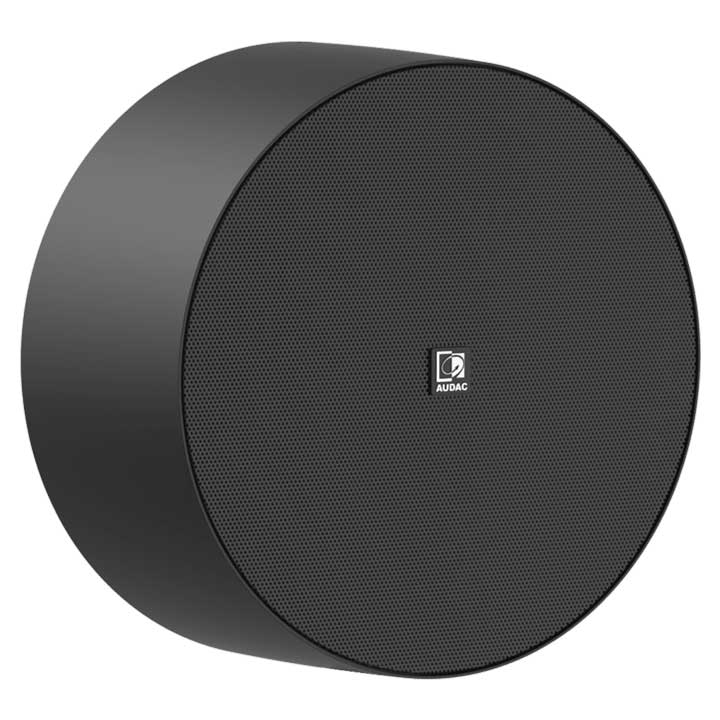

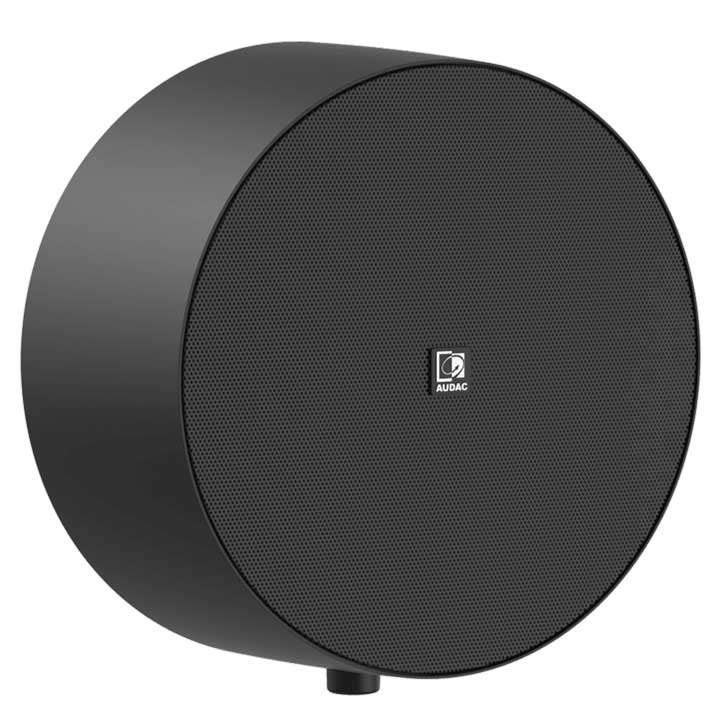

NELO706 Surface-mount speaker

MSRP: POA
AUNELO706V/B

Surface-mount speaker

The NELO706 surface-mount loudspeakers allow installation to any wall or ceiling where functional and cost-efficient reproduction for music & speech is required. It features a 6.5” broadband loudspeaker with a continuous power handling of 10 Watt (RMS) and is fitted with a line transformer for use in 70V/100V public address systems with power tappings for 6W and 3W. The housing is minimalistic and elegant designed with a very narrow border and a finely perforated steel grill on the front. Connections are made through SnapConnect™ terminals, offering a faster, more reliable, and safer choice for fixed installations. The NELO706 are available in various models with (NELO706V) and without (NELO706) individual volume controller on its side while being available in two different colors (Black /B & White /W) to blend in with any residential, commercial or industrial environment.

Please note: given specifications are preliminary and subject to change.

Variant MSRP
Black version with volume controller AUNELO706V/B POA
White version with volume controller AUNELO706V/W POA
Black version without volume controller AUNELO706/B POA
White version without volume controller AUNELO706/W POA
Would you like a Demo?

70/100 V

Impedance : 8 Ω
Max. Power : 20 W
RMS Power : 10 W
Sensitivity (1W/1m) : 96 dB
Sound Pressure (Max. W/1m) @ 100 V : 106 dB
Speaker type : Broadband
Drivers : 6.5” Full Range
Frequency Response (± 3 dB) : 100 Hz - 15 kHz
Frequency Range (-10 dB) : 70 Hz - 18 kHz
Line Transformer Tappings 1 : 833 Ω - 100 V / Not used - 70 V / 6 W
Line Transformer Tappings 2 : 1667 Ω - 100 V / 6 W - 70 V / 3 W
Line Transformer Tappings 3 : 3333 Ω - 100 V / 3 W - 70 V / 1.5 W
Dispersion Conical : 140°
Connection : SnapConnect™
Volume control : Integrated rotary volume controller (only NELO706V)
Front finish : Steel grille

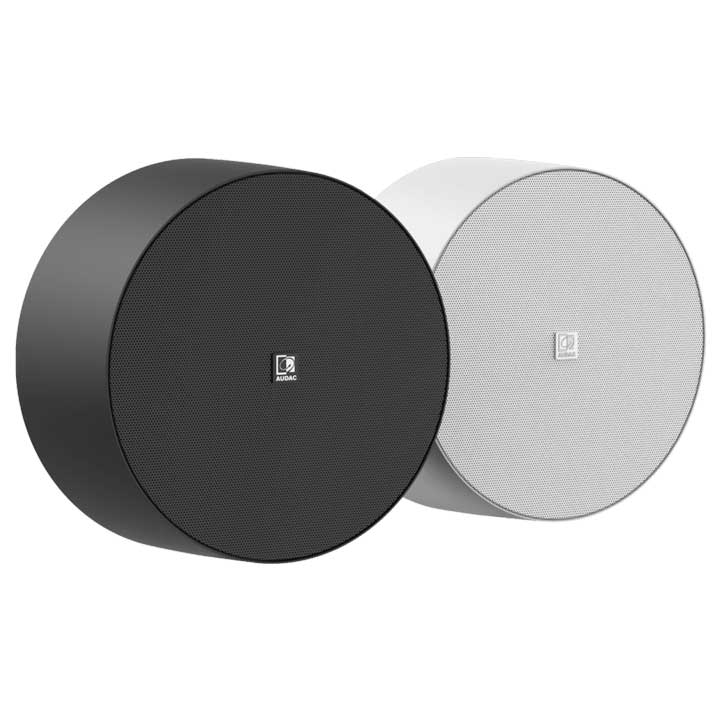

Colours : Black & White
Construction : ABS
Front finish : Borderless finely perforated steel grille
Colours : White (RAL9003) (NELO706/W)
Colours : Black (RAL9005) (NELO706/B)
Dimensions : 8.12" x 3.74" (206.5 x 95 mm) (Ø x D)
Operating temperature : -13 °F ~ 158 °F (-25 °C ~ 70 °C)

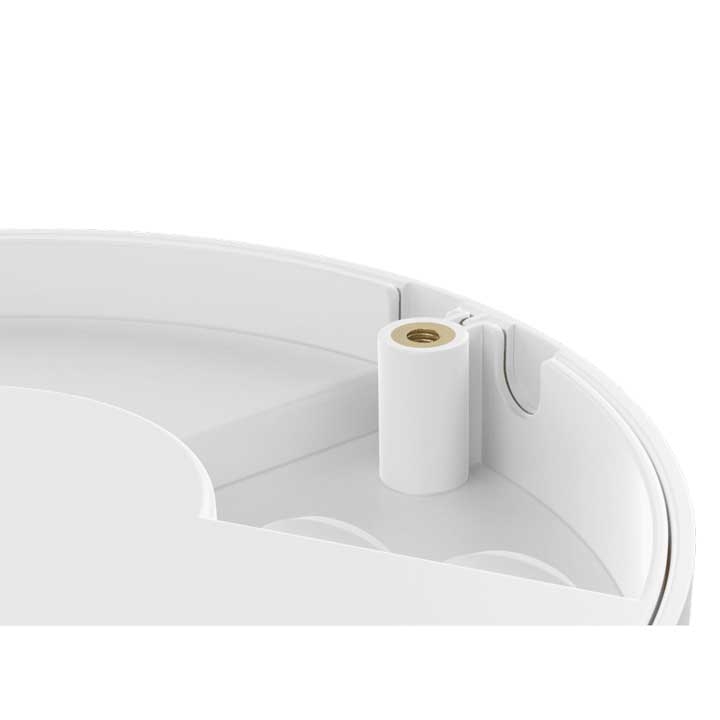

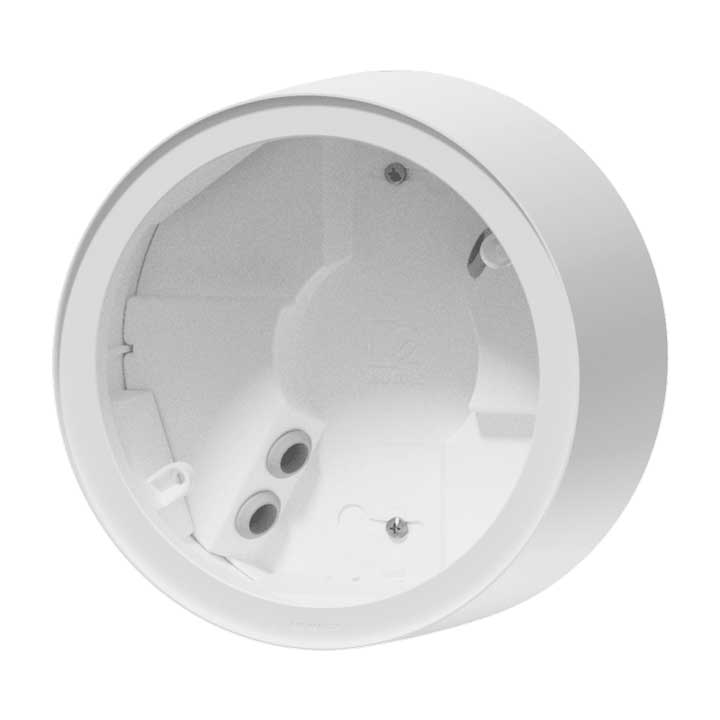

Mounting : Wall/Ceiling mounting (two screw holes)

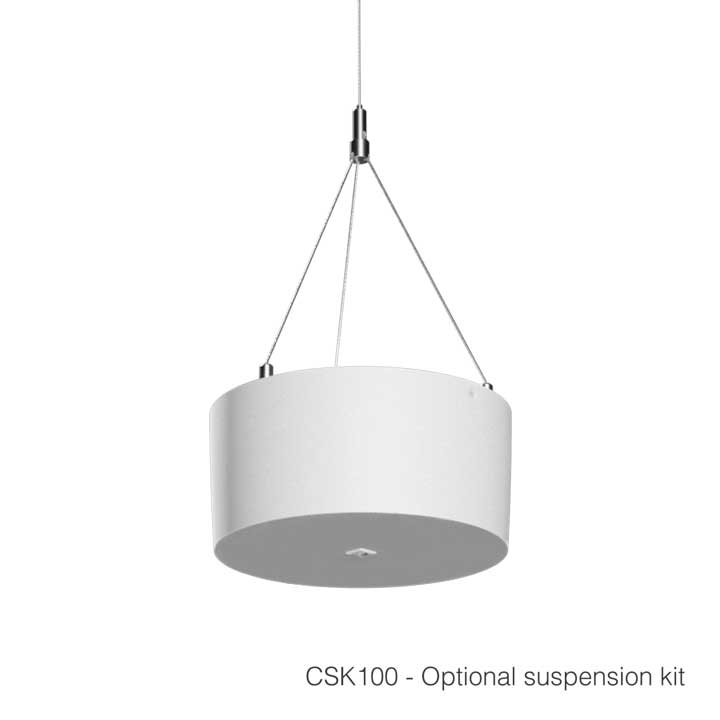

Mounting : CSK100 ceiling suspension kit (optional)

Fast and safe speaker connection

A more user-friendly equivalent for screw terminal connectors to connect speaker cables together. SnapConnect™ is a faster, more reliable, and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm².

The smart transparent housing enables the installer to see at a glance whether all conductors have been fully inserted and properly connected. Instant polarity identification is achieved due to the colored levers which also avoid the need for any tools for operating.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.

Accessories
