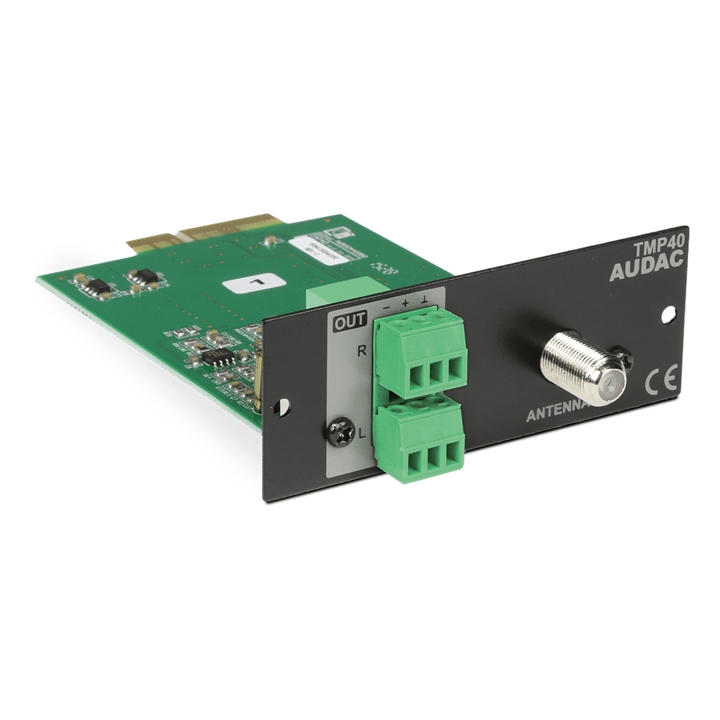

TMP40 SourceCon™ FM tuner module

MSRP: POA
AUTMP40-

SourceCon™ FM tuner module

The TMP40 is a tuner with worldwide FM band support featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted into a supporting slot, the module is instantly installed, discovered, and ready for operation without requiring any additional internal wiring or complex configuration. The TMP40 provides access to a wide variety of radio stations while guaranteeing a high-quality audio reproduction. Station selection can be done manually or automatically, while up to 10 preferred channels can be internally stored and recalled. Radio station information carried by RDS can be retrieved, while other functions such as mono/stereo switching (FM) always guarantee the best possible audio clarity. Besides the signal output level which is user-configurable, the traffic announcement volume can be individually set which guarantees the best intelligibility in specific requiring applications. Signal reception strength can be retrieved from the module and indicated on the graphical interface of the controlling device. The antenna input is implemented by an F-type connector on its panel, allowing connection of the included antenna cable or any other external antenna using 75 O coaxial cabling. The balanced stereo line output is connected through two 3-pin terminal block connections.

Would you like a Demo?
  • Works with any SourceCon™ enabled device
  • Worldwide FM band support
  • RDS / radio text station information
  • Manual & auto-tuning
  • True plug & play solution
  • F-type antenna connection
  • Preferential station storage
  • Signal strength indication
  • Balanced stereo line output

Discover more about our modular audio players

Connection : SourceCon™ interface card slot
Inputs : F-type antenna connection (75 Ω)
FM Tuning Range (-10 dB) : 64 ~ 108 MHz
FM Tuning Range (-10 dB) : 87.5 ~ 108 MHz
Sensitivity (1W/1m) : -100 dBm
Signal / Noise : 42 dB
THD+N (@ 1 kHz) : < 0.1%
Frequency Response (± 3 dB) : 30 Hz - 15 kHz
Crosstalk (@ 1 kHz) : 42 dB
Outputs Type : Balanced stereo line outputs (3-pin Euro Terminal Block (Pitch - 3.81 mm))
Outputs Level : +8 dB ~ -55 dB
Power Consumption : 0.5 W
Dimensions : 87 x 34.5 x 114 mm (W x H x D)
Weight : 0.071 kg
Mounting : SourceCon™ interface card slot
Accessories Included : Antenna cable
Accessories Optional : ASK40S 4-way antenna splitter kit

The choice is yours

SourceCon™ technology guarantees true plug & play implementation for any compatible device, allowing your media player to be tailored to fit any specific application. The wide variation of compatible modules and extensive configuration possibilities allows flexible combinations for any application.

Installation is done by sliding the modules into guide rails, while connections are made using boardedge connections. This allows simple and fast installation without requiring additional internal wiring or complex configuration. When inserted into a supporting slot, the module is instantly installed, discovered and ready for operation.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
