WX802_O 8" Outdoor universal wall speaker

MSRP: POA
AUWX802MK2/OB

8" Outdoor universal wall speaker

The WX802/O is a powerful 2-way performance speaker which is specially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech. It lends itself to a wide variation of outdoor applications, ensuring a clear and powerful sound reproduction. Hereby, the WX802/O is the perfect companion for outdoor applications where clear background music is desirable throughout the day and a more powerful sound with deeper bass is necessary when the party erupts after sunset. The sound is coming from a weatherproof treated 8” low-frequency loudspeaker in combination with a 1” dome tweeter which is built in an aesthetical and solid synthetic enclosure.

The material used for the mounting bracket on the outdoor versions has been improved by using aluminum, making the WX series MK2 even more resistant to extreme weather conditions. The bracket allows users to mount the WX802/O vertically as well as horizontally.

Special treatment with powder coating provides the necessary protection for all weather conditions. Because of this, the brackets can pass the 96 hours salt-spray test. A drain hole behind the aluminum front grill allows letting the moisture flow out when condensation occurs. The waterproof AWX-5 connector at the backside makes sure that this speaker meets the IP55 standards.

Variant MSRP
Outdoor black version AUWX802MK2/OB POA
Outdoor white version AUWX802MK2/OW POA
Would you like a Demo?

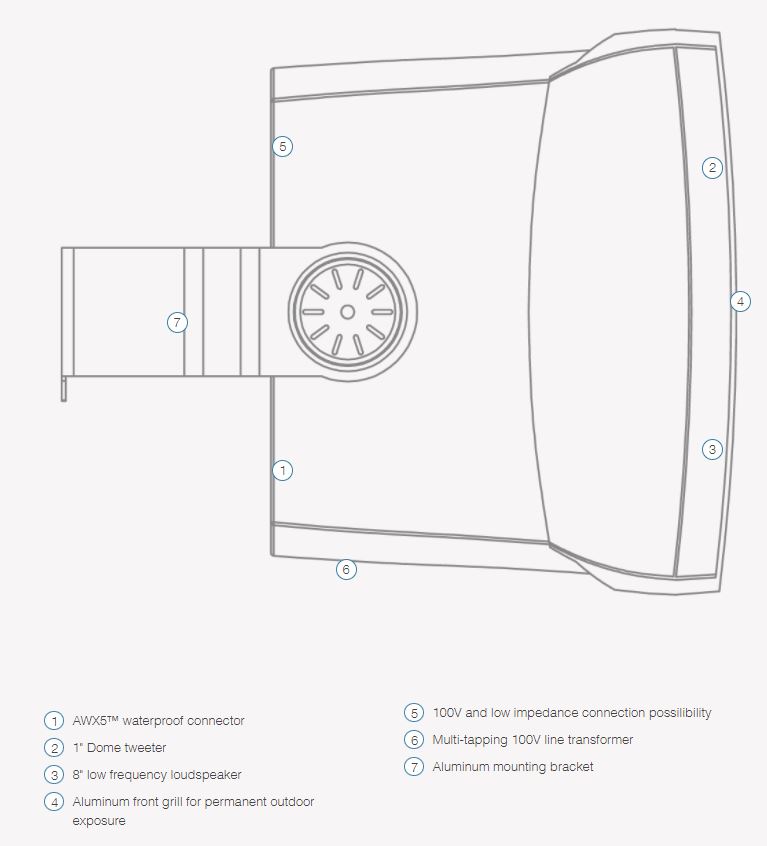

  • 1" Dome tweeter
  • 8" Low frequency loudspeaker
  • Aluminum mounting bracket (MK2 version)
  • Aluminum grill
  • AWX5™ waterproof connector
  • Vertical and horizontal mounting
  • Multi-tapping 100V line transformer
  • 100V and low impedance connection possibility

IP55 100V 16 Ohm Waterproof

Note: Sold in pairs, priced per speaker



Connectors : Waterproof AWX-5 connector
Crossover Frequency : 2.4 kHz
Crossover Type : Passive built-in
Drivers HF : 1”
Drivers LF : 8”
Frequency Range (-10 dB) : 50 Hz - 20 kHz
Frequency Response (± 3 dB) : 60 Hz - 17 kHz
Impedance : 16 Ω
Ingress Protection rating : IP55
Line Transformer Tappings 1 : 83 Ω - 100 V / Not used - 70 V / 60 W
Line Transformer Tappings 2 : 167 Ω - 100 V / 60 W - 70 V / 30 W
Line Transformer Tappings 3 : 333 Ω - 100 V / 30 W - 70 V / 15 W
Max. Power : 140 W
Sensitivity (1W/1m) : 89 dB
Sound Pressure (Max. W/1m) @ 100 V : 106 dB
Speaker type : 2-way
RMS Power : 70 W
Dispersion Horizontal : 110°
Dispersion Vertical : 110°
Sound Pressure (Max. W/1m) @ 16 Ω : 108 dB

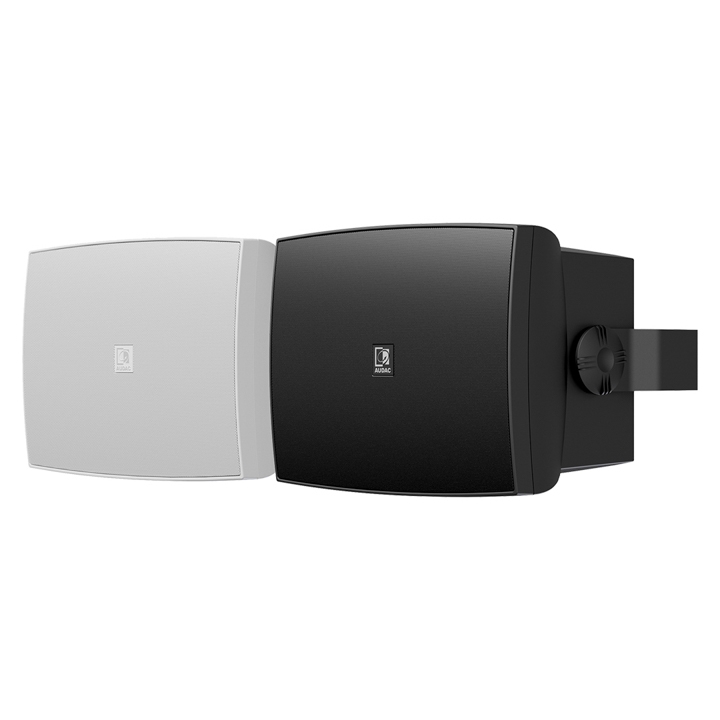

Colours : Black (RAL9005) (WX802MK2/OB)
Colours : White (RAL9003) (WX802MK2/OW)
Construction : ABS
Dimensions : 10.62" x 14.17" x 8.46" (270 x 360 x 215 mm) (W x H x D)
Front finish : Aluminium grill
Mounting & handling : Mounting bracket
Operating temperature : -13 °F ~ 158 °F (-25 °C ~ 70 °C)
Weight : 16.5 lbs (7.5 kg)
Accessories Included : 5-pin connection cable (70 cm)
Accessories Included : Mounting bracket
Accessories Optional : AU570120005 - 5-pin cable 0.5 m
Accessories Optional : AU570120025 - 5-pin cable 2.5 m
Accessories Optional : AU570120050 - 5-pin cable 5 m

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
