ATEO4 Wall speaker with CleverMount™ 4"

MSRP: POA
AUATEO4MK2/B

Wall speaker with CleverMount™ 4"

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants, or even clubs.

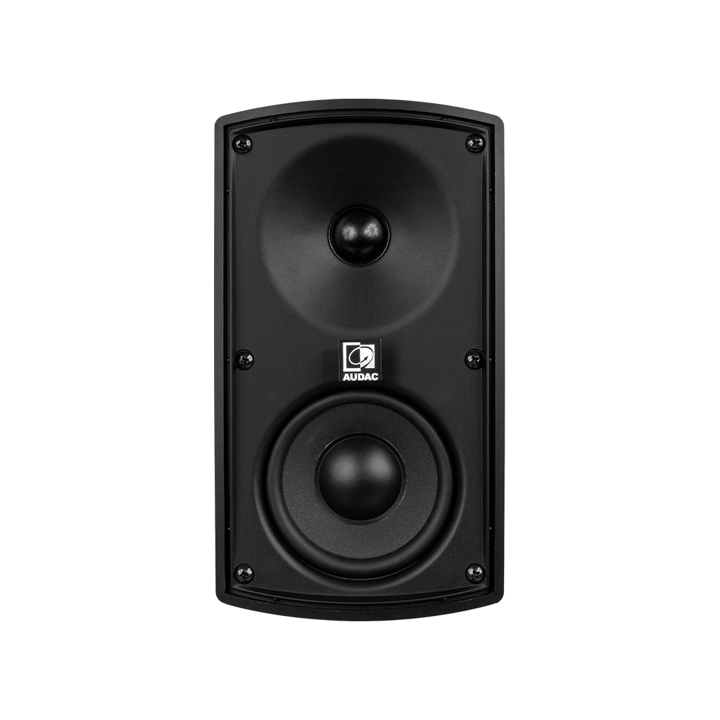

The ATEO4 is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABS housing that is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. ATEO4MK2 is an improved version of its predecessor where we have been able to improve the sound quality by implementing a new crossover. With its balanced 1” dome tweeter and 4” mid/low-frequency driver the ATEO4MK2 ensures an ultra-flat frequency response and forms the ideal solution for fixed install indoor applications.

The mounting and connection of the loudspeaker simply happen by attaching the included metal wall plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no time.

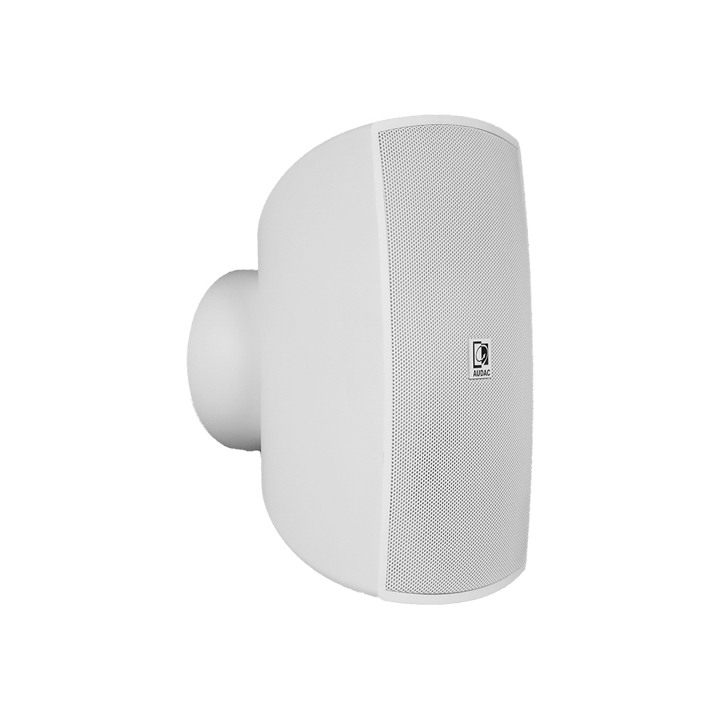

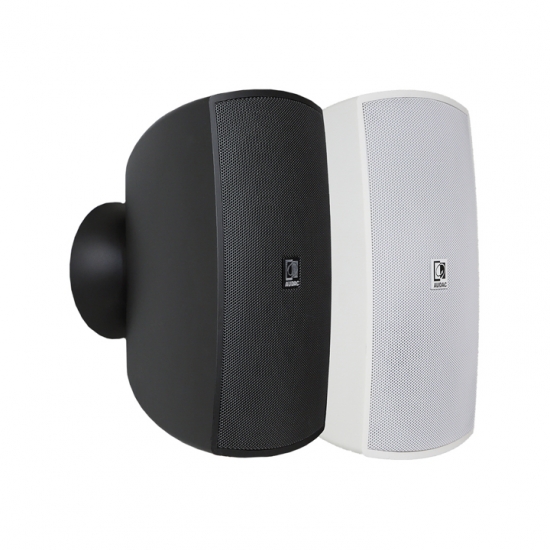

Even if you’re working all alone while people are watching your fingers or when installing the speakers up high when you’re standing on a ladder. All ATEO series speakers are available in black (/B) or white (/W).

Variant MSRP
Black version - 8Ω and 100V AUATEO4MK2/B POA
White version - 8Ω and 100V AUATEO4MK2/W POA
Black version - 16Ω AUATEO4D-B POA
White version - 16Ω AUATEO4D-W POA
Would you like a Demo?

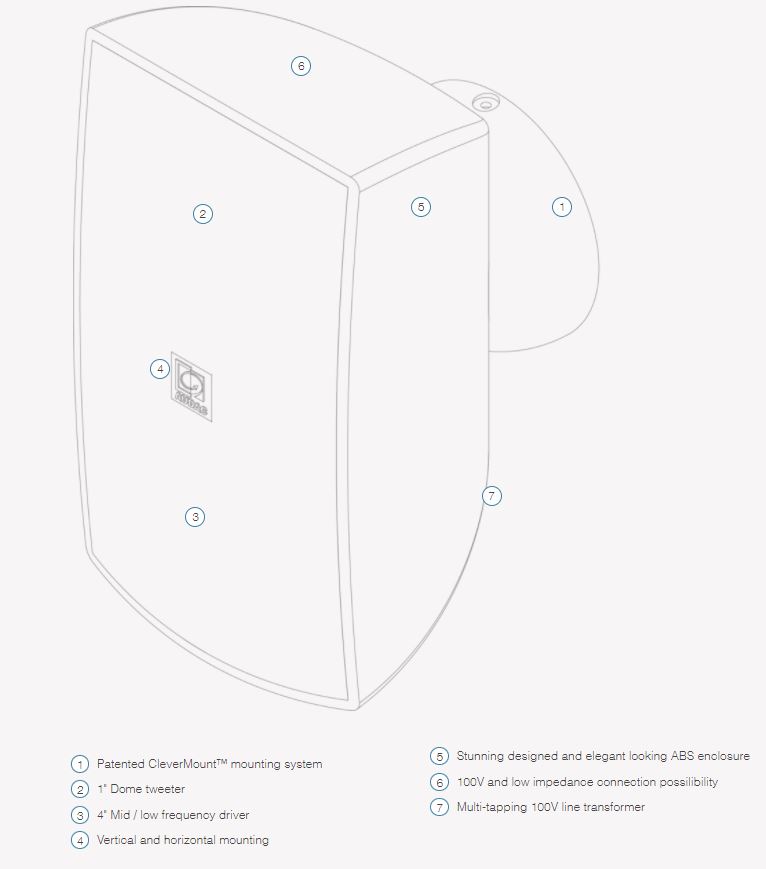

  • Ultra-flat frequency response
  • Stunning designed and elegant looking ABS enclosure
  • Patented CleverMount™ mounting system
  • Multi-tapping 100V line transformer
  • 100V and low impedance connection possibility
  • Vertical and horizontal mounting (rotatable logo)
  • 1" Dome tweeter
  • 4" Low-frequency loudspeaker

8 Ohm 16 Ohm 100V

Note: Sold in pairs, priced per speaker



Speaker type : Full range
Max. Power : 70 W
RMS Power : 35 W
Sensitivity (1W/1m) : 86 dB
Frequency Response (± 3 dB) : 100 Hz - 20 kHz
Frequency Range (-10 dB) : 65 Hz - 20 kHz
Dispersion Horizontal : 130°
Dispersion Vertical : 130°
Incline angle Left : 30°
Incline angle Right : 30°
Incline angle Bottom : 30°
Incline angle Top :
Line Transformer Tappings 1 : 208 Ω - 100 V / Not used - 70 V / 24 W
Line Transformer Tappings 2 : 417 Ω - 100 V / 24 W - 70 V / 12 W
Line Transformer Tappings 3 : 833 Ω - 100 V / 12 W - 70 V / 6 W
Line Transformer Tappings 4 : 1667 Ω - 100 V / 6 W - 70 V / 3 W
Sound Pressure (Max. W/1m) @ 8 Ω : 101 dB
Sound Pressure (Max. W/1m) @ 100 V : 100 dB
Connectors : 6-pin Custom Terminal Block
Drivers : 1” Dome tweeter
Drivers : 4” MF / LF Woofer
Impedance : 8 Ω (ATEO4)
Impedance : 16 Ω (ATEO4D)
Dimensions : 5.35" x 9.6" x 6.02" (136 x 244 x 153 mm) (W x H x D)
Weight : 4.5 lbs (2.050 kg)
Mounting : Clevermount™
Construction : ABS
Colours : Black (RAL9005) (ATEO4/B, ATEO4D/B)
Front finish : Steel grill
Colours : White (RAL9003) (ATEO4/W, ATEO4D/W)
Operating temperature : -4 °F ~ 140 °F (-20 °C ~ 60 °C)
Accessories Included : Allen-key wrench

FREE INCLINABLE IN EVERY DIRECTION

Thanks to the Clevermount™ innovation, the loudspeaker can be placed in any horizontal or vertical direction with a simple Allen key twist. This makes the loudspeaker step-less inclinable in every direction.

CEILING MOUNT

The optional WMA incline bracket adds an extra 30° angle to the already existing incline angle of ATEO speakers. This opens the possibility to place the speaker horizontally or vertically at an angle up to 60° and ensure a perfect sound experience.

WALL MOUNT

The connection of the loudspeaker simply happens by attaching the included wall plate to your desired location and wiring the cables to this wall plate. The Clevermount™ innovation ensures the installer has both hands free to slide the loudspeaker cabinet into the bracket.


CLEVERMOUNT™

The only loudspeaker mount where functionality and elegance truly meet.

Loudspeakers that are equipped with the CleverMount™ technology have the advantage of making the speaker cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. The safe installation of the loudspeaker is acquired thanks to the separate bracket base. This base can easily be installed and connected without the help of a second person. Once the bracket base is firmly mounted to a wall, the loudspeaker cables can be connected to its desired breakout points. The loudspeaker can now slide onto the bracket base with the use of only one hand. Thanks to this system, the loudspeaker placement and connection can be made before the final delivery of the project.

CleverMount™ also enables you to angle the loudspeaker in both vertical and horizontal directions from the front side so that the perfect angle is achieved. This way, it’s really child’s play to install a large umber of loudspeakers in no time.
