CHA530 2-Way horn loudspeaker 5"

MSRP: POA
AUCHA530-

2-Way horn loudspeaker 5"

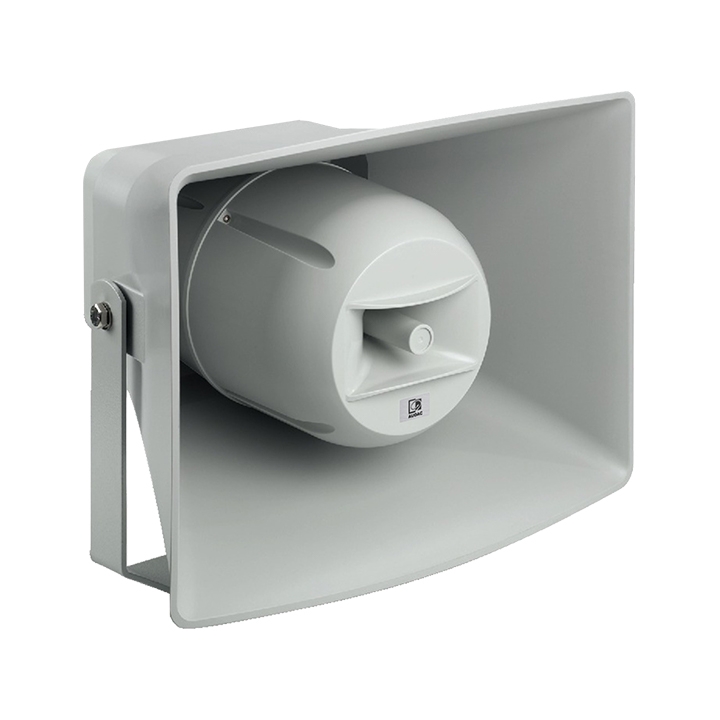

The CHA530 is a 2-way horn loaded loudspeaker which is designed for long-throw, full range reproduction of music and speech in a wide variety of indoor and outdoor applications.

The construction is composed of a 1" high frequency compression driver and a 5" mid/low frequency driver. The selection of high-quality components and acoustic engineering craftmanship makes the CHA530 significantly better performing than other traditional horn speakers. A smooth frequency response and high efficiency ensures an extraordinary clarity of speech and extended frequency response for music.

It features an RMS power handling of 30 Watt and a max power handling of 60 Watt. The sensitivity measures 98 dB while a maximum continuous SPL of 113 dB can be achieved. The frequency response (±3 dB) starts from 110 Hz up to 16 kHz.

A multi-tapping line transformer allows the speaker to be used in 100 Volt and 70 Volt public address systems. It is connected using a waterproof rotatable AWX-5 connector whereby the desired power tap is selected depending on the rotation of the connector. Various power tappings for 30 Watt, 15 Watt, 7.5 Watt and 3.75 Watt are available.

The enclosure is constructed using high quality UV and impact resistant ABS materials and an included stainless steel mounting bracket allows secure mounting and tilting for perfect directional placement. This makes it comply with IP66 ingress protection requirements, resulting in a weatherproof solution for permanent outdoor installation.

Connection of the loudspeaker is done using a screw terminal block connector located in a waterproof connection box on the rear of the speaker.

Would you like a Demo?
  • 1" HF Horn tweeter
  • 5" Low-frequency loudspeaker
  • Multi-tapping 100V line transformer
  • IP66 Ingress protection
  • 30 Watt RMS power
Waterproof Surface Mount Outdoor Indoor 100 V
Speaker type : 2-way horn speaker
Max. Power : 60 W
RMS Power : 30 W
Line Transformer Tappings 1 : 30 W / 333 Ω
Line Transformer Tappings 2 : 15 W / 667 Ω
Line Transformer Tappings 3 : 7.5 W / 1330 Ω
Line Transformer Tappings 4 : 3.75 W / 2660 Ω
Sensitivity (1W/1m) : 98 dB
Frequency Response (± 3 dB) : 110 Hz - 16 kHz
Crossover Type : Passive built-in
Dispersion Horizontal : 110°
Dispersion Vertical : 60°
Ingress Protection rating : IP66
Drivers : 5” MF / LF Woofer
Drivers HF : 1" HF Horn tweeter
Sound Pressure (Max. W/1m) @ 100 V : 113 dB
Connection : AWX5™ waterproof
Dimensions : 310 x 215 x 330 mm (W x H x D)
Weight : 4.7 kg
Construction : Impact & UV resistant ABS
Colours : Light grey (RAL7035)
Mounting & handling : Powder coated steel
Accessories Included : Mounting bracket

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details www.audac.eu For the most up to date Software and Firmware visit www.audac.eu.
