HPR512/B

MSRP: POA
CYHPR512-B

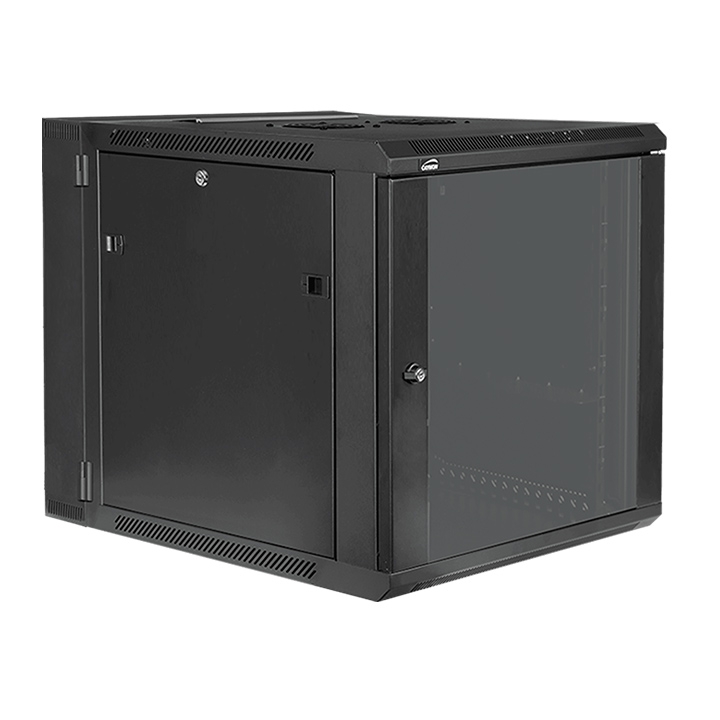

Double section 19” wall mountable rack - 12 units - 550mm depth

The HPR512 is a professional 19” double section wall rack cabinet which complies with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. It ensures maximum installation, connectivity, and maintenance ease storing up to 12 units of 19” equipment. The solid construction made of a 1.5 mm thick steel frame and 1.2 mm thick plates is finished with a black (RAL9004) fine-structured powder coating.

It provides a stable and secure installation while the double section structure allows easy access to the rear side of the equipment. The tempered smokey glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only.

Other present features are removable sides and in depth adjustable 19” profiles with unit measurement indicators and punched square holes for use with snap-in cage nuts.

Would you like a Demo?

Features:

  • Stores up to 12 units of 19” Equipment
  • Integrated ventilation grid on top
  • in depth adjustable 19” profiles (max 510 mm)
  • Loading capacity of 30 kg
  • Tempered glass door with keylock
  • Double section allowing easy access to the rear side of the equipment
  • Double lock connecting the front and rear section
  • Reversible door position
Product Features
Dimensions 23.62" x 25.12"" x 21.65" (600 x 638 x 550 mm) (W x H x D)
Unit height 12 RU
Max. usable depth 20.09" (510 mm)
Max. load 66.14 lbs (30 kg)
Colors Black (RAL9004)
Weight 67.24 lbs (30.5 kg)
Accessories Included 1 x WPR45LR
    2 x key for front door
    4 x Key for sidepanel lock
    10 x Cage nuts + screws
    1 x Allen key
  Optional WPR45FS - Fixed shelf
    WPR45LR - L-Rail pair
    WPR10RF - Roof fan 120x120 mm
    SPR10DC - Dust cover brush
    KM600 - M6 Cage nuts
    KS600 - M6 x 16 mm bolt DIN7985 Black

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
