IMEO2 Professional  3-Way Soundbar

MSRP: POA
AUIMEO2_B

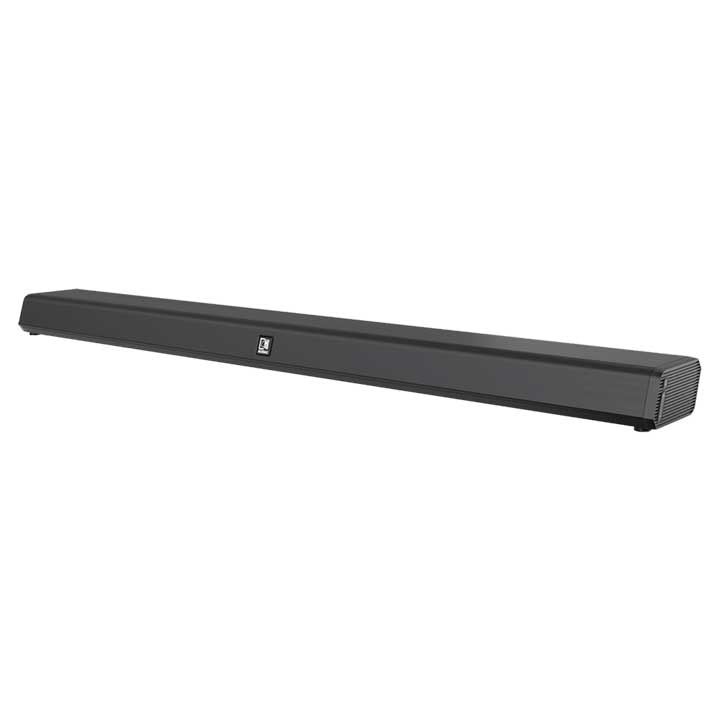

IMEO2 Professional  3-Way Soundbar

The IMEO2 Soundbar features a slim and elegant design and includes all required functions for the expansion of any audiovisual system with an impressive sound while having minimal hassle for installation. It’s perfectly suited for installations such as classrooms, presentation rooms, or meeting rooms where it can be used and installed in combination with screens, smartboards, or projectors.

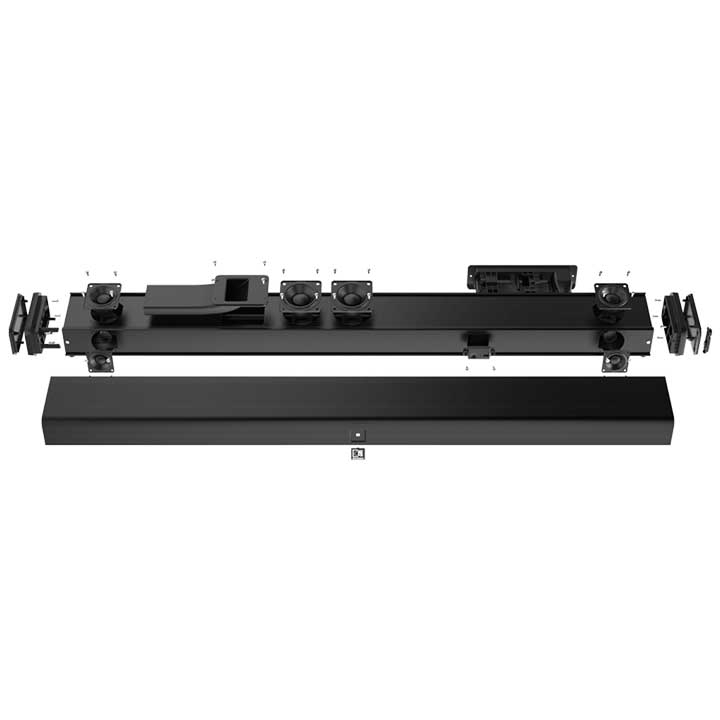

The acoustics originate from a 3-way speaker construction, composed of two 1.5” high-frequency drivers, two 2" mid-frequency drivers, and a low-frequency section with two 2.5” low-frequency drivers with an RMS rating. The power handling reaches an overall level of 60 Watt RMS. The Class-D amplifier with integrated WaveSelect DSP processing and transmission line configuration for the low-frequency drivers offers a crystal-clear sound reproduction with a stunning low-frequency response. Selectable DSP presets offer optimization for applications such as presentations, music playback, or videos.

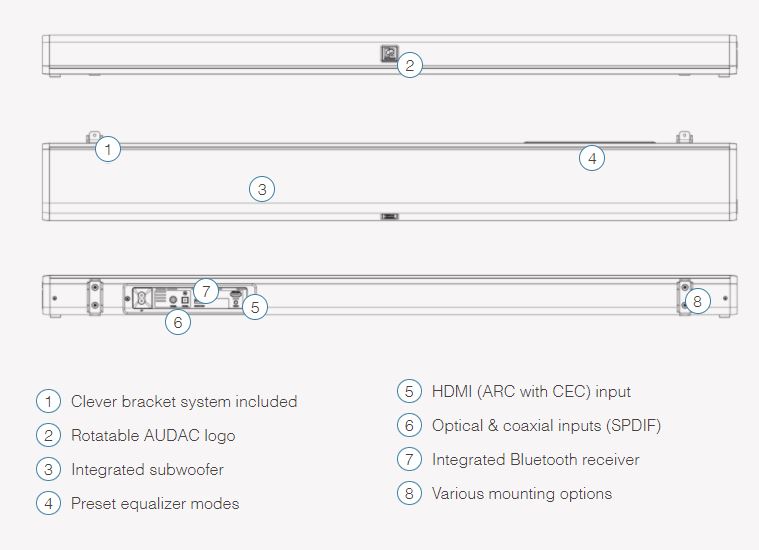

Various input possibilities such as an unbalanced line input, HDMI (ARC) input, or SPDIF (optical and coaxial) allow compatibility with a variety of input sources, while Bluetooth allows wireless connections with portable devices. In installations with multiple IMEO's installed throughout the area, it can be desirable to assign custom Bluetooth IDs to distinguish them from each other. Typical applications are hotels, conference rooms, schools, ... The hotel mode function in the firmware offers a solution for these applications. An additional function is also implemented to define a specific wake-up source, allowing the IMEO2 to always turn on with the same input source selected, no matter which input source was selected before power-down.

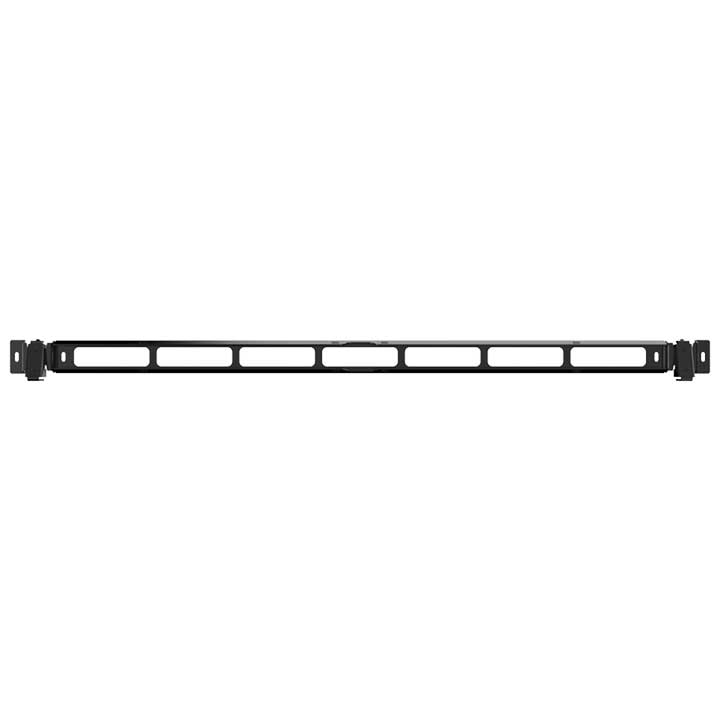

An included IR remote control allows input selection, volume control, and EQ preset selection while the unique and clever wall mounting bracket allows convenient mounting to walls on any kind of surface or location with optimal guiding and coverage for the cables. The auto standby function ensures that the IMEO is automatically put in energy-saving mode after 15 minutes without input. This way, no unnecessary energy is lost, while the IMEO remains ready to play at any moment.

Would you like a Demo?



Speech Level 2 Music Level 4 Surface Mount  Indoor USB



IMEO2 PROFESSIONAL 3-WAY SOUNDBAR



Sound Pressure (Max. W/1m) 90 dB
THD+N (@1 kHz) 1%
Bluetooth Specifications V4.2
Bluetooth Specifications Class 2 Output Power
Control Remote Control (IR)

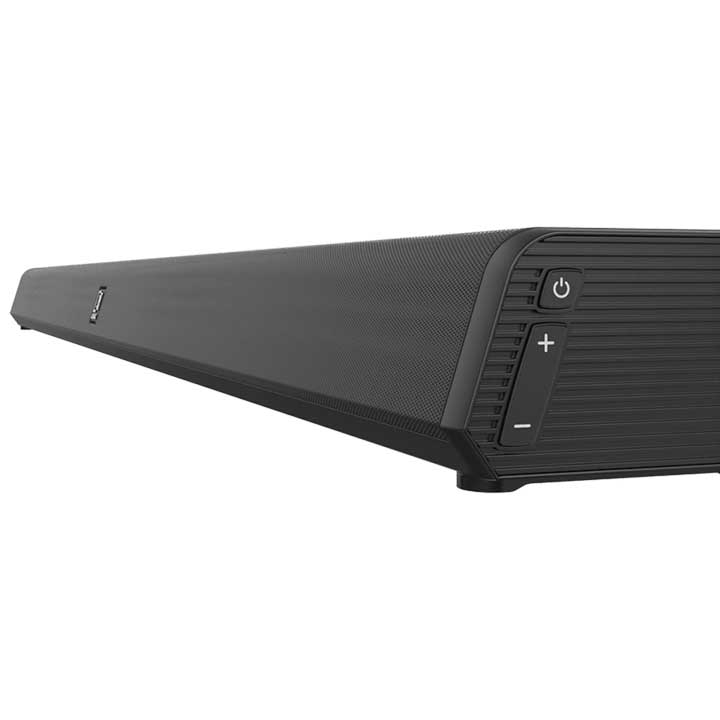

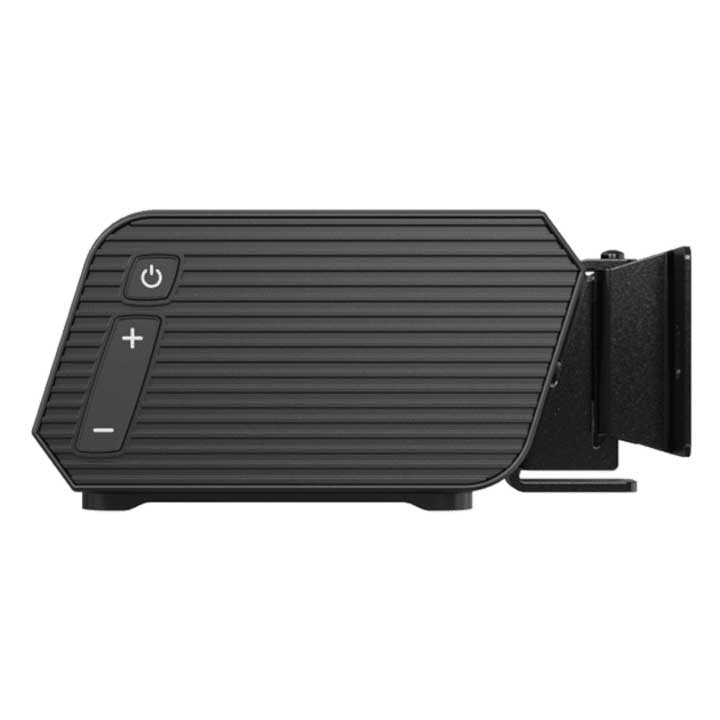

Control Selection / Volume Switches (Side Panel)
Outputs Power 2 x 15 W
Outputs Power 1 x 30 W
Frequency Response (± 3 dB) 40 Hz - 20 kHz
Drivers (HF) 2 x 1.5"
Drivers (MF) 2 x 2"
Drivers (LF) 2 x 2.5"
Power Consumption 30 W
Power Source 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Connector 3.5 mm Jack (Unbalanced)
Inputs Connector 2 Coaxial SP/DIF digital input
Inputs Connector 3 HDMI ARC
Inputs Connector 4 USB Playback (MP3, FLAC, WAV)
Inputs Connector 5  Optical & Coaxial Inputs (SPDIF)
Power Consumption Standby 0.5 W



Weight 79 lbs (3.6 kg)
Dimensions (Excl. Bracket) 39.37" x 2.39" x 4.38" (1000 x 60.8 x 111.3 mm) (W x H x D) (Excl.bracket)
Dimensions (Incl. Bracket) 39.37" x 2.39" x 5.31" (1000 x 60.8 x 134.8 mm) (W x H x D) (Excl.bracket)
Colors Black
Mounting & Handling  Mounting Wall Bracket
Front Finish Steel Grille
Construction ABS
Accessories Included Power Cable
Wall Mounting Bracket
Remote Control (IR)
3.5 mm Jack Audio Cable (1 Meter)
3.5 mm Jack Audio Pigtail (0.15 Meter)
90° HDMI angle adapter

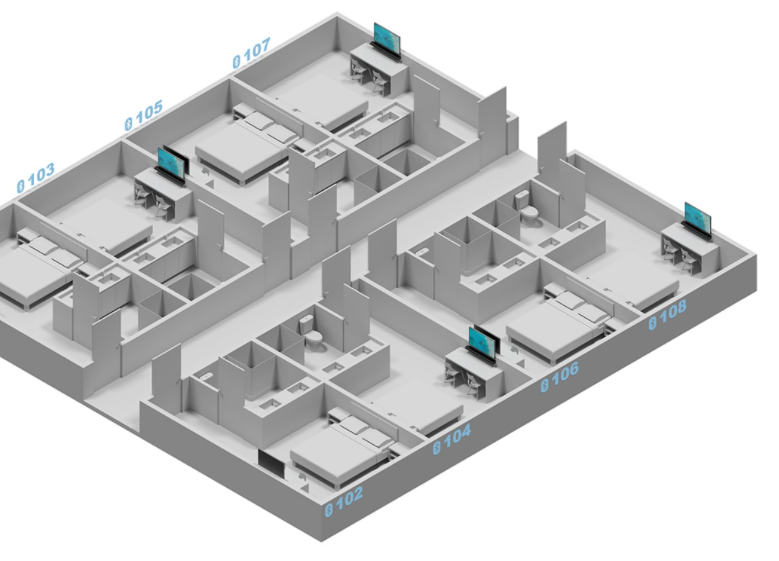

For installations with multiple IMEO’s throughout the building, it can be very useful to assign custom Bluetooth ID’s to distinguish them from each other. This function allows you to name your IMEO after the hotel room the soundbar has been installed in.

Hotel Mode

Your preset for the best possible sound

Our active loudspeaker systems with WaveSelect™ technology are equipped with a powerful internal Digital Signal Processor which gives you the option to choose from a number of programmed presets. Like this, you can always find a preset that best suits your needs. Use WaveSelect­™ to optimize your speaker for the task at hand.

Waveselect

NEUTRAL

The neutral preset brings the basis voicing of the loudspeaker. In an ideal acoustical environment, this setting delivers the audio “as the artist intended”.

MUSIC

To get the most out of your music, the active loudspeaker is suited with a preset that provides a clear reproduction of your music files with powerful bass.

SPEECH

A perfect speech intelligibility is achieved with the last preset. By activating this setting, the speaker will boost all the frequencies in the vocal range for a clear and delightful amplification of your message.

It’s perfectly suited for installations such as classrooms, presentation rooms or meeting rooms where it can be used and installed in combination with screens, smartboards, or projectors.

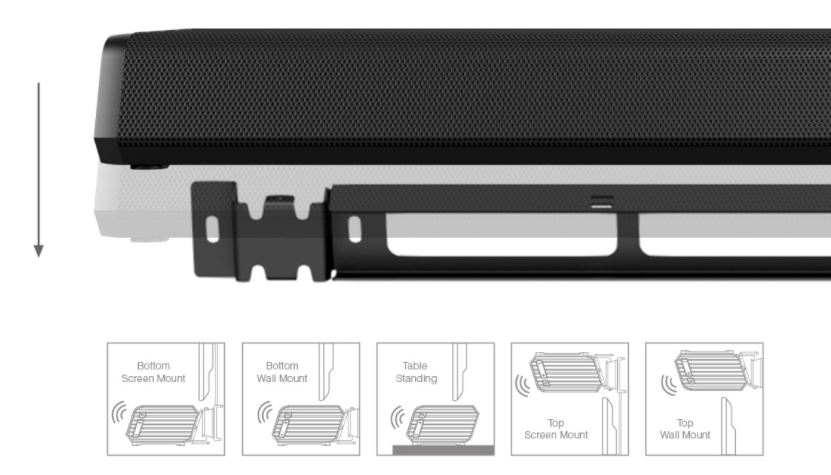

True Versatile Mounting

Discover the MBK440

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
