SPR842GG

MSRP: POA
CYSPR842GG

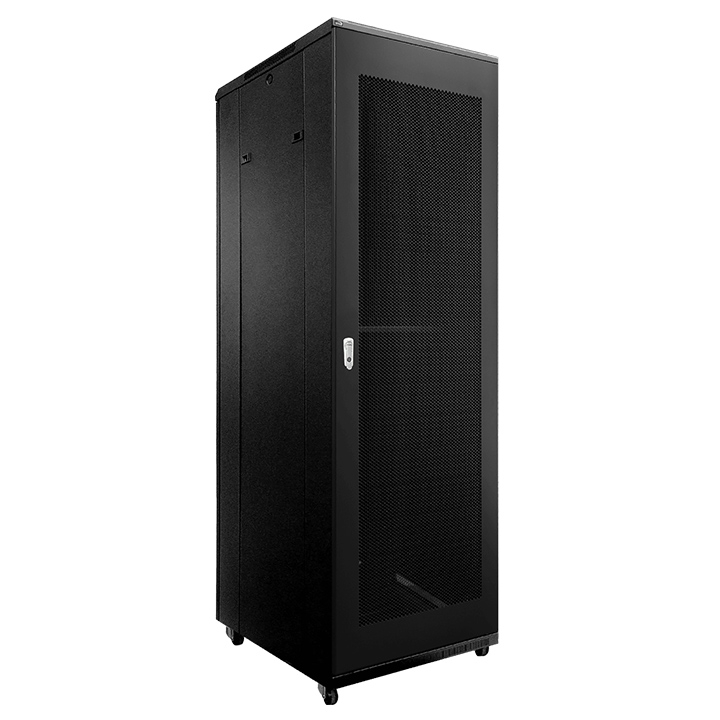

19" rack cabinet - 42 units - 600mm W x 800mm D - Grill front & rear door

The SPR842GG is a professional 19” rack compliant with the ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1.2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR842GG comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19" profiles provide great flexibility for installing equipment depending on its depth.

The SPR842GG comes with 2 perforated steel grill doors (front and rear). The mesh perforation with a hexagonal pattern provides optimal airflow through the cabinet. The swing handle with cylinder lock safely locks the equipment inside.

Would you like a Demo?

Features:

  • Stores up to 42 units of 19” Equipment
  • Integrated ventilation grid on top
  • 50 mm Wheels + leveling feet included
  • Removable sides for easy installation & cabling
  • Punched square holes for use with snap-in cage nuts
  • Front and rear in depth adjustable 19” profiles (max 740 mm)
  • Reversible door position

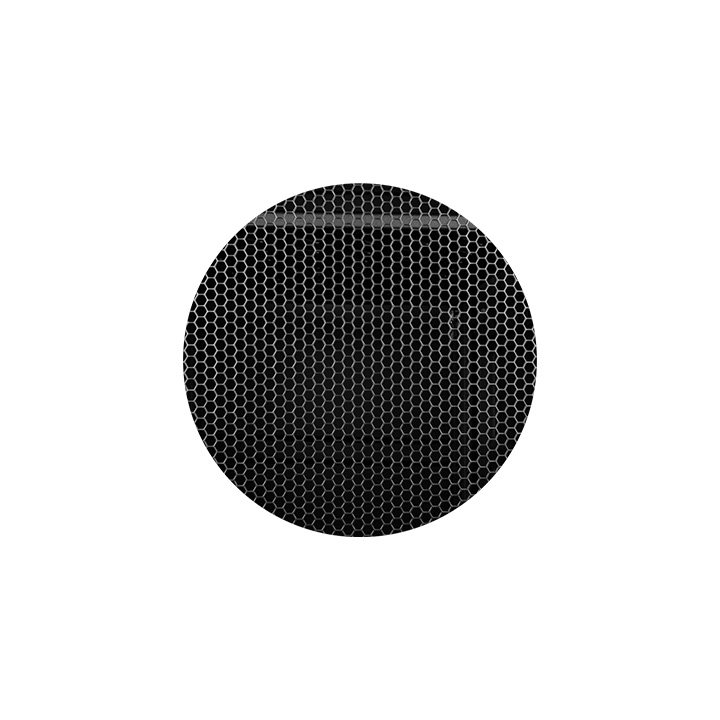

  • Mesh perforation with hexagonal pattern

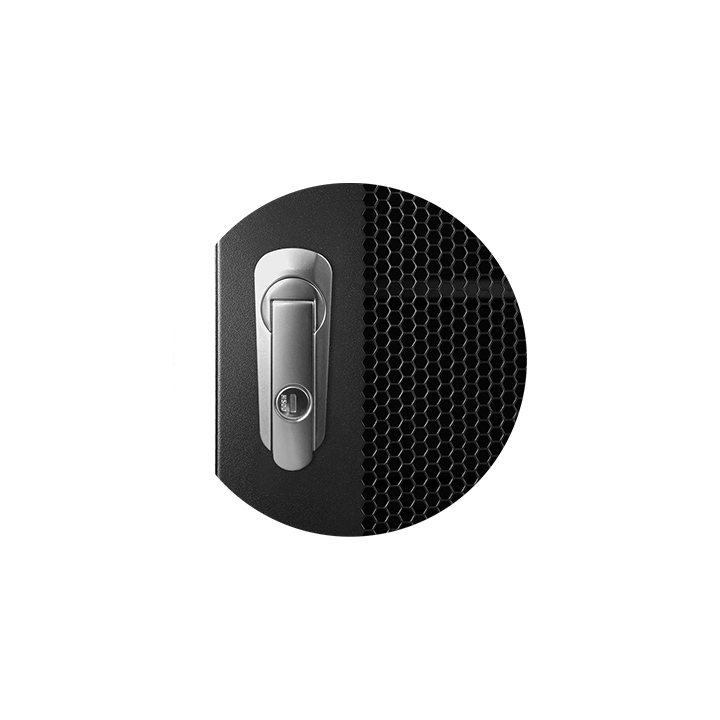

  • Swing handle with cylinder lock
Product Features
Unit height 42 RU
Weight 220.46 lbs (100 kg)
Dimensions 23.62" x 78.15" (63.39") x 80.91" (600 x 1985 (2055) x 800 mm) (W x H (incl. feet) x D)
Max. usable depth 29.13" (740 mm)
Wheel Diameter 1.97" (50 mm)
Colors Black (RAL9004)
Accessories Included 4 x Key for sidepanel lock
    1 x Allen key
    4 x Levelling feet
    4 x Key for front/back door
    20 x KS600
    20 x KM600
  Optional KS600 - M6 x 16 mm bolt DIN7985 Black
    KM600 - M6 Cage nuts
    SPR10CS - Rack interconnection slot
    SPR80LR - L-Rail pair
    SPR80FS - Fixed shelf
    SPR80SS - Sliding shelf
    SPR80PT - Rack plinth
    SPR80RF - Cooling roof fan unit (230V)
Static load capacity (adjustable feet) 1,763.7 lbs (800 kg)
Dynamic load capacity (transport castors) 881.849 lbs (400 kg)

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
