A.C. Pro Media - Architainment Media Solutions | VEXO115A 15" high performance 2-way active loudspeaker
Home Category Brands AUDAC VEXO115A 15" high performance 2-way active loudspeaker

VEXO115A 15" high performance 2-way active loudspeaker

MSRP: POA
AUVEXO115AB

15" high performance 2-way active loudspeaker

The VEXO series are compact high-performance 2-way active loudspeakers and come in 3 different models, each of them with different sizes and performances meeting the requirements of every application. The low-frequency transducer, which is made out of high-quality materials, is combined with a 1.7” voice coil compression driver, enabling high sound pressure levels and a tight driver response with a rotatable 90° x 70° coverage pattern for a wide range of applications.

Thanks to the unique driver composition, the VEXO115A delivers a clear and natural sound with an RMS power of 500 Watts and a maximum power of 2000 Watt. The frequency response (±3dB) starts from 50Hz up to 20 kHz and the sensitivity (1W/1m) reaches 100dB while a maximum continuous sound pressure level from 127dB can be achieved.

When not in use, the active versions of the VEXO series devices automatically go into an energy-saving standby mode. This means that active versions can also be used in fixed installations, as there is no need to physically shut them down after each use.

The construction of the cabinets is made of 12mm plywood with a polyurethane coating, making them resistant to any impact. The front side of the cabinet is finished with a powder-coated steel grill with acoustical foam. A recessed carry handle on the rear side makes carrying easy. Positioning and suspension of the speaker are easily achieved by using the standard 35 mm pole adapter on the bottom and the M10 rigging points. Two speaker connectors provide reliable connections with easy link-through to cabinets.

The optional Clever U bracket allows mounting the high power 2-way cabinet both horizontally and vertically. An inclination of -90° to +35° ensures an optimal positioning. The optional MBK bracket even allows mounting the VEXO series to the ceiling which gives the opportunity to install the loudspeaker cleanly in any environment.

By installing the optional ANI44XT Dante™ audio network interface in the active loudspeaker, the VEXO series can be integrated into any Dante-enabled AV network and transfer digital audio with any compatible solution on the market.

When the ANI44XT is installed the VEXO series will be compatible with AUDAC Touch™ and TouchLink™. Used for creating virtual zones by linking multiple compatible devices with each other. In AUDAC Touch™ you can select multiple amplifier channels that should react to the user as one zone.

The VEXO115A features the unique WaveDynamics™ innovation. Due to this DSP processor, the audio control and processing technology enable any user to effortlessly control the most advanced acoustic configurations.

The integrated DSP allows pre-sets for full-range, satellite, and custom configurations and can be loaded via the USB slot on the back of the device. The AUDAC Touch™ application allows to equalize and create personalized presets and control the equipped VEXO loudspeakers. When installing the ANI44XT, all personalized presets and settings can be adjusted from anywhere at any time.

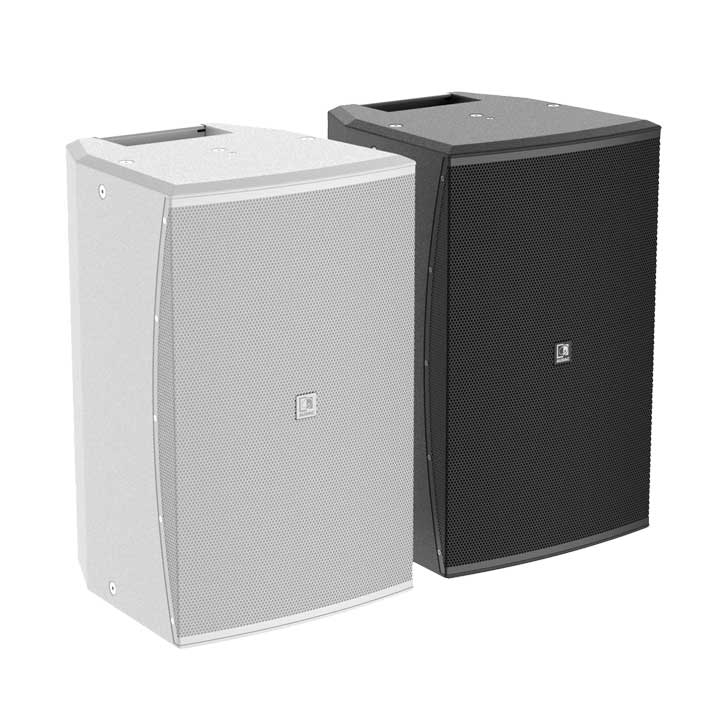

Variant MSRP
Black version AUVEXO115AB POA

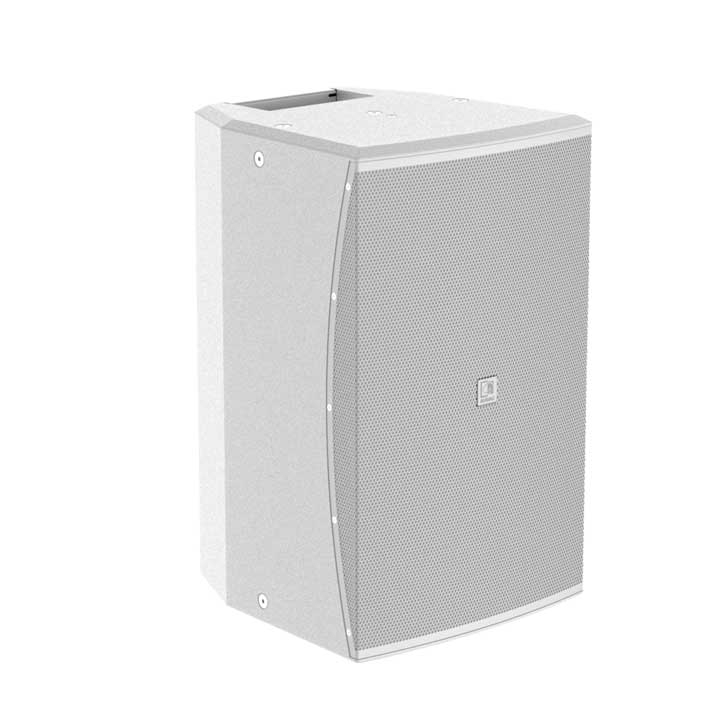

White version AUVEXO115AW POA
Would you like a Demo?

Highlights

  • Compatible with AUDAC Touch™
  • Compatible with TouchLink™
  • Dante™ expansion port
  • Advanced DSP and loudspeaker management
  • DuraCoat™ texture paintwork
  • High sound pressure levels with tight driver response
  • Ball impact resistance
  • Horizontal and vertical mounting
  • User-friendly mounting
  • -90° to +35° inclination
  • WaveDynamics™ supported

Applications

  • Education
  • Sport facilities
  • Clubs
  • Concert venues

8 ohm

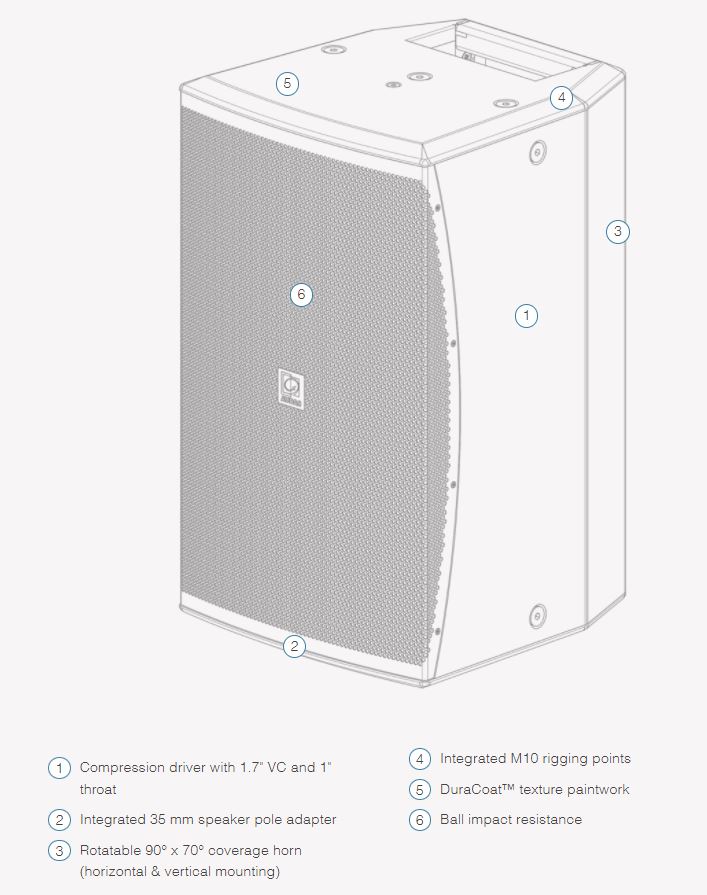

VEXO115A Drawing

Speaker type 2-way
Max. Power 2000 W
RMS Power 500 W
Impedance 8 Ω
Sensitivity (1W/1m) 100 dB
Sound Pressure (Max. W/1m) 127 dB
Connectors 3-pin Euro Terminal Block (Pitch - 3.81 mm)
3-Pin terminal block (linkthrough)
XLR male (linkthrough)
Inputs USB Port
RJ45 (Ethernet)
Frequency Response (± 3 dB) 50 Hz - 20 kHz
Crossover Type Active
Dispersion Horizontal: 90°
Vertical: 70°
Drivers HF: Compression driver with 1.7" VC and 1" throat
LF: 15" (3" VC)
Connectors Remote Control: RJ45
Input: 2 x Combo XLR / 6.3 mm jack
Power Consumption Standby: 3.2 W
Idle: 22.5 W
Dimensions 16.88" x 27.16" x 17.71" (429 x 690 x 450 mm) (W x H x D)
Weight 62.39 lbs (28.3 kg)
Construction 12 mm high-quality plywood
Finish - Cabinet Polyurethane coating
Front finish Powder-coated steel grill with acoustical foam
Mounting & handling Rigging points: 10 x M10
Stand fitting: 35 mm pole adapter on the bottom
Carry handles: On top
Powerdrive mount Powerdrive type 100 (127 x 70 mm)
Color Black or White
Accessories Optional: ANI44XT - Dante™ audio network interface

Maintain the same stunning performance under all conditions

This textured paintwork provides a weatherproof and scratch-resistant coating. It is specially designed for outdoor applications. Thanks to its UV resistance, the cabinets will not lose their color or paint strength after years of outdoor use.

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
