WP210 Universal wall panel - Microphone & line input - 80 x 80 mm (3.14" x 3.14")
MSRP:
POA
WP210B
Universal wall panel - Microphone & line input - 80 x 80 mm (3.14" x 3.14")

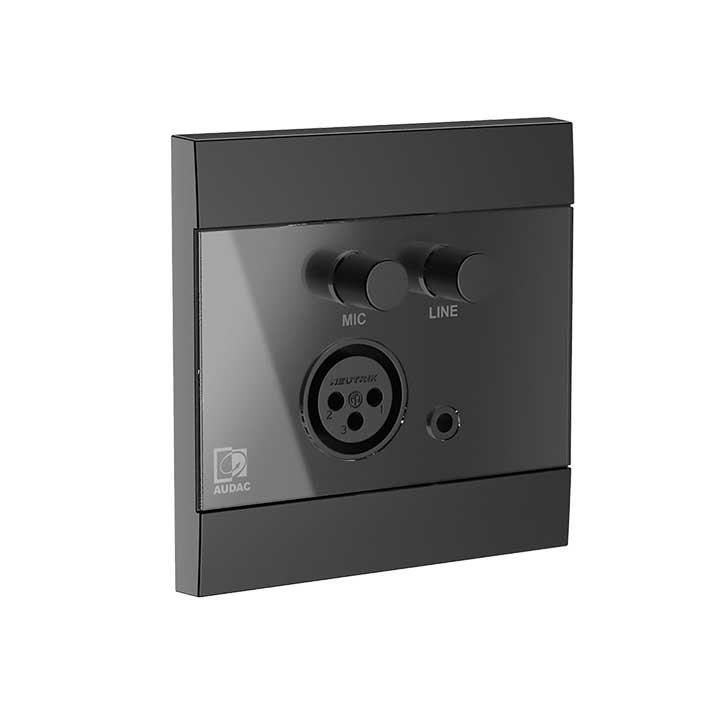

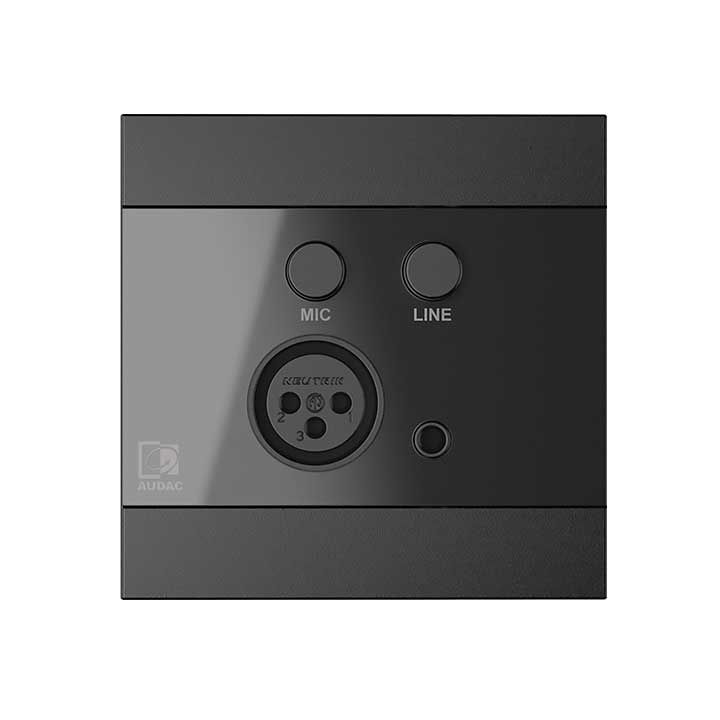

The WP210 is a remote wall mixer that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523, and more). It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.

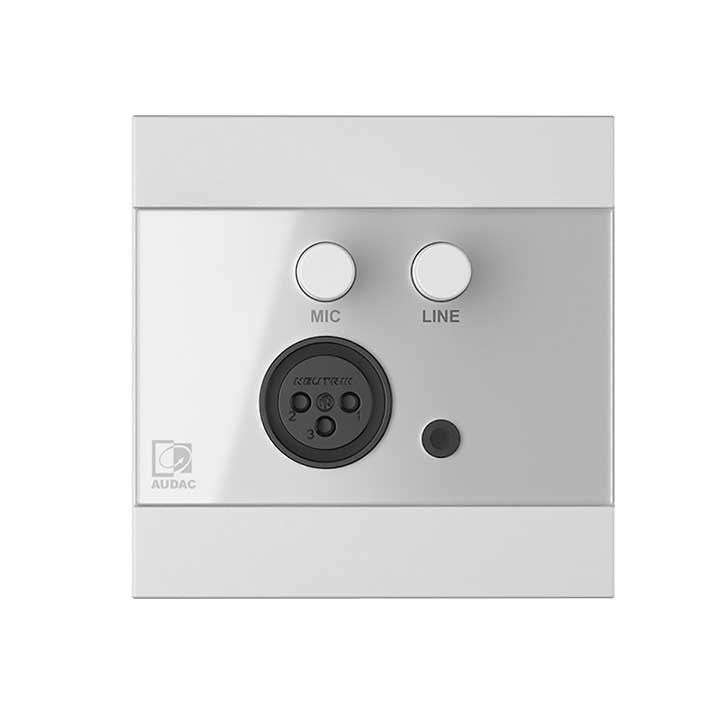

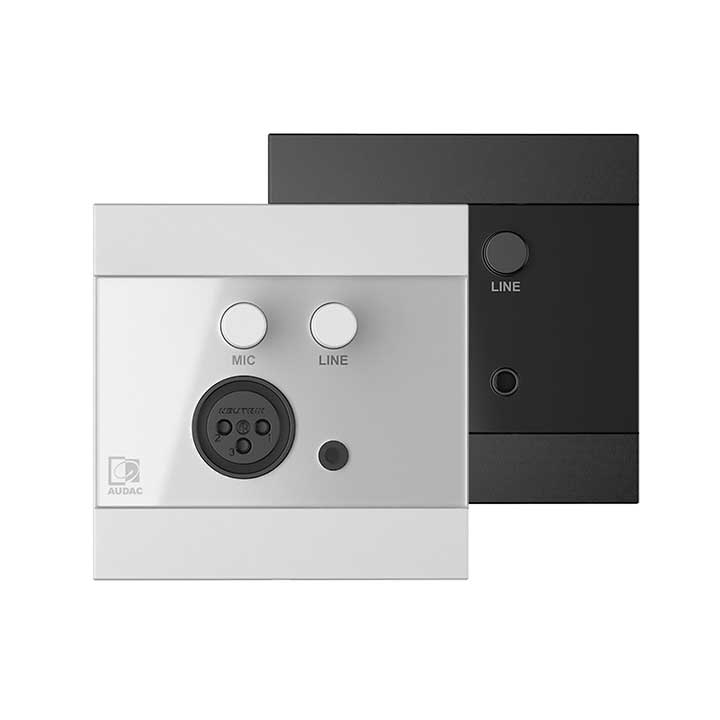

The WP210 is available in 2 colors (WP210/W - White - RAL9003 & WP210/B - Black - RAL9005) and is compatible with most standard EU (80x80 mm) (3.14" x 3.14") style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment
Highlights
- Elegant design to blend in with any environment
- Compatible with EU (80x80 mm) installation materials
- Signal transmission over twisted pair (CAT5E) or better cabling
- Signal transmission insensitive for interference and noise
| Outputs | Level | +12 dB | |
| 0 dB | |||
| Inputs | Wall Panel | Type | 3.5 mm jack stereo line input connection |
| XLR microphone input connection | |||

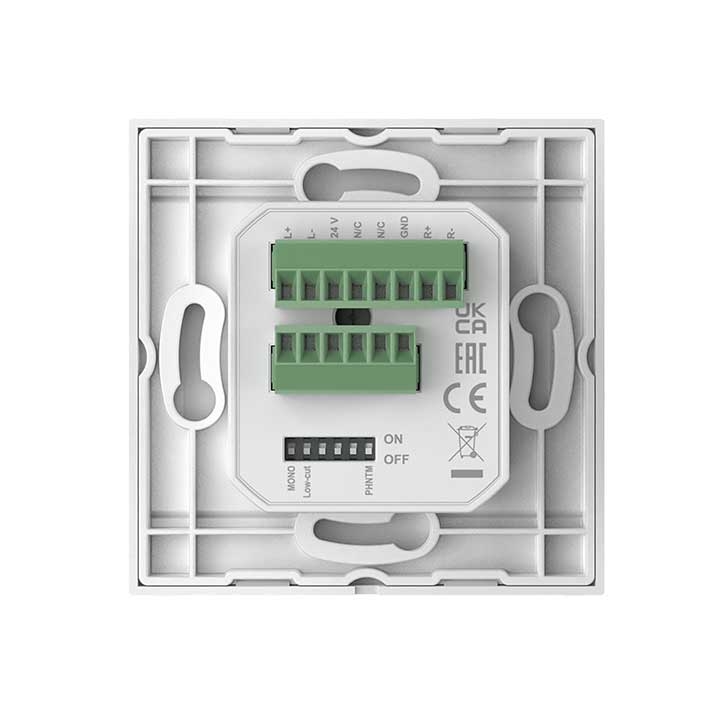

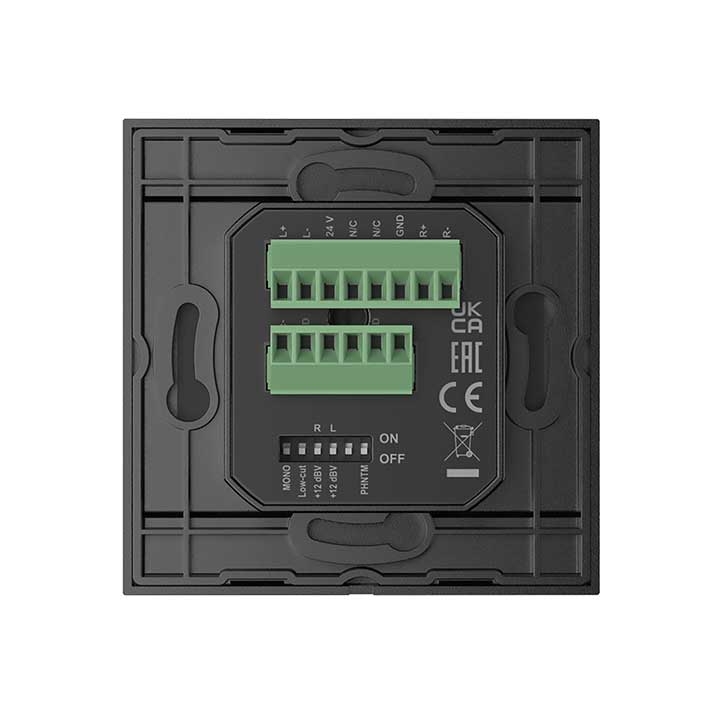

| Mic & Line inputs on rear for permanent connections | |||
| Connection | 3.5 mm jack input (Stereo line input) | ||
| Female XLR input connector (Microphone input) | |||
| 6-pin terminal block (3.81 mm pitch) input connection on rear (duplicated line & mic inputs) | |||
| 8-pin terminal block (3.81 mm pitch) output connection | |||
| Control | Individual input level control for Mic & Line | ||
| Phantom power (DIP switch on rear) | |||
| Low-cut (Mic) enable / disable (DIP switch on rear) | |||
| Mono / Stereo (DIP switch on rear) | |||
| Dimensions | 80 x 80 mm (3.14" x 3.14") (W x H) (Remote wall panel) | ||
| Colors | Black (RAL9005) (WP210/B) | ||
| White (RAL9003) (WP210/W) | |||
| Front finish | Elegant ABS front panel with glass | ||
| Accessories | Optional | Surface mount installation boxes | WB200 - Surface mount wall box for WP & DWP series |
| Flush mount installation boxes | Flush-mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS | ||
| Flush-mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG | |||
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
