WP220 Universal wall panel - Bluetooth receiver input - 80 x 80 mm

MSRP:

AUWP220B

Universal wall panel - Bluetooth receiver input - 80 x 80 mm

The WP220 is a remote universal wall panel with Bluetooth receiver input that can be used in combination with various AUDAC hardware (ARES5A, MTX series, AMP523, and more). It was never easier connecting your Bluetooth-enabled device with your audio installation using this wall plate. It will enable you to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling.

On the front side of the wall panel, you'll find a Bluetooth pair button with a handy LED indicator to check if it's in pairing mode or already connected to a device. Bluetooth pair name can be customized as desired. The Bluetooth receiver works with iPhones, iPads, iOS & Android smartphones, tablets, PC, Laptops, Desktops, etc...

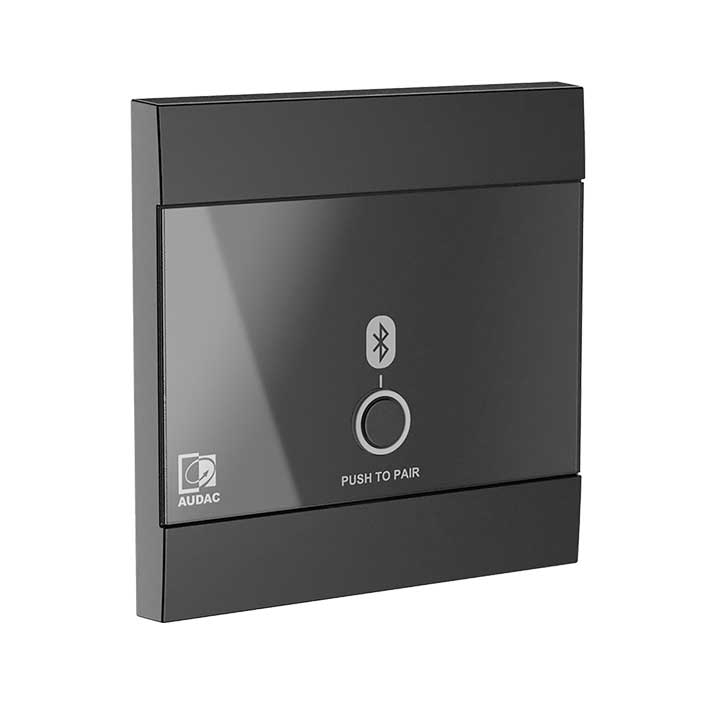

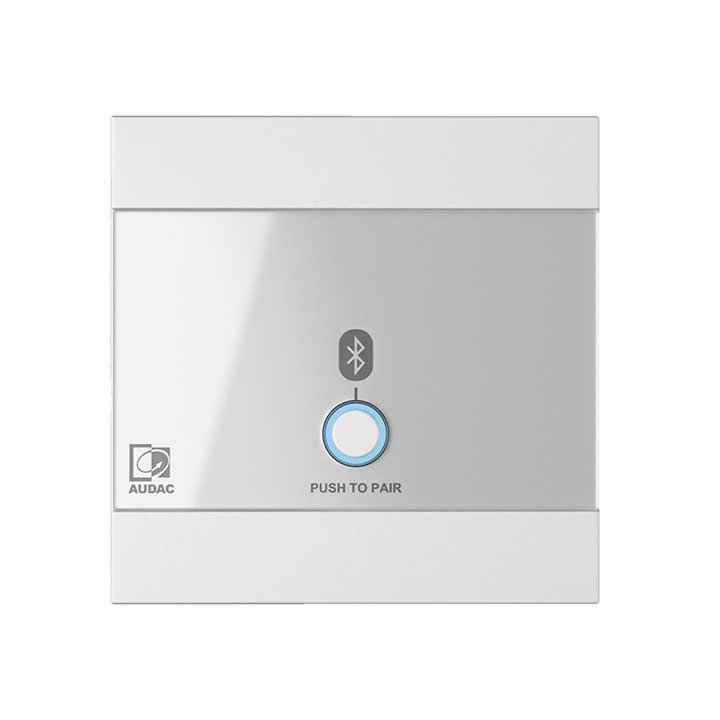

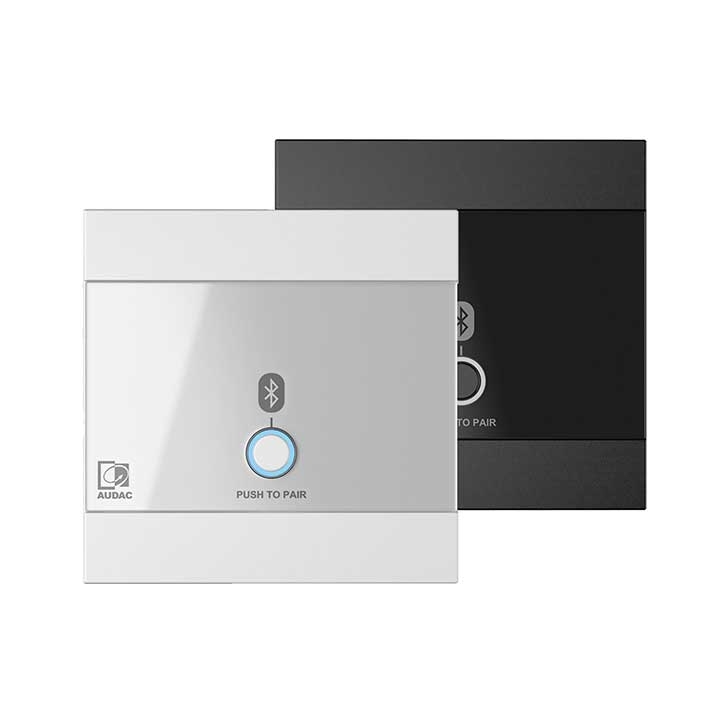

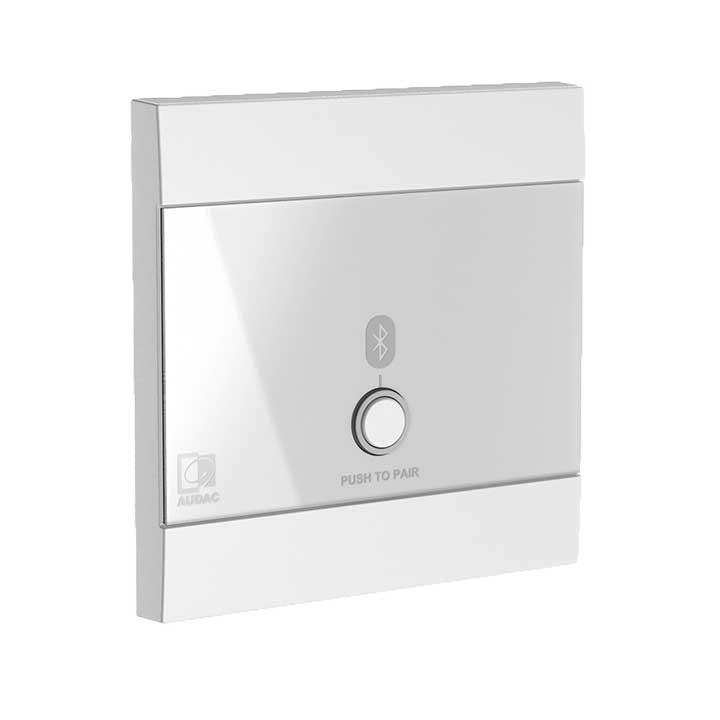

The WP220 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with glass, it will blend into any environment.

Variant	MSRP
Black version AUWP220B	POA
White version AUWP220W	POA

Would you like a Demo?

Highlights

Elegant design to blend in with any environment
Compatible with EU (80x80 mm) installation materials
Signal transmission over twisted pair (CAT5E) or better cabling
Signal transmission insensitive for interference and noise

Applications

Education
Retail
Bars & Restaurants
Corporate

Control			Bluetooth pairing button with LED
			Output level +12 dBV enable / disable (DIP switch on rear)
			Bluetooth enable/disable (DIP switch on rear)
			Mono / Stereo (DIP switch on rear)
Inputs	Wall Panel	Type	Bluetooth receiver (Version 5.0)
Outputs	Level		+12 dB
			0 dB

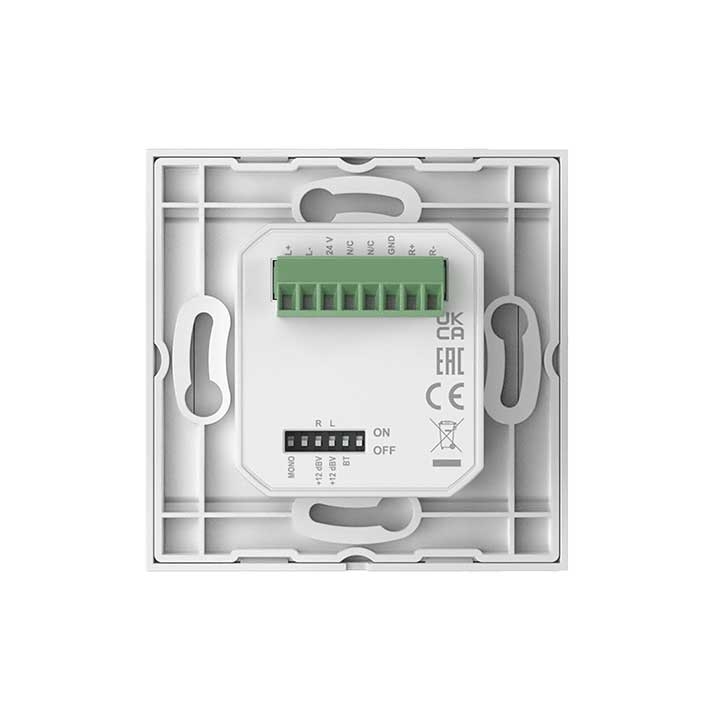

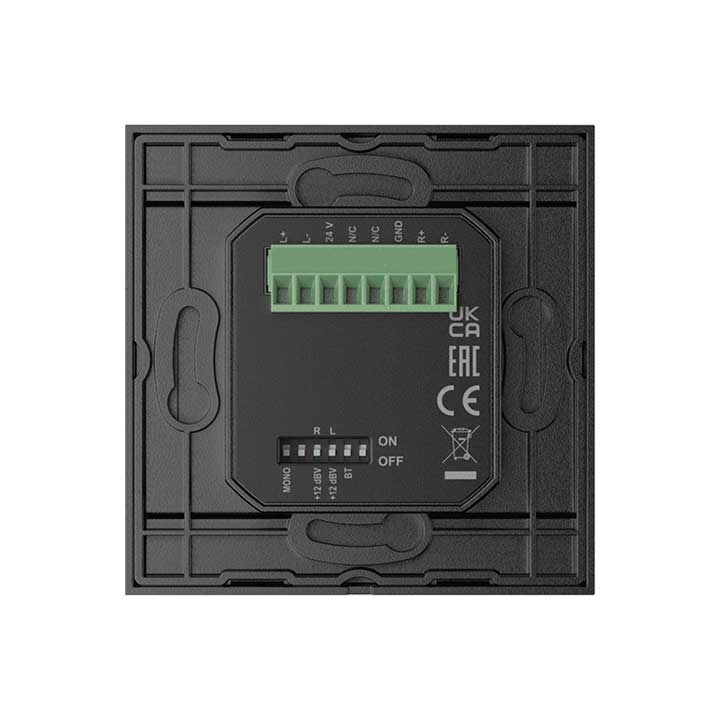

Connection			8-pin terminal block (3.81 mm pitch) output connection

Dimensions			80 x 80 mm (3.14" x 3.14") (W x H) (Remote wall panel)
Colours			Black (RAL9005) (WP220/B)
			White (RAL9003) (WP220/W)
Front finish			Elegant ABS front panel with glass
Accessories	Optional	Surface mount Installation boxes	WB200 - Surface mount wall box for WP & DWP series
		Flush mount Installation boxes	Flush-mount box for 45 x 45 mm wall panel - Solid wall - WB45S/FS
			Flush-mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG

RENAME YOUR WP22X SERIES WALL PANELS

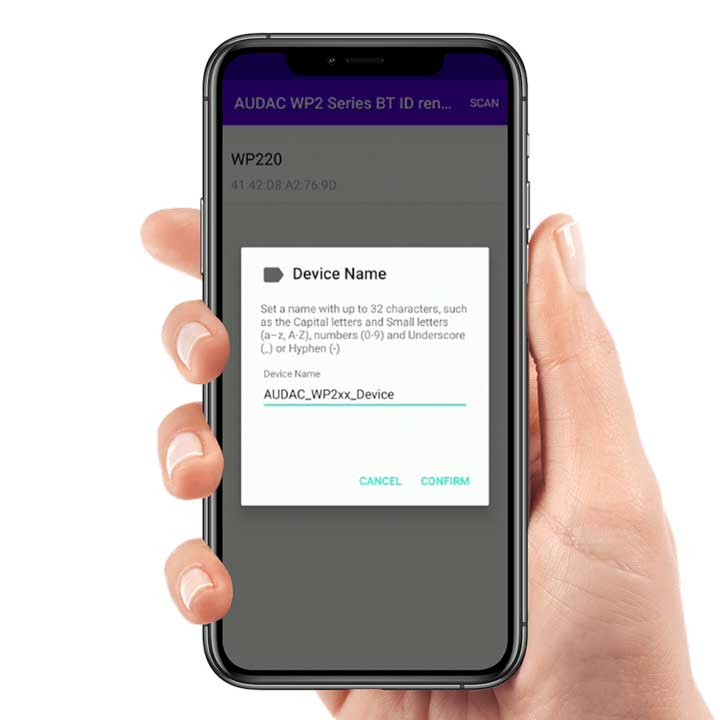

In large operations, several WP2xx wall panels might be required. It may be difficult to keep a clear overview when all these wall panels are equipped with Bluetooth. Therefore it is possible to change the Bluetooth ID of a WP2xx to differentiate each wall panel. The Bluetooth ID can be changed in the ‘AUDAC Bluetooth rename ID’ app.

Please note: The application is currently only available for Android devices.

See the downloads tab for details.
