A.C. Pro Media - Architainment Media Solutions | WPR609R/B
Home Category Brands CAYMON WPR609R/B

WPR609R/B

MSRP: POA
CYWPR609R-B

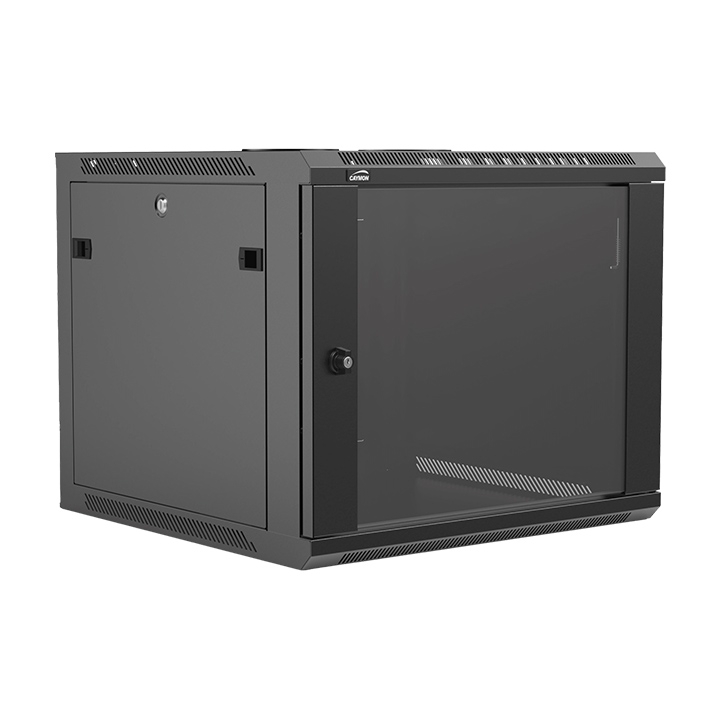

19” wall mount rack - 9 units - 600mm depth - Removable back

The WPR609 is a professional 19” wall mount metal rack compliant with ANSI/EIA RS-310D, DIN41491, and IEC 60297 standards. It is a solid construction with a cold-rolled steel 1.5 mm thick frame and 1.2 mm thick plates. The WPR609 comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensures easy fitting of the equipment.

The tempered smokey grey glass door is fitted with a key lock to keep the equipment only accessible to authorized persons. The removable sides and back panel allow easy installation and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.

Would you like a Demo?

Features:

  • Stores up to 9 units of 19” Equipment
  • Integrated ventilation grid on top
  • Removable sides for easy installation & cabling

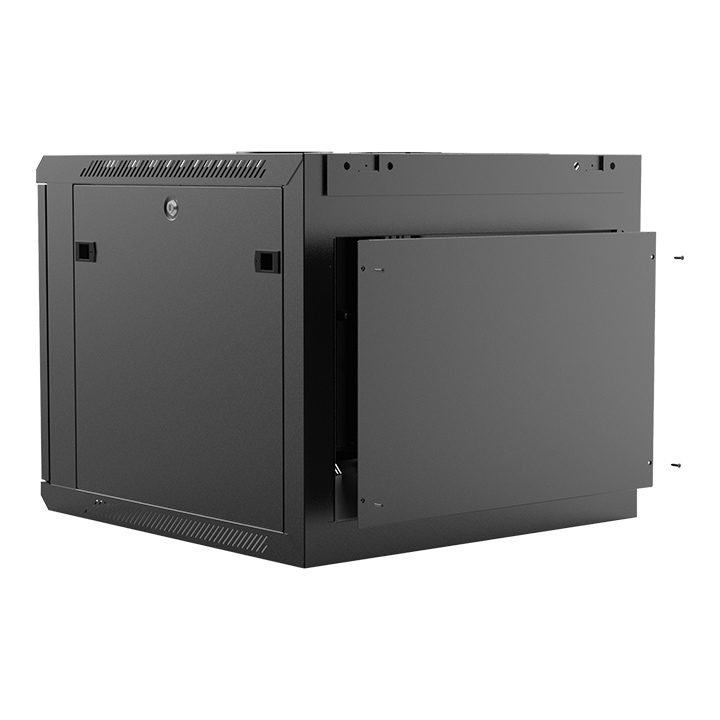

  • Removable rear panel
  • Punched square holes for use with snap-in cage nuts
  • Front in depth adjustable 19” profiles (max 560 mm)
  • Loading capacity of 60 kg
  • Cable entry on top, back & bottom (closable)
  • Tempered glass door with keylock
  • Keylock with butterfly handle
Product Features
Dimensions 23.62" x 19.72" x 23.62" (600 x 501 x 600 mm) (W x H x D)
Unit height 9 RU
Weight 59.52 lbs (27 kg)
Colors Black (RAL9004)
Max. load 132.28 lbs (60 kg)
Max. usable depth 22.05" (560 mm)
Accessories Included 10 x Cage nuts + screws
    2 x key for front door
    4 x Key for sidepanel lock
    1 x Allen key
    1 x WPR60LR
  Optional KM600 - M6 Cage nuts
    KS600 - M6 x 16 mm bolt DIN7985 Black
    WPR10RF - Roof fan 120x120 mm
    SPR10DC - Dust cover brush
    WPR60FS - Fixed shelf
    SS160 - Sliding shelf

*Note: CAYMON operates a policy of continuous development. CAYMON reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details https://caymon.eu
