TRM124 70/100V transformer module for VEXO110
MSRP:
POA
AUTRM124

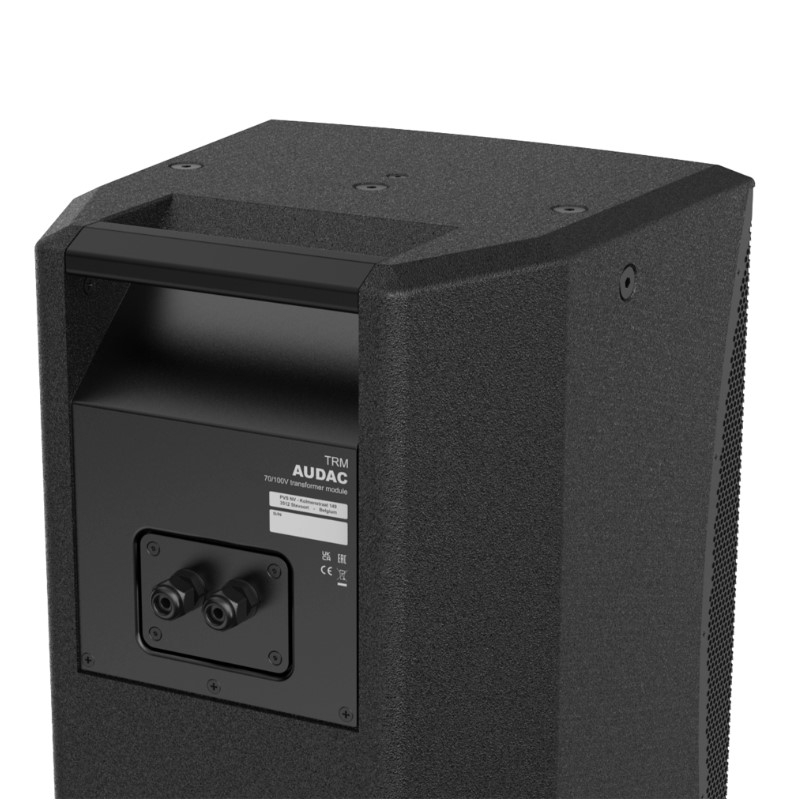

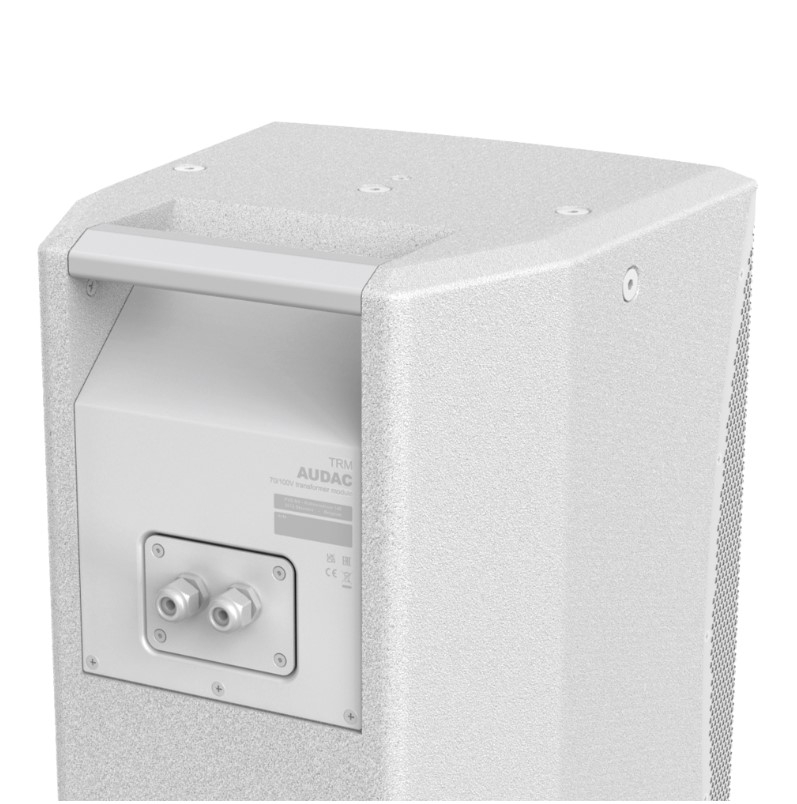

The TRM series are 70/100V line transformers that can be optionally implemented in the passive variants of the VEXO series. Installation is done by removing the backplate of the VEXO series (inactive variants only) and replacing it with a 70/100V backplate on which the module is integrated. The high-performance loudspeaker can be implemented in 70/100V systems like this.
| System specifications | ||||
|---|---|---|---|---|
| Line Transformer Tappings | 1 | 20.83 Ω - 100 V / Not used - 70 V / 240 W | ||
| 2 | 41.67 Ω - 100 V / 240 W - 70 V / 120 W | |||
| 3 | 83.33 Ω - 100 V / 120 W - 70 V / 60 W | |||
| Impedance | 8 Ω (Secondary) | |||

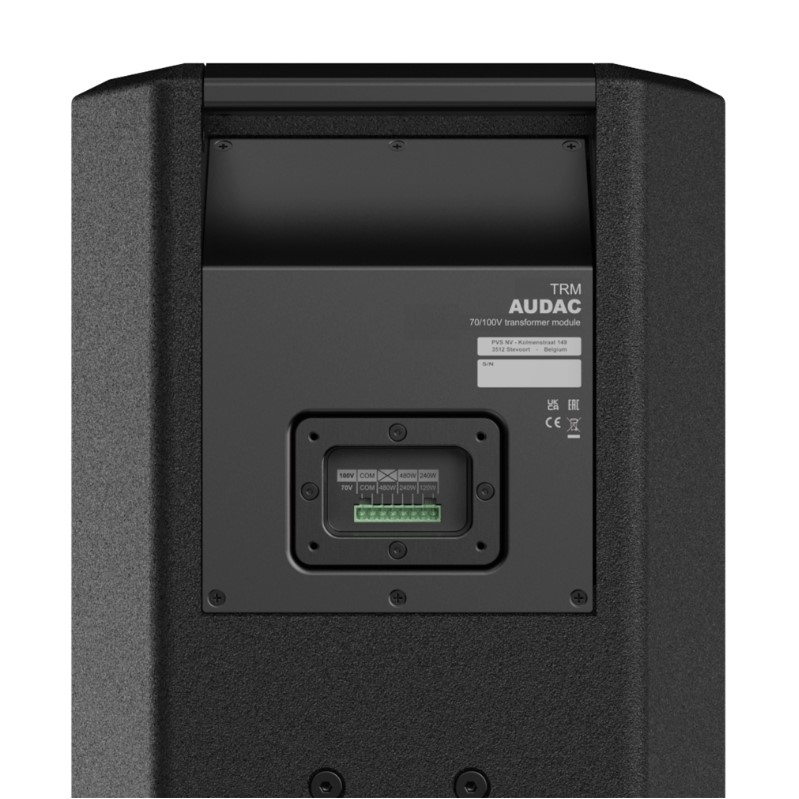

| Connection | External (to amplifier) - 8-pin terminal block | |||
| Internal (to speaker) - 2-pin connector | ||||
| Frequency | Response (± 3 dB) | 50 Hz - 20 kHz | ||
| Product Features | ||||
|---|---|---|---|---|
| Construction | Aluminium backplate | |||

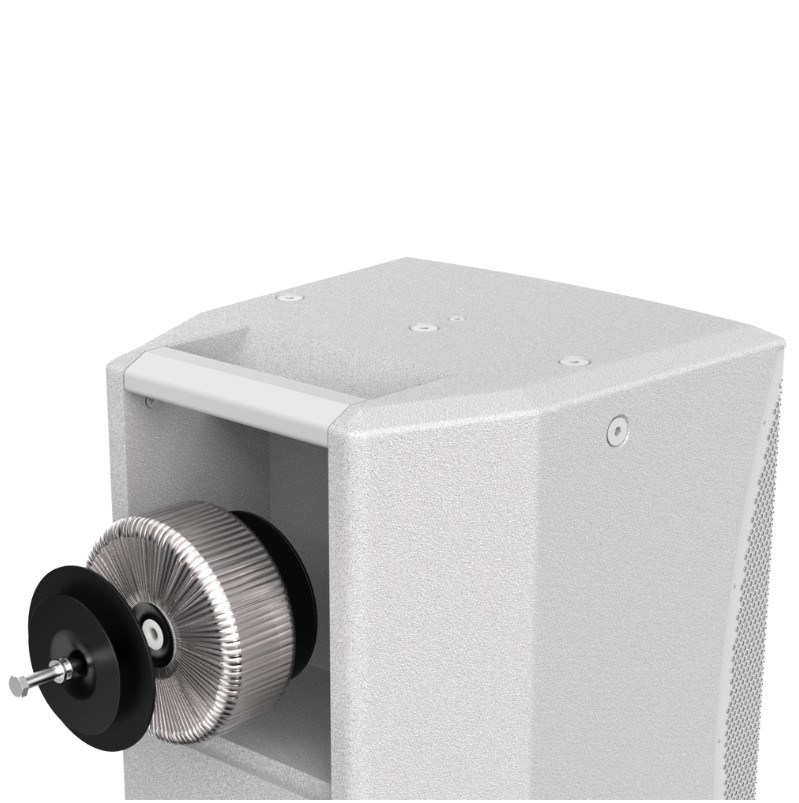

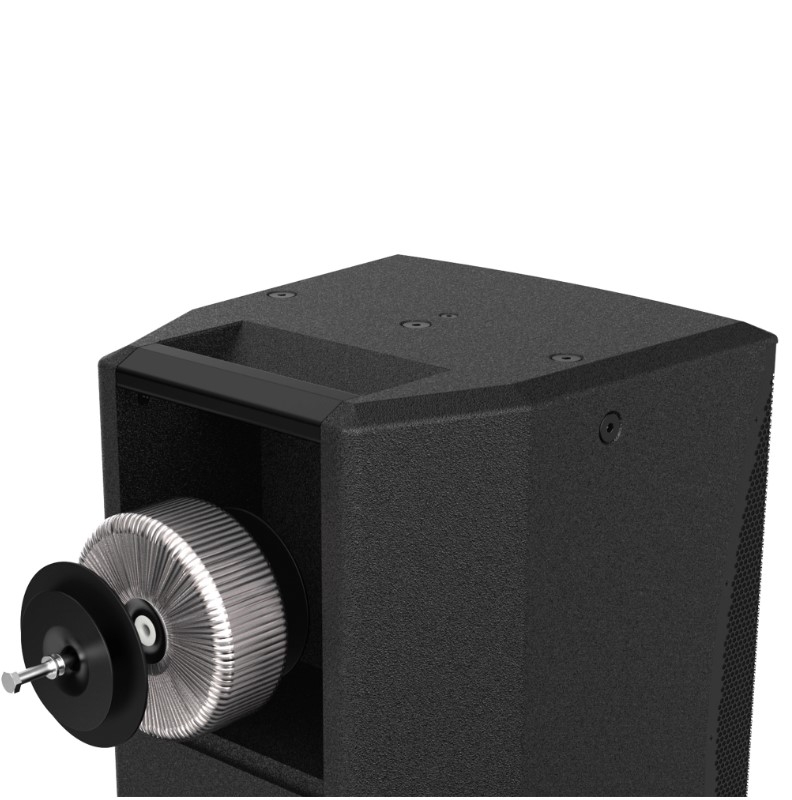

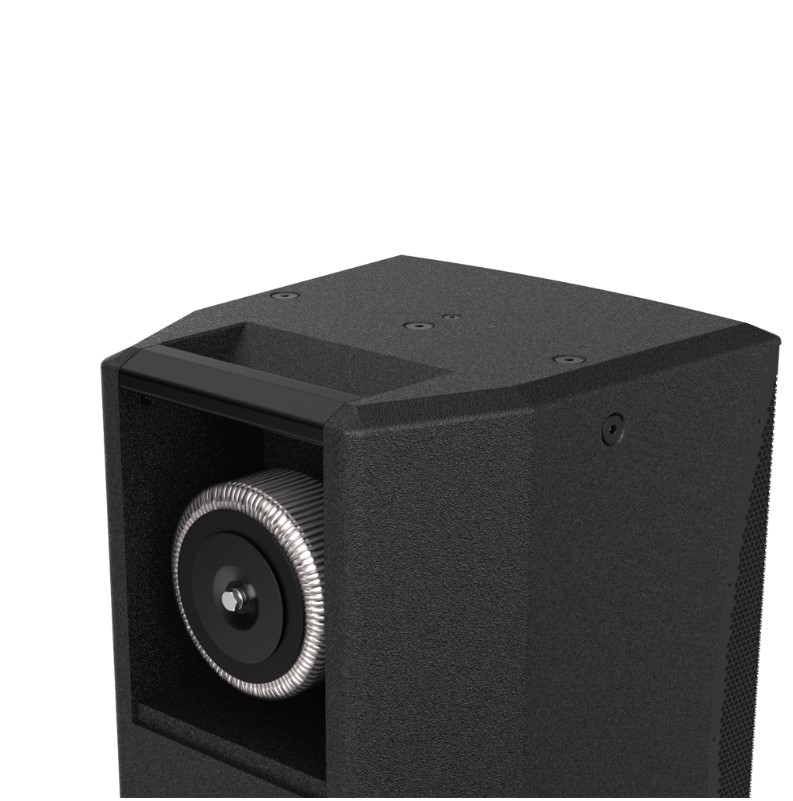

| Copper toroidal transformer | ||||
| Colours | Black (RAL9005) | |||
| White (RAL9003) | ||||
| Compatible devices | VEXO110 | |||
| Accessories | Included | M8 x 80 mm (Mounting bolt) | ||
| Ø 90 mm metal washer | ||||
| Rubber washer | ||||
| M8 washer | ||||
| M8 spring washer | ||||
*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
