TRM224 70/100V transformer module for VEXO112 & VEXO115

MSRP: POA
AUTRM224

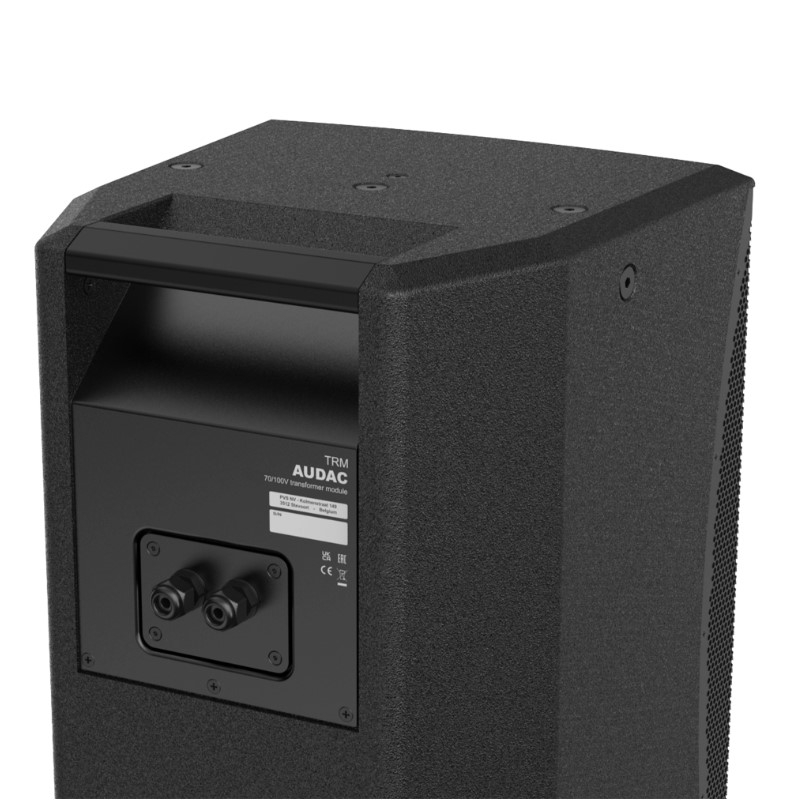

The TRM series are 70/100V line transformers that can be optionally implemented in the passive variants of the VEXO series. Installation is done by removing the backplate of the VEXO series (inactive variants only) and replacing it with a 70/100V backplate on which the module is integrated. The high-performance loudspeaker can be implemented in 70/100V systems like this.

Variant MSRP
BLACK - TRM224 70/100V transformer module for VEXO112 & VEXO115 AUTRM224 POA

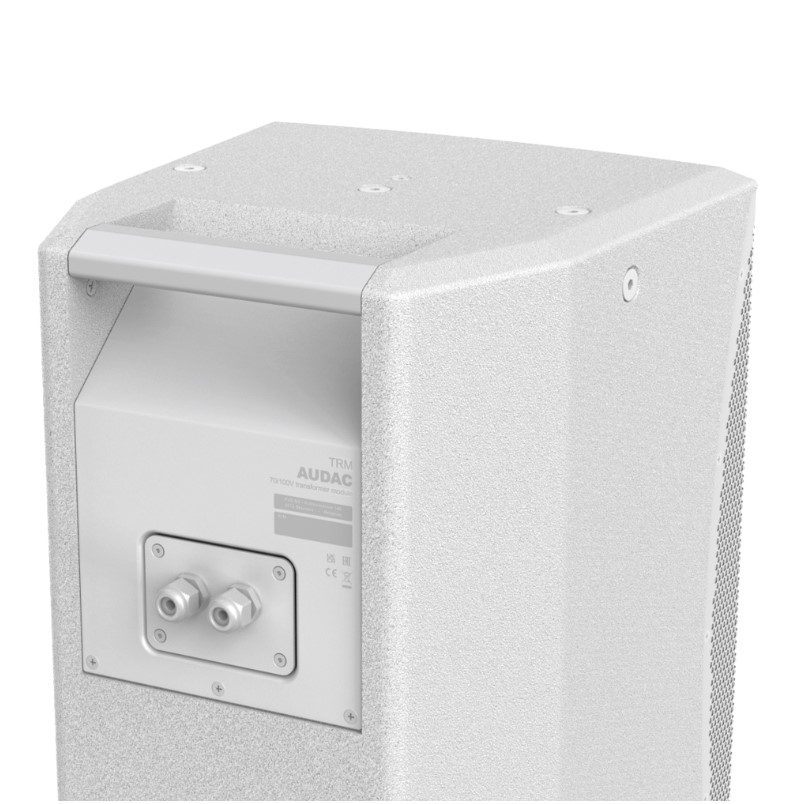

WHITE - TRM224 70/100V transformer module for VEXO112 & VEXO115 AUTRM224_W POA
Would you like a Demo?

3 years   Indoor   70/100 V

System specifications
Line Transformer Tappings 1 20.83 Ω - 100 V / Not used - 70 V / 240 W
  2 41.67 Ω - 100 V / 240 W - 70 V / 120 W
  3 83.33 Ω - 100 V / 120 W - 70 V / 60 W
Impedance 8 Ω (Secondary)

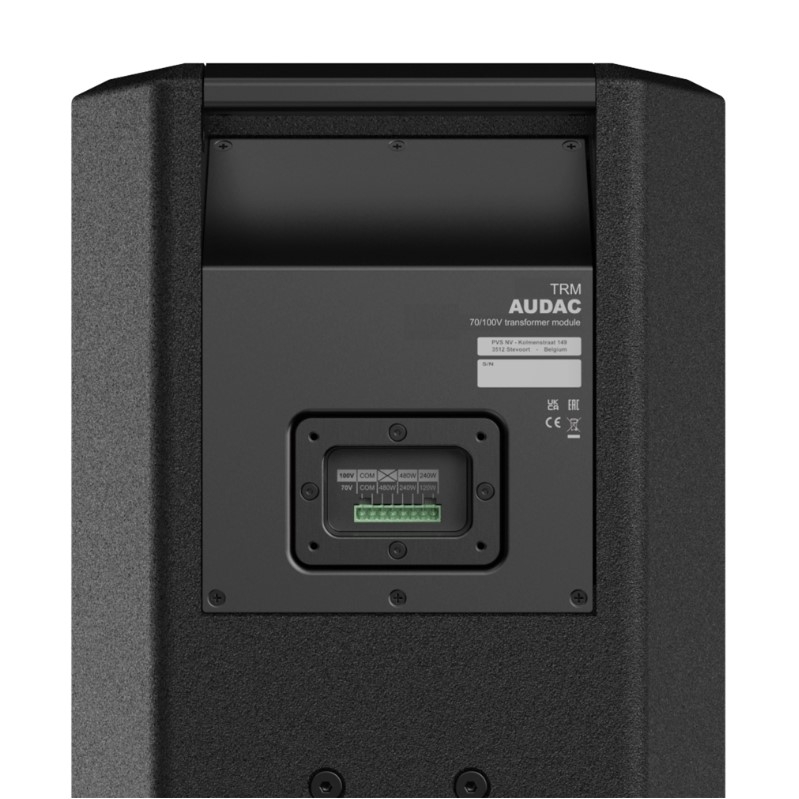

Connection External (to amplifier) - 8-pin terminal block
  Internal (to speaker) - 2-pin connector
Frequency Response (± 3 dB) 50 Hz - 20 kHz
Product Features
Construction Aluminium backplate

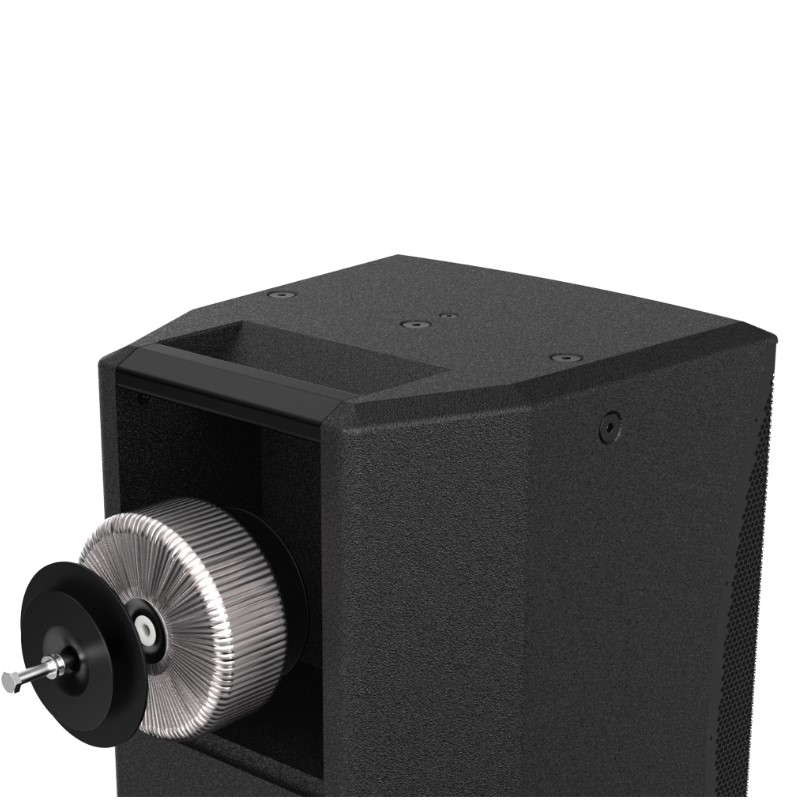

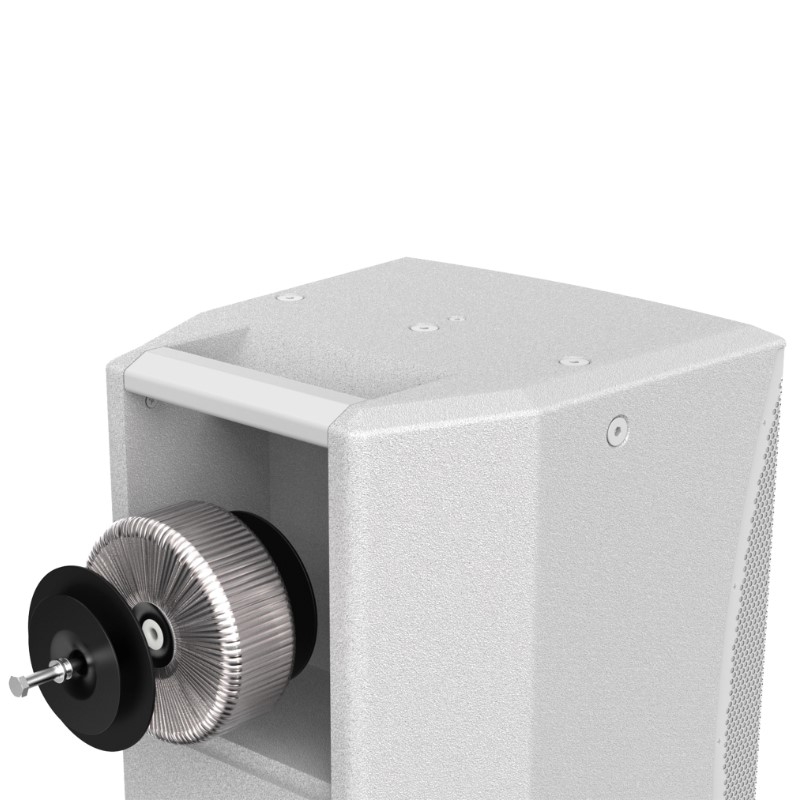

  Copper toroidal transformer
Colours Black (RAL9005)
  White (RAL9003)
Compatible devices VEXO112
  VEXO115
Accessories Included M8 x 80 mm (Mounting bolt)
    Ø 90 mm metal washer
    Rubber washer
    M8 washer
    M8 spring washer

*Note: AUDAC operates a policy of continuous development. AUDAC reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details www.audac.eu For the most up-to-date Software and Firmware visit www.audac.eu.
