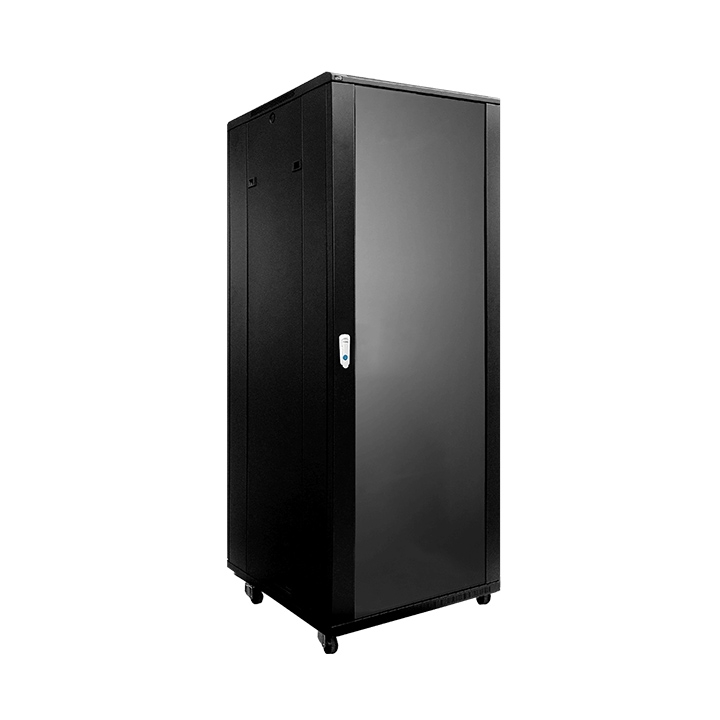

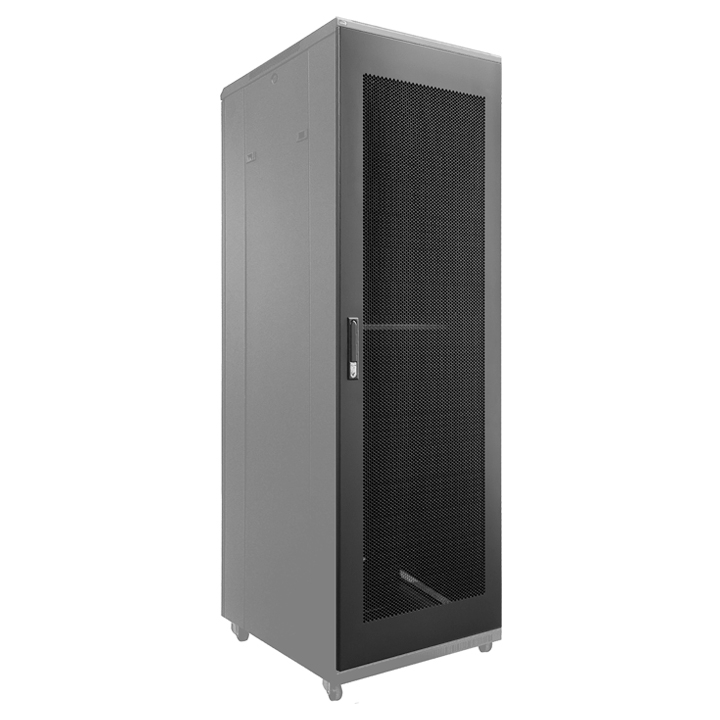

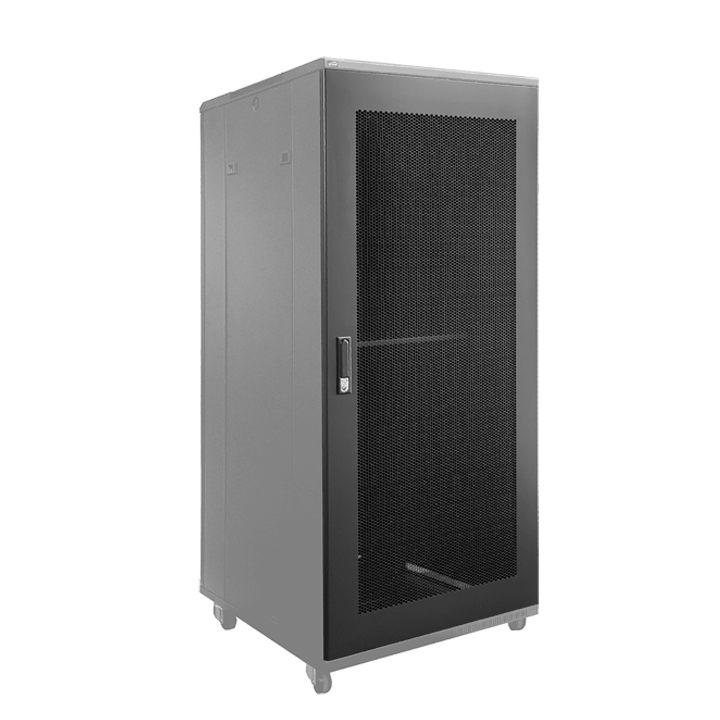

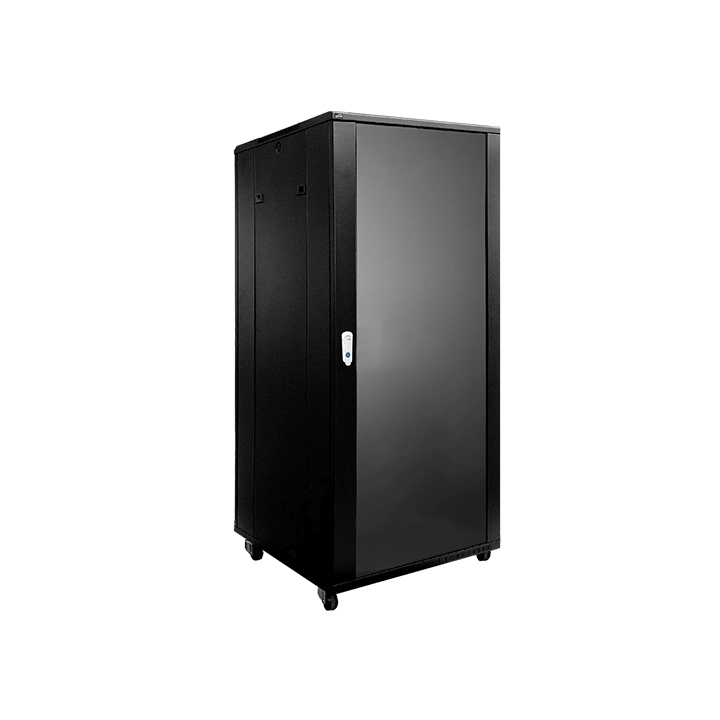

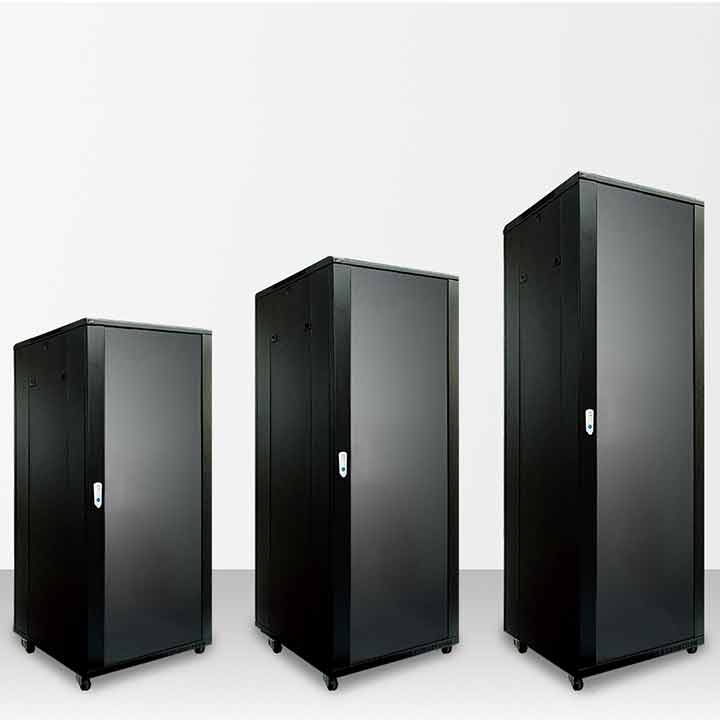

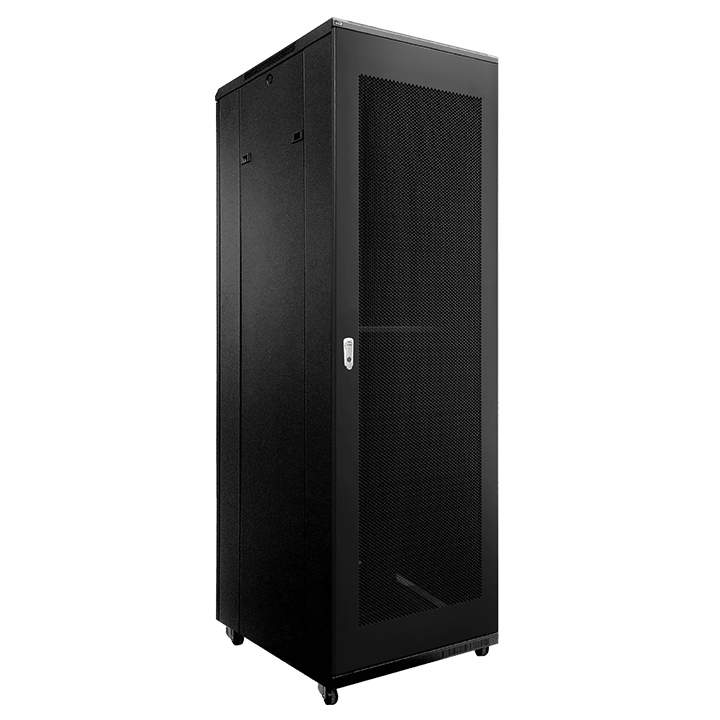

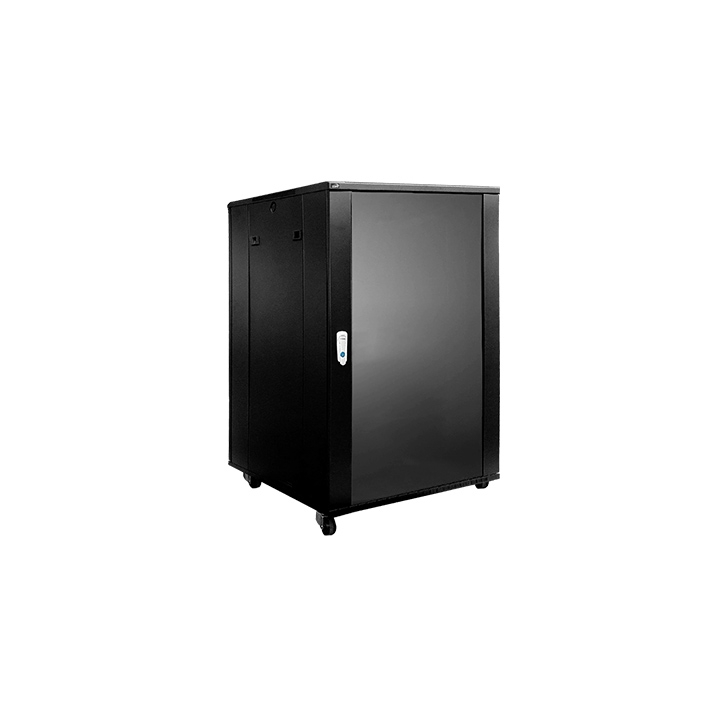

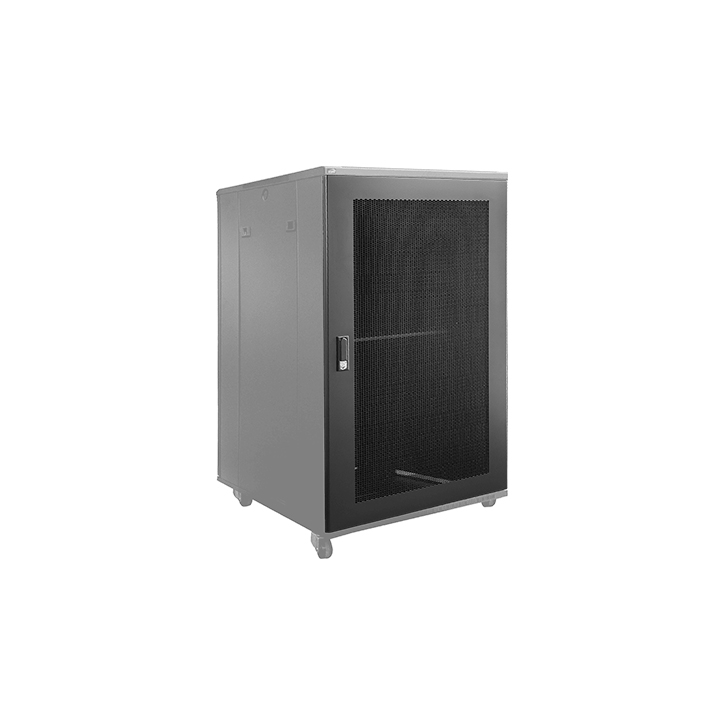

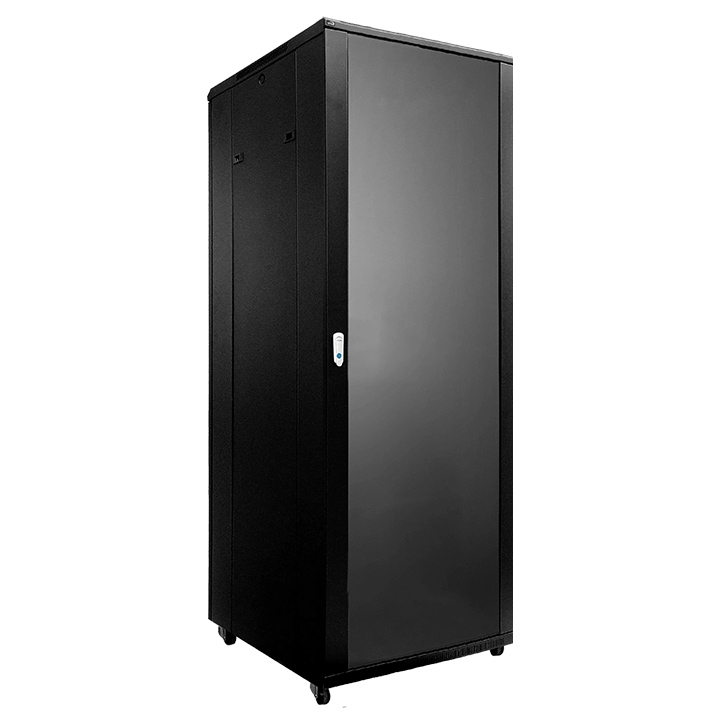

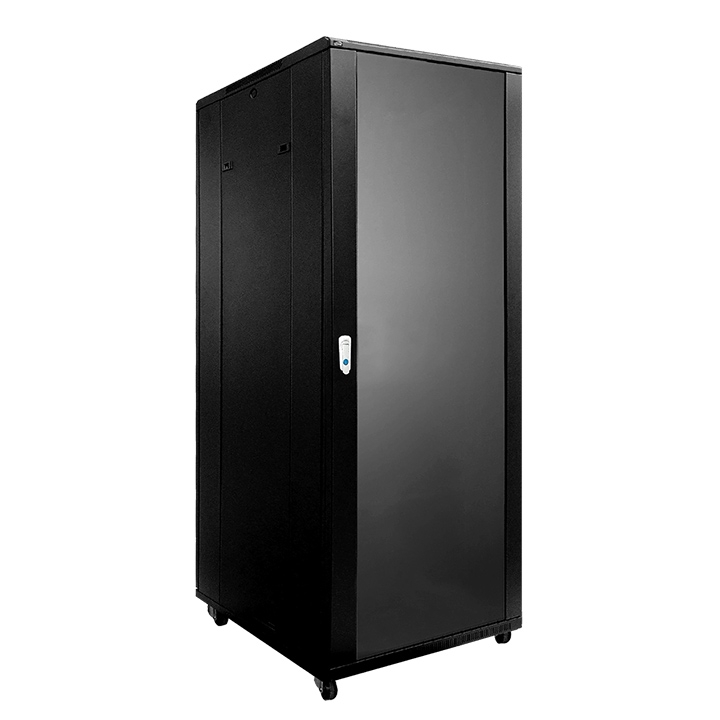

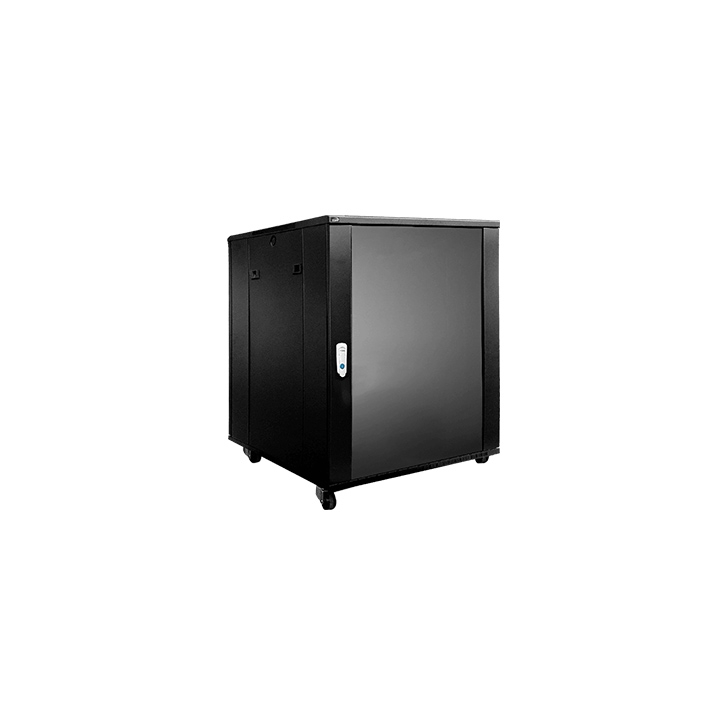

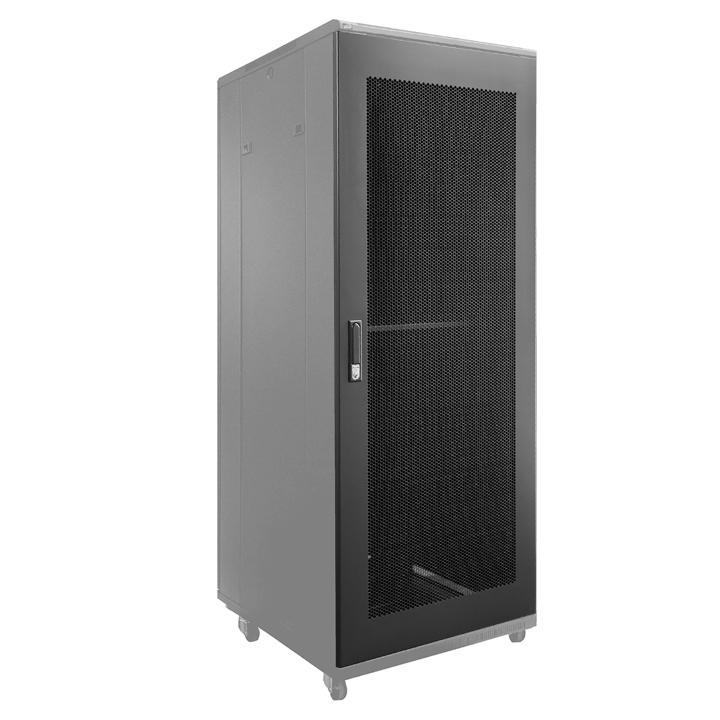

SPR Series Floor Standing Racks

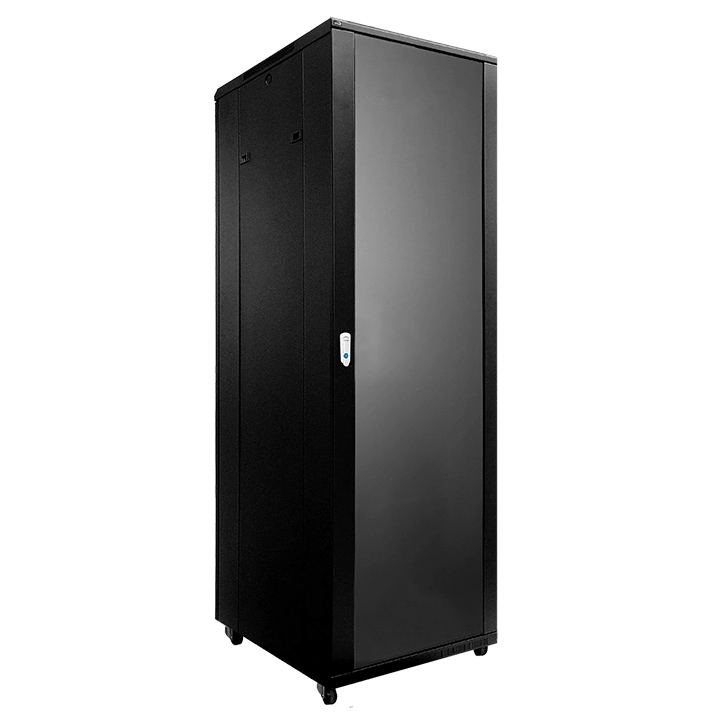

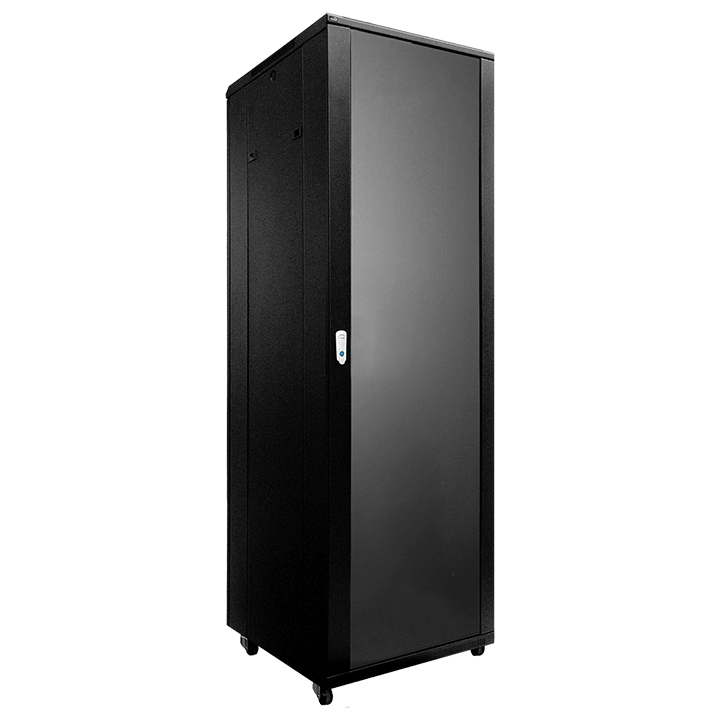

Optimal protection in fixed installations is guaranteed with the SPR series 19” racks which are compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards and come available in a wide range of heights and depths. They are constructed using a cold rolled steel frame with a thickness of 2 mm and 1,2 mm plates finished in a black (RAL9004) powder coating with a fine structure. They come standard with a reversible tempered glass front and steel rear door, both fitted with easy-swing locks. Other features of this product range are removable sides, in-depth adjustable 19” profiles, including leveling feet and wheels, ...

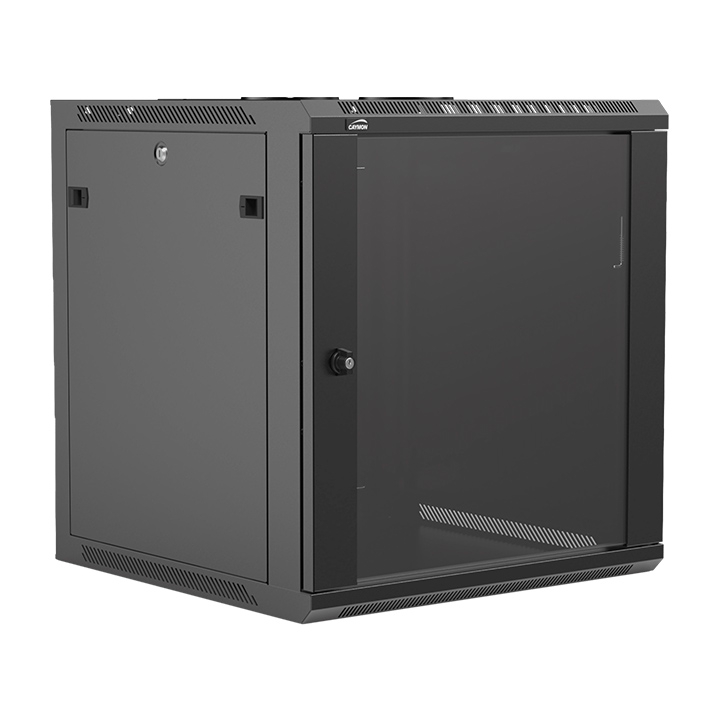

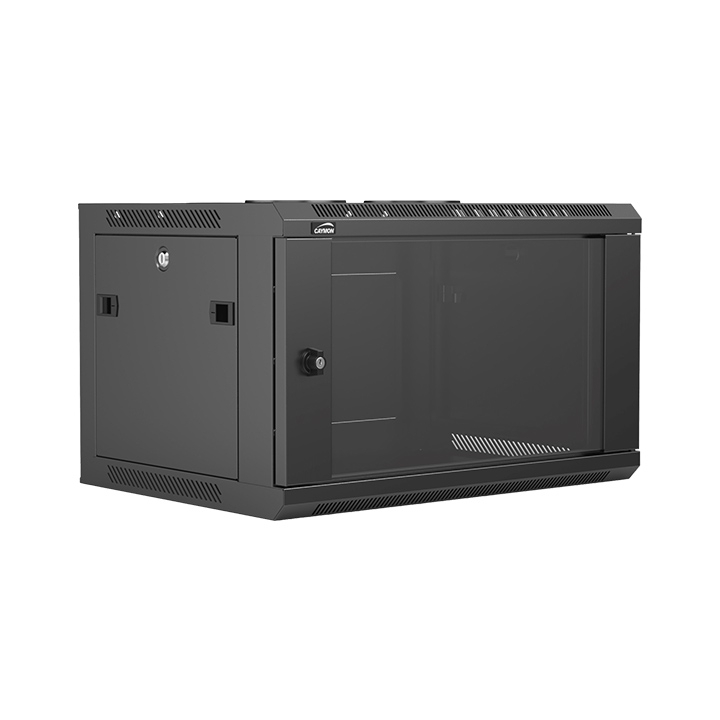

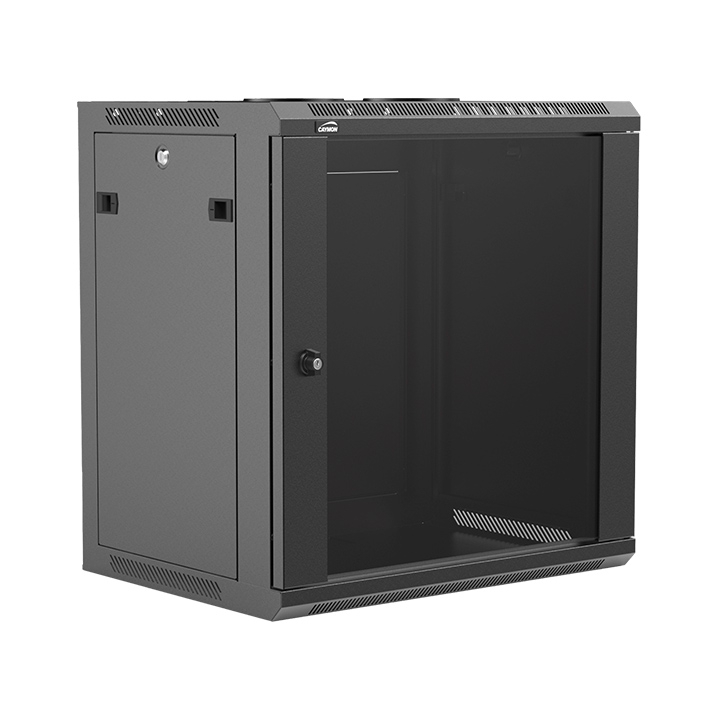

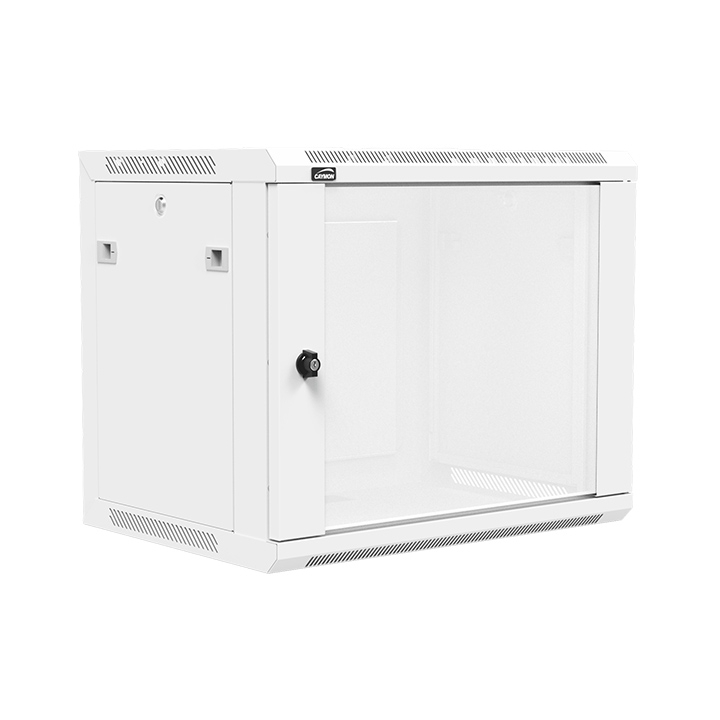

WPR Series Wall-Mount Racks

Maximum installation flexibility is guaranteed with the WPR series wall mountable 19” racks which are compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. Their flexible structure allows installation at any location while their different heights and depths provide a solution for a wide variety of applications. They are constructed using a cold rolled steel frame with a thickness of 1,5 mm and 1,2 mm plates, finished in a black (RAL9004) or white (RAL9003) powder coating. The front is finished with a reversible tempered glass front door with a wing-knob lock. Other features of this product range are removable and lockable sides, in-depth adjustable 19” profiles, ventilation grid in the top panel, ...

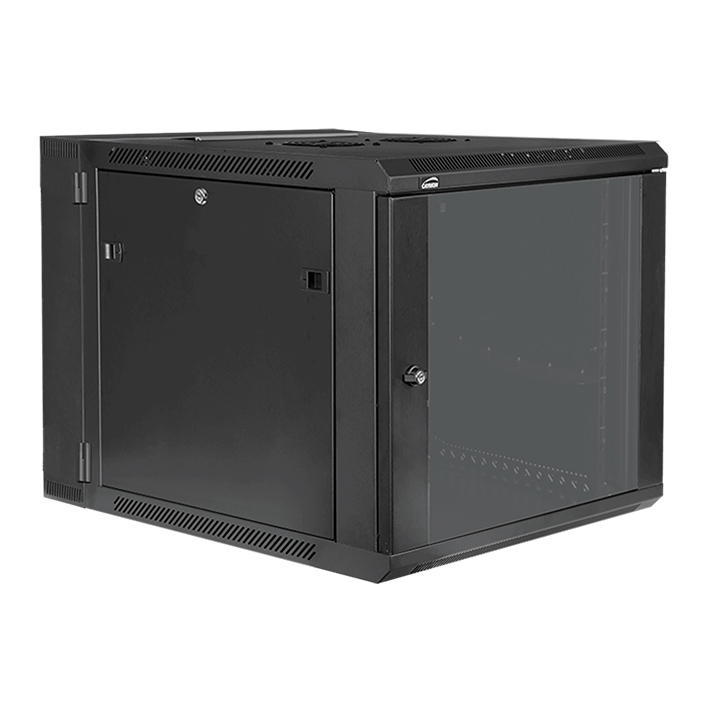

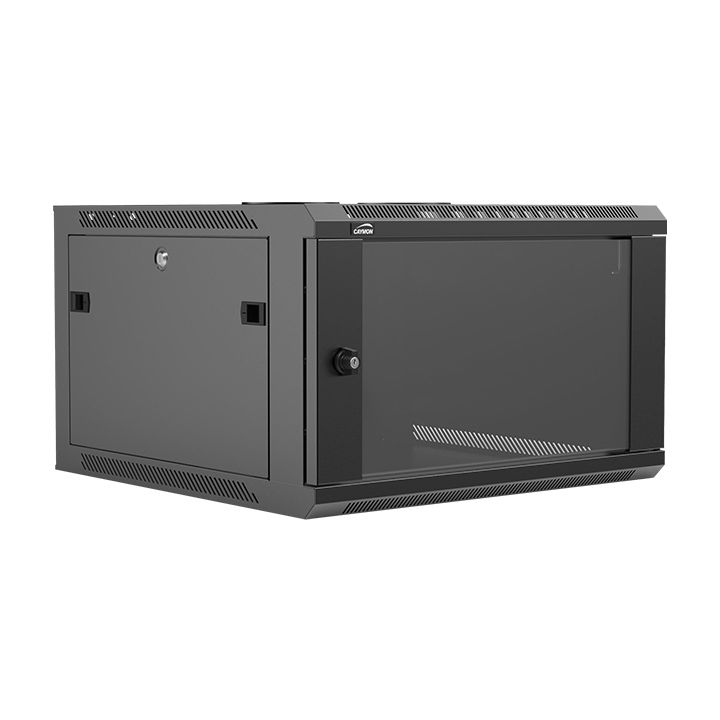

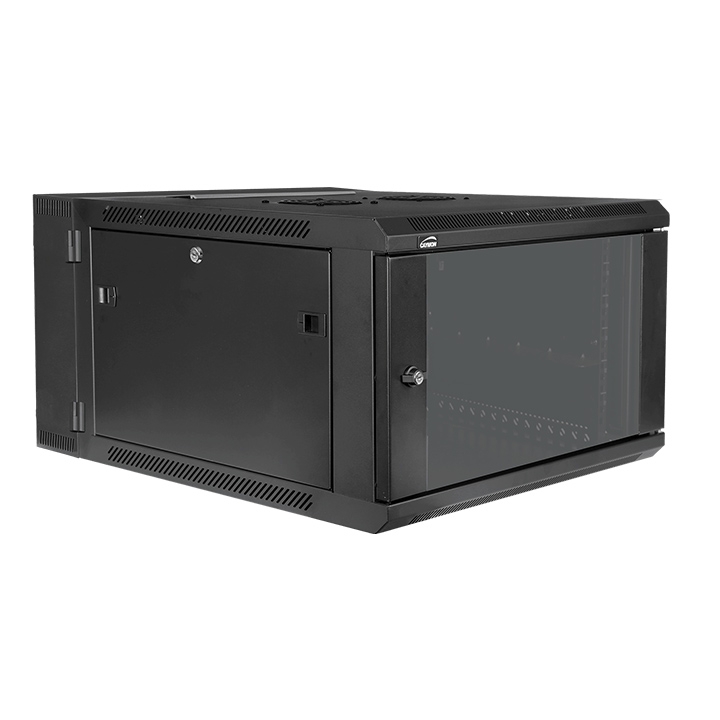

HPR Series Wall-Mount Racks

Professional 19” double section wall rack cabinet which complies with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards. It ensures maximum installation, connectivity, and maintenance ease. The solid construction is made of a 1.5 mm thick steel frame and 1.2 mm thick plates are finished with a black (RAL9004) fine-structured powder coating. It provides a stable and secure installation while the double-section structure allows easy access to the rear side of the equipment. The tempered smokey glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. These 19” racks come pre-assembled.

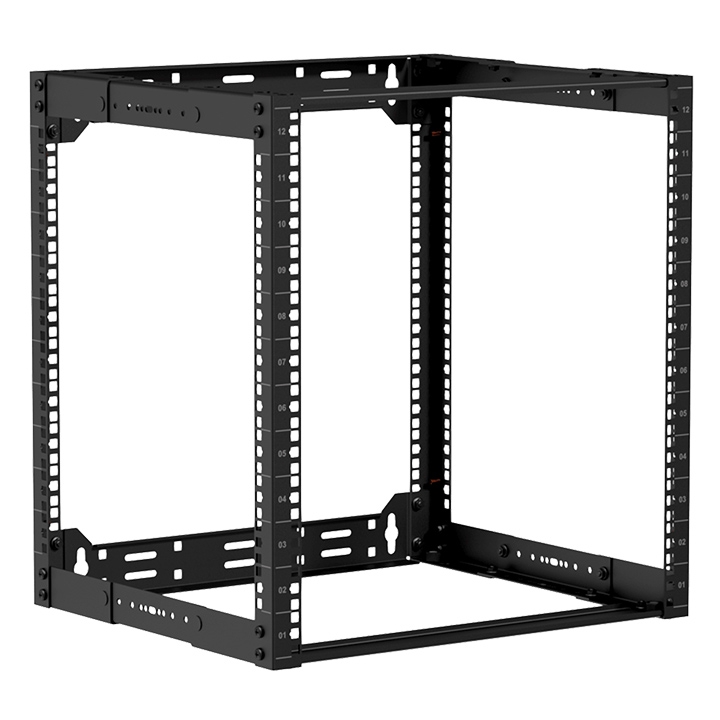

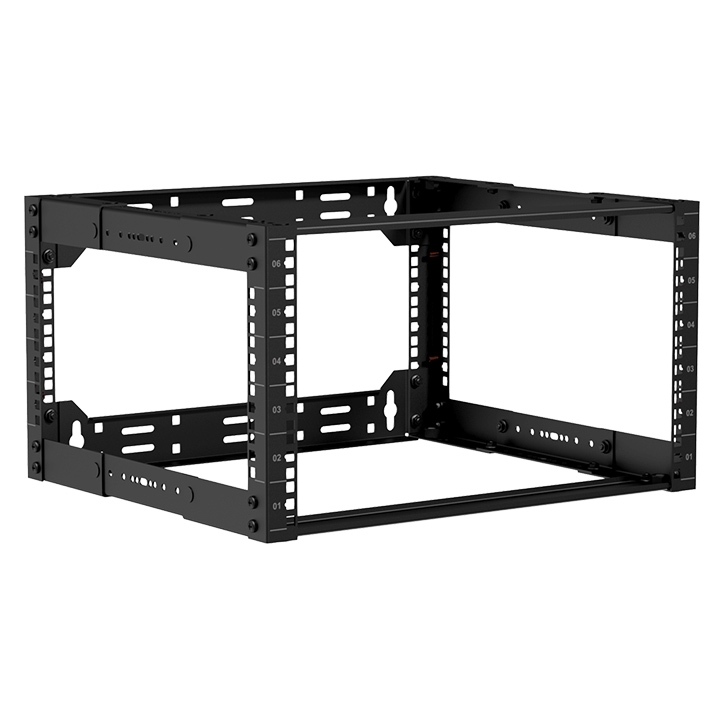

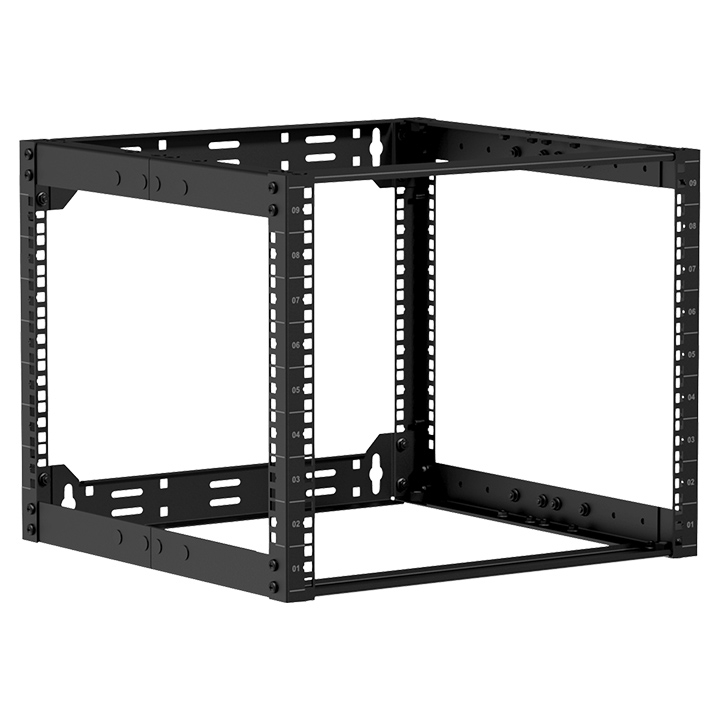

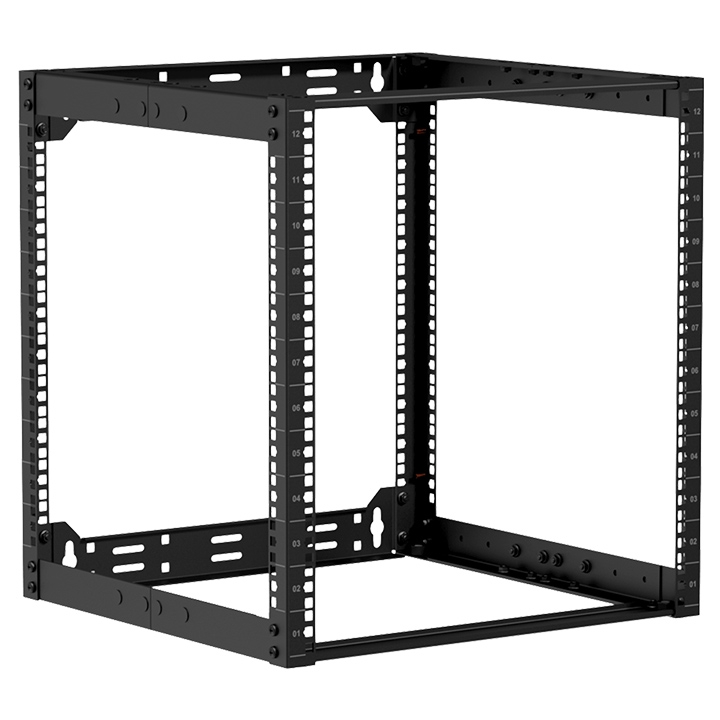

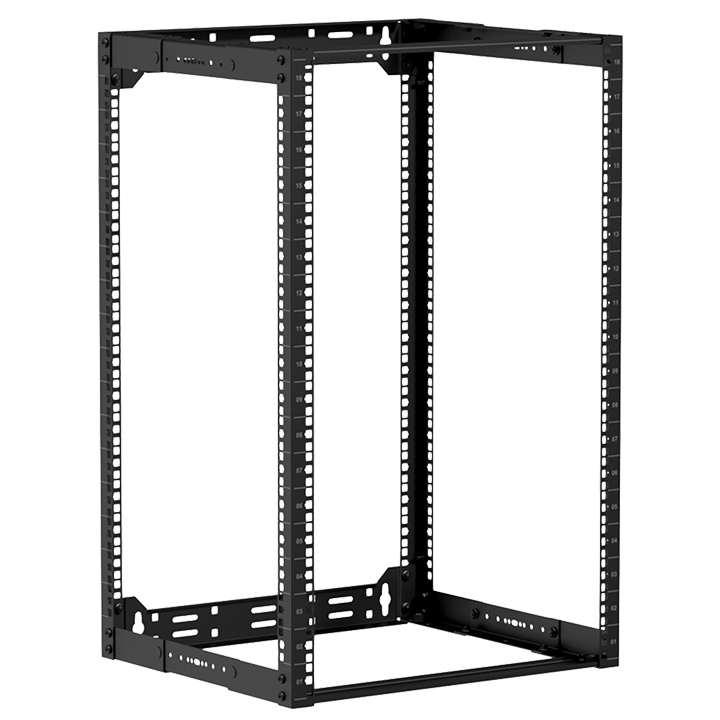

OPR Series Open Frame Racks

The OPR series are solid-constructed open-frame racks for 19” equipment compliant with ANSI/EIA RS-310D, DIN41491, and IEC60297 standards which are suitable for wall-mounted or floor-standing installation. The rugged construction made of 2 mm thick steel allows for pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on the front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time. Available in various heights from 3 up to 18 rack space.

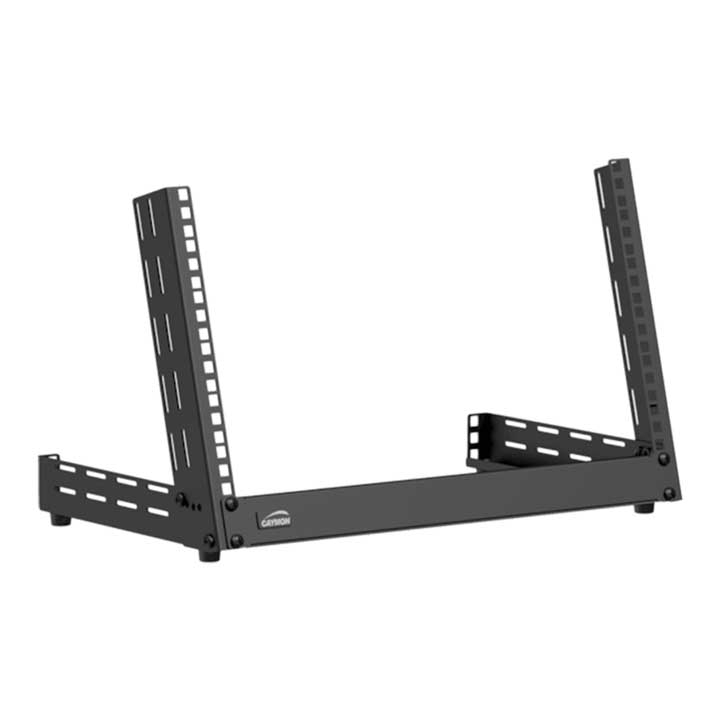

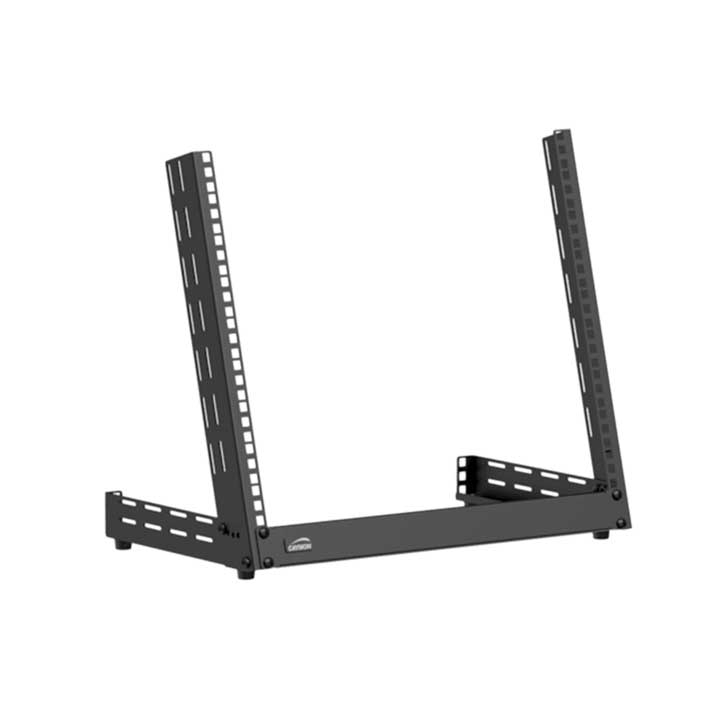

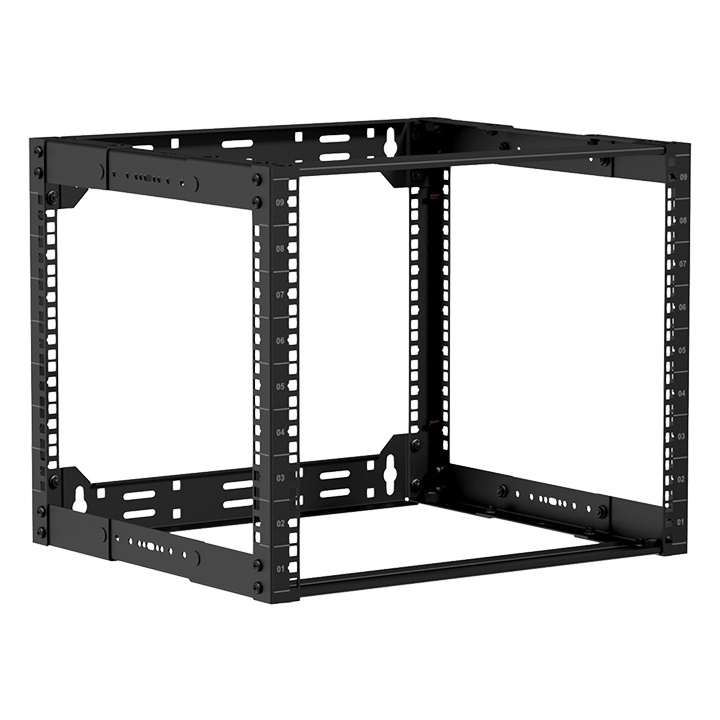

TPR Series Open frame desktop rack

The TPR series are desktop racks for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which are suitable for desktop use in applications such as recording studios, test laboratories, … and many more. The open frame structure is solid constructed using 2 mm thick steel finished in a black (RAL9004) powder coating with fine structure. Punched equipment mounting profiles on the front and side guarantee a flexible use. Delivered in a flat-down package, the simple structure allows efficient shipment and assembly in a record-breaking time. Available in 6 and 9 rack space height.

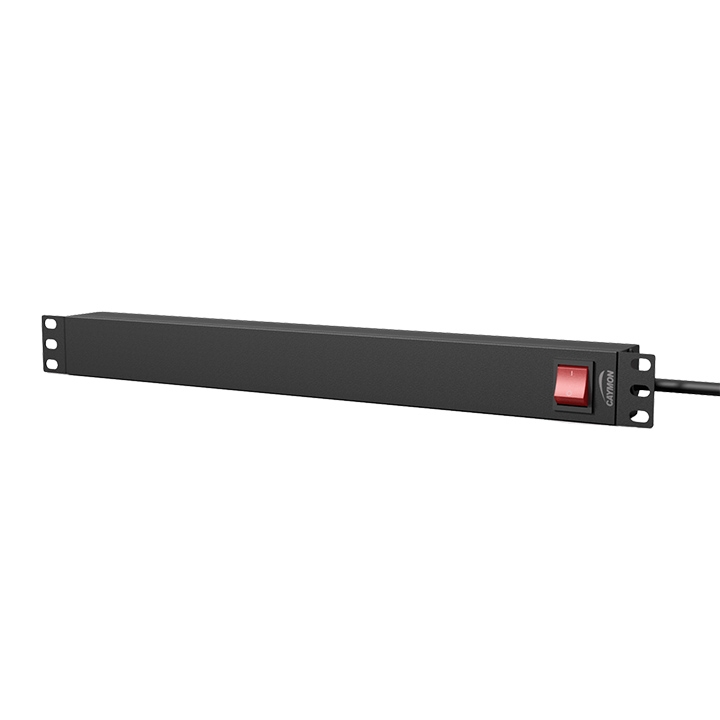

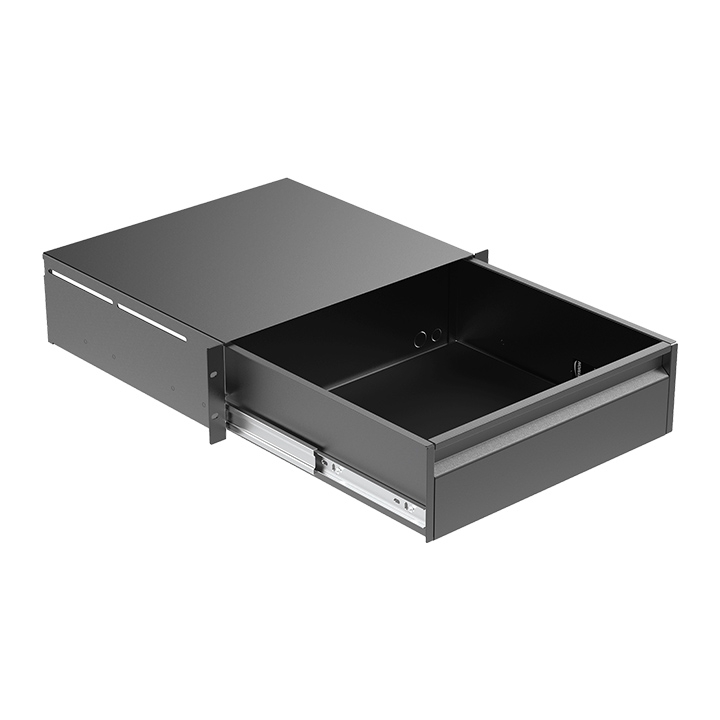

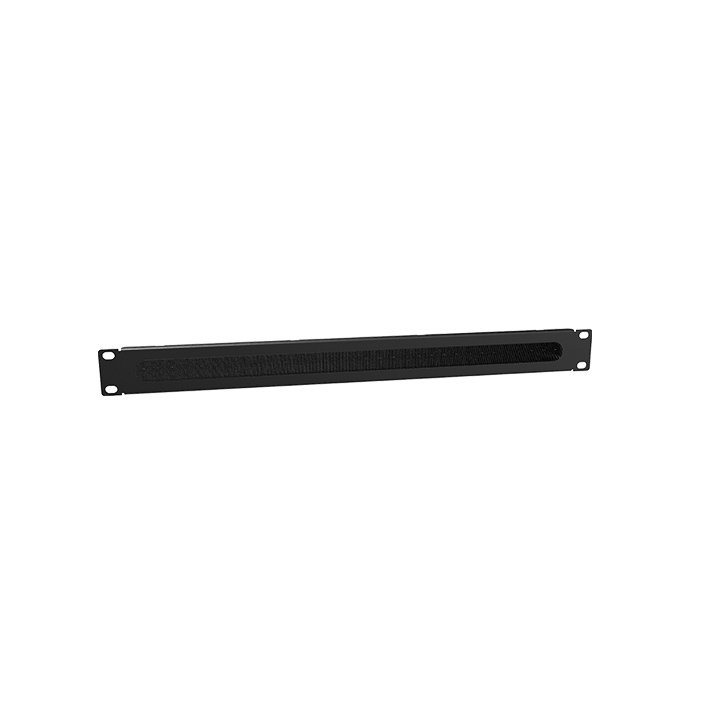

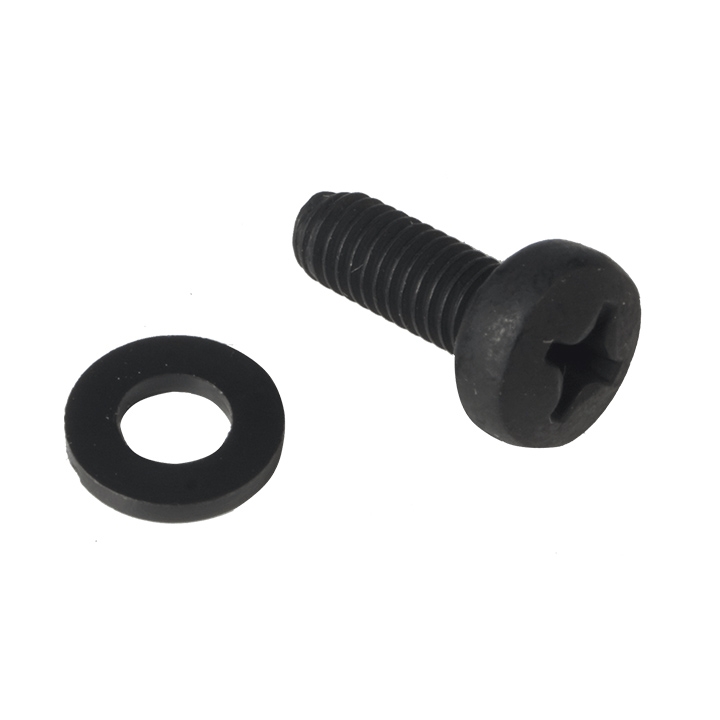

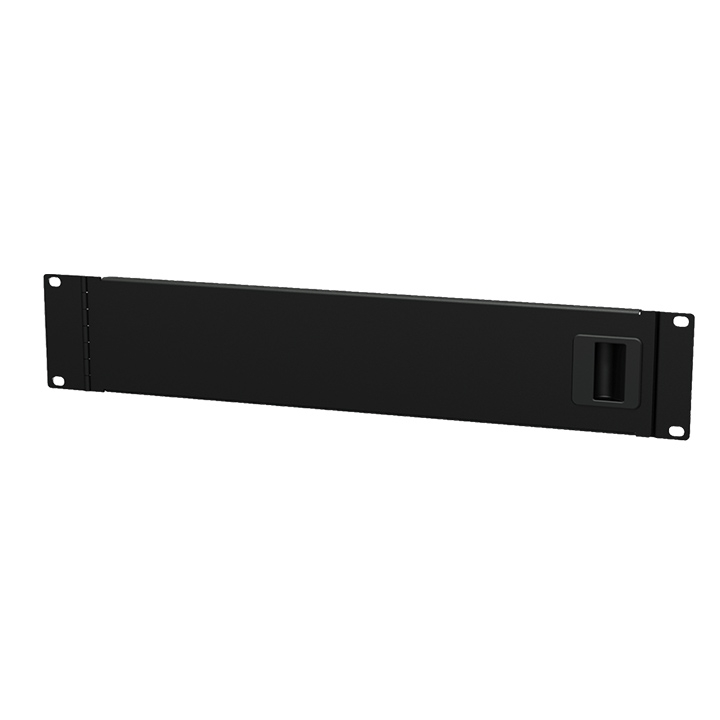

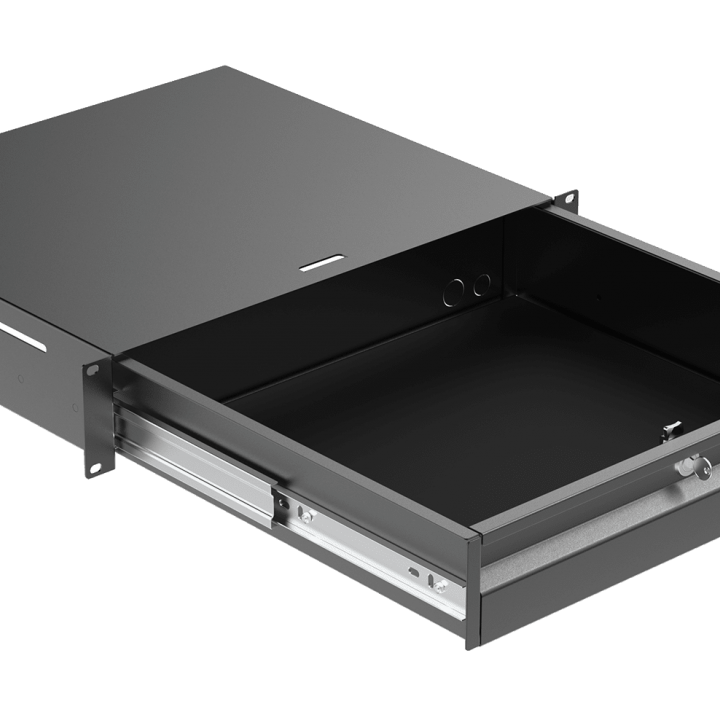

Rack Accessories

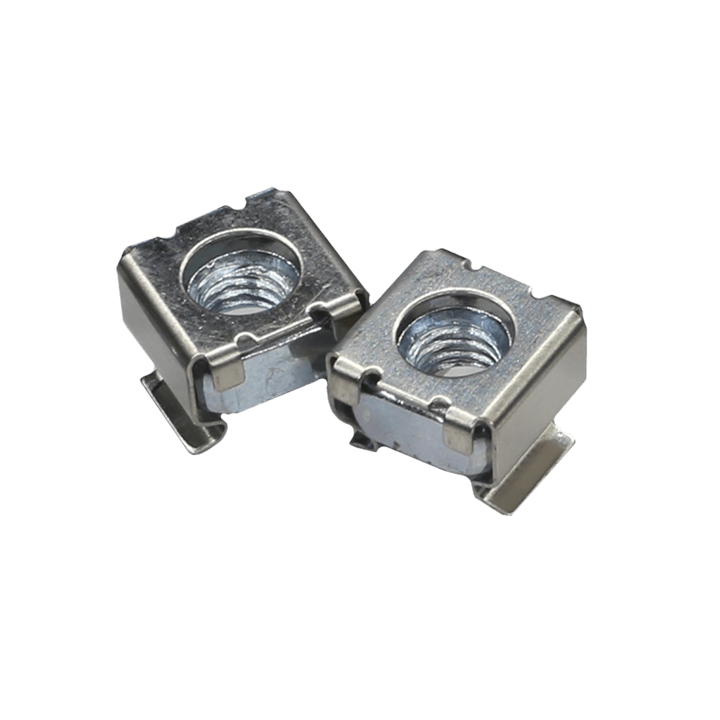

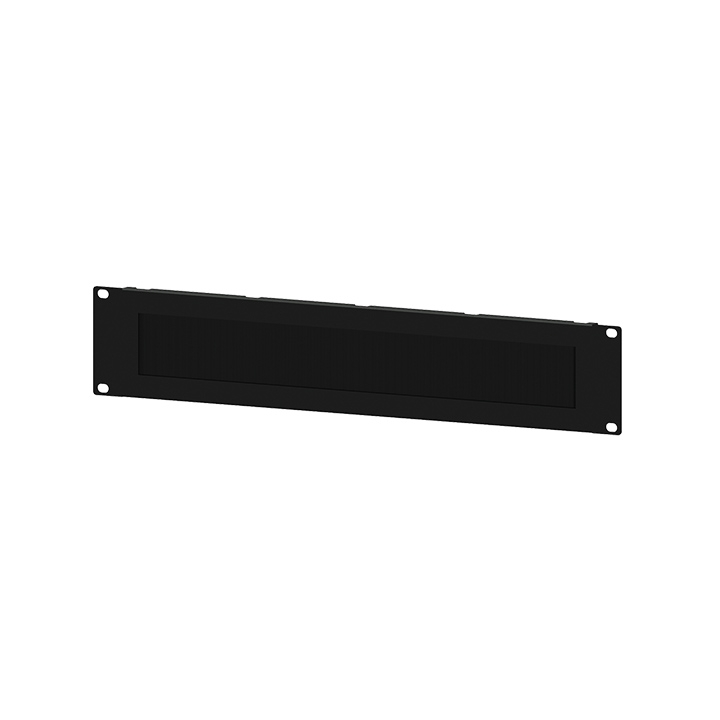

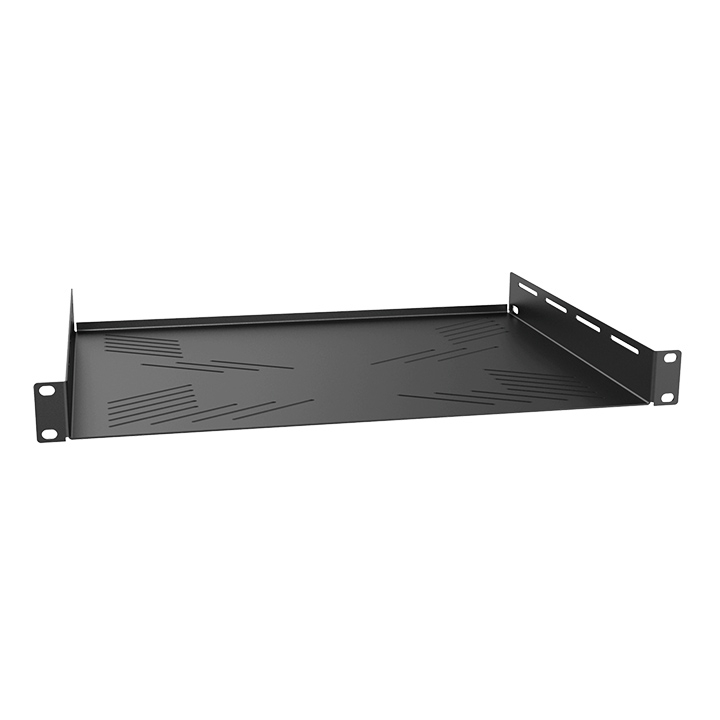

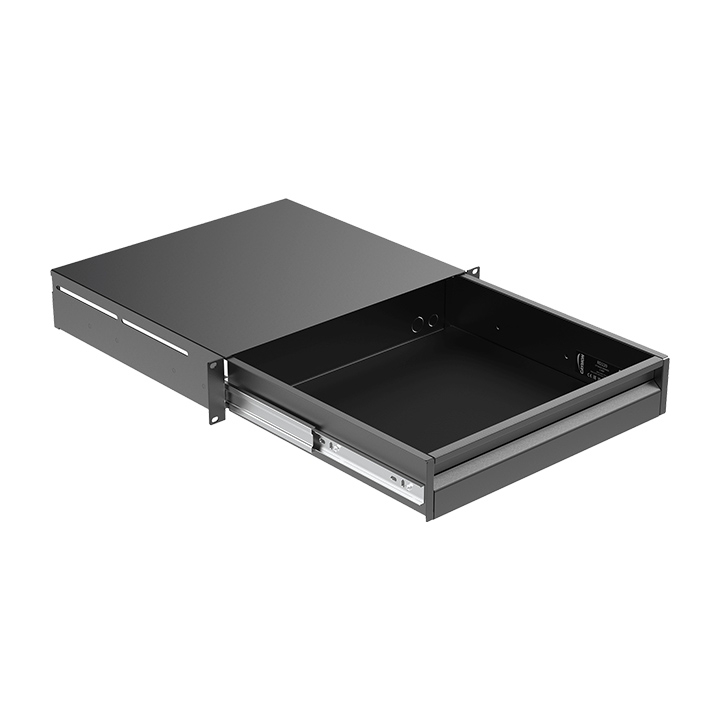

Everything you need to finish a rack installation. From blind plates, shelves, and drawers to power distribution solutions, and cage nuts & bolts. These items are key to fully completing your custom builds.

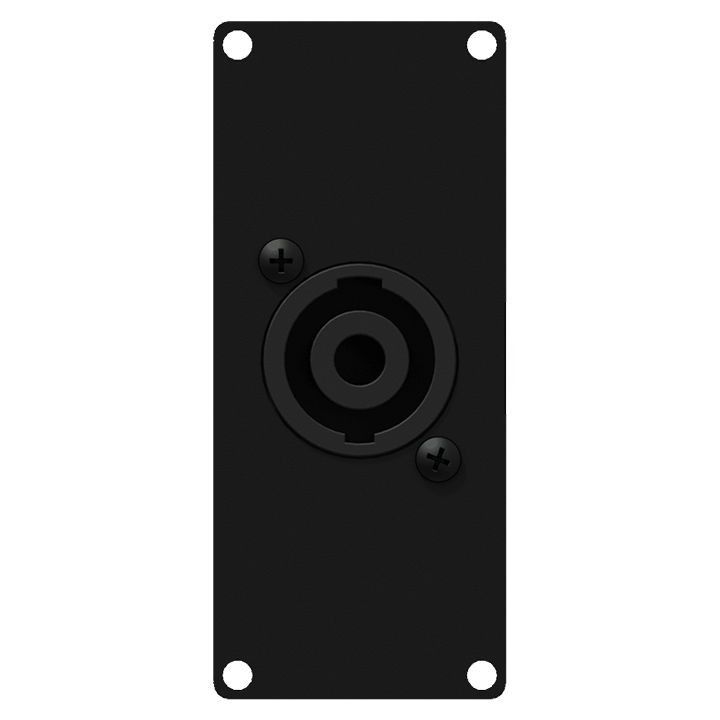

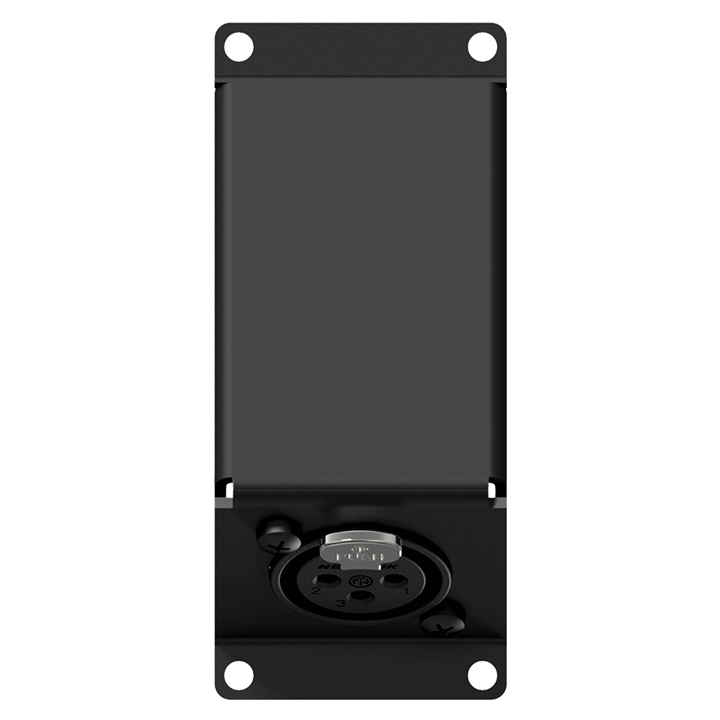

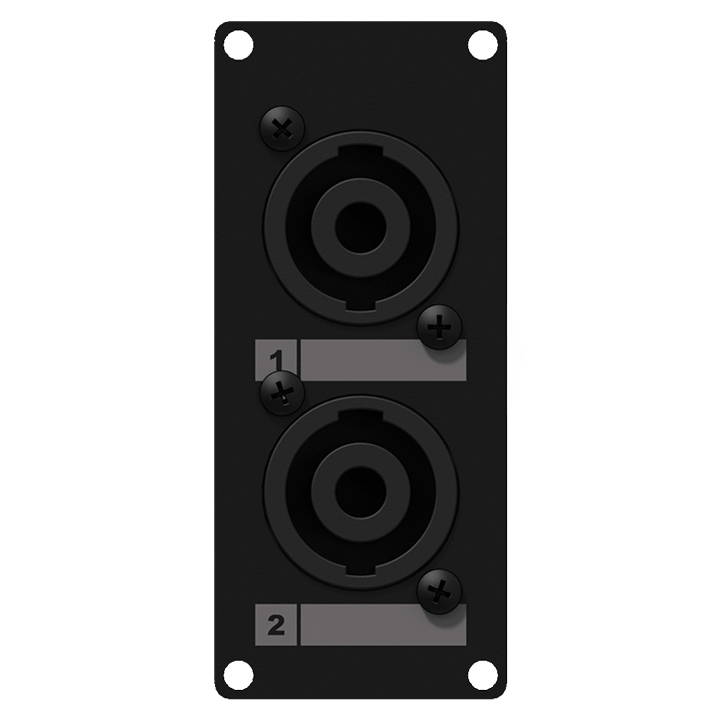

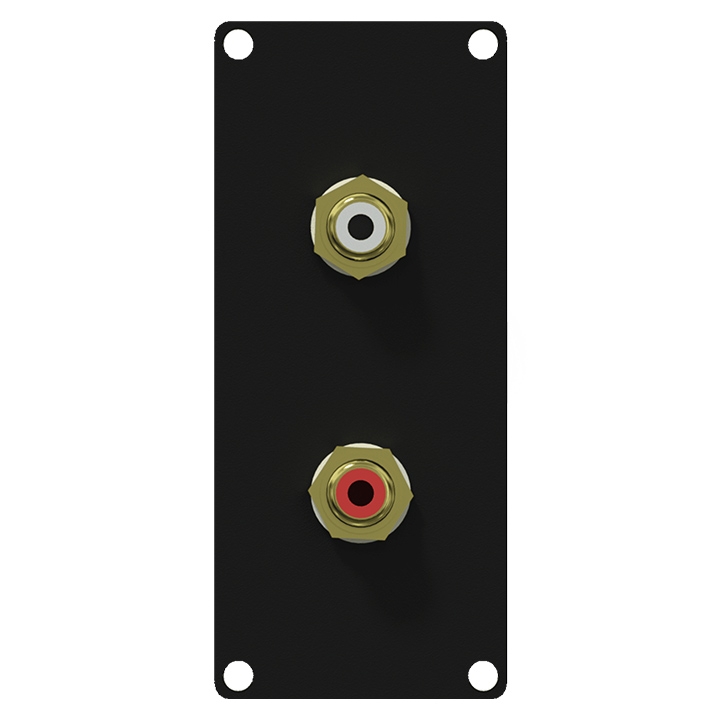

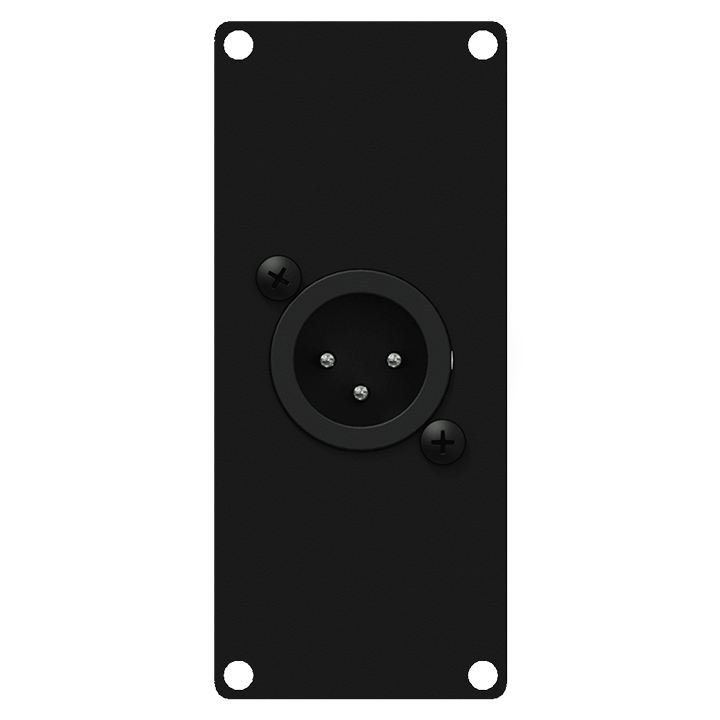

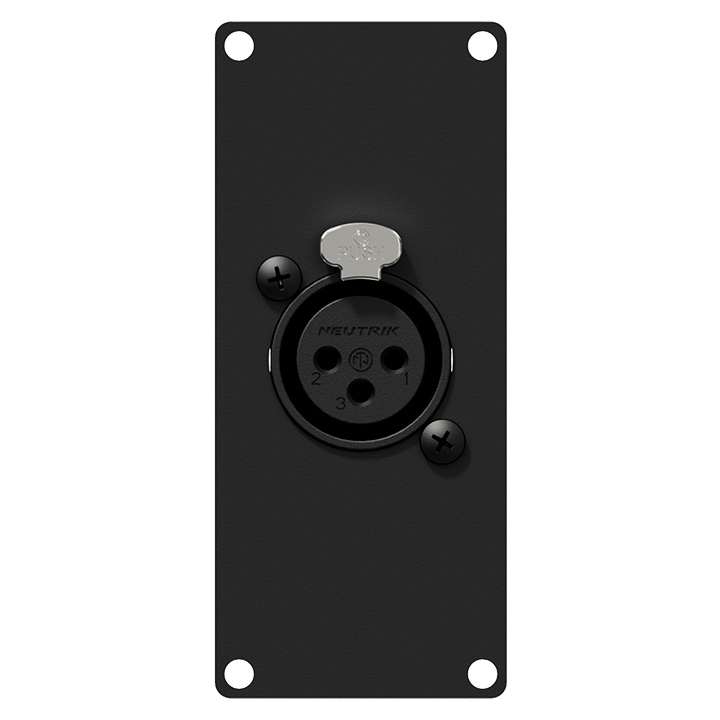

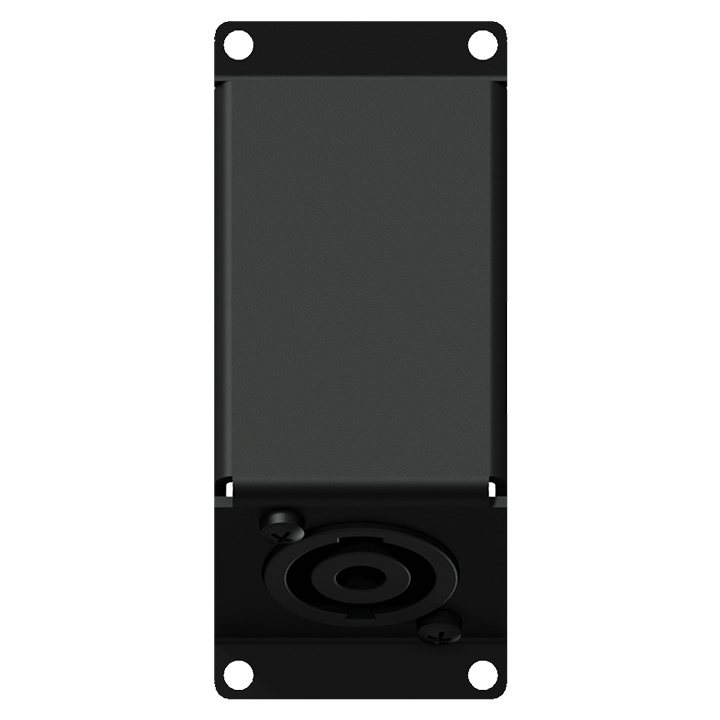

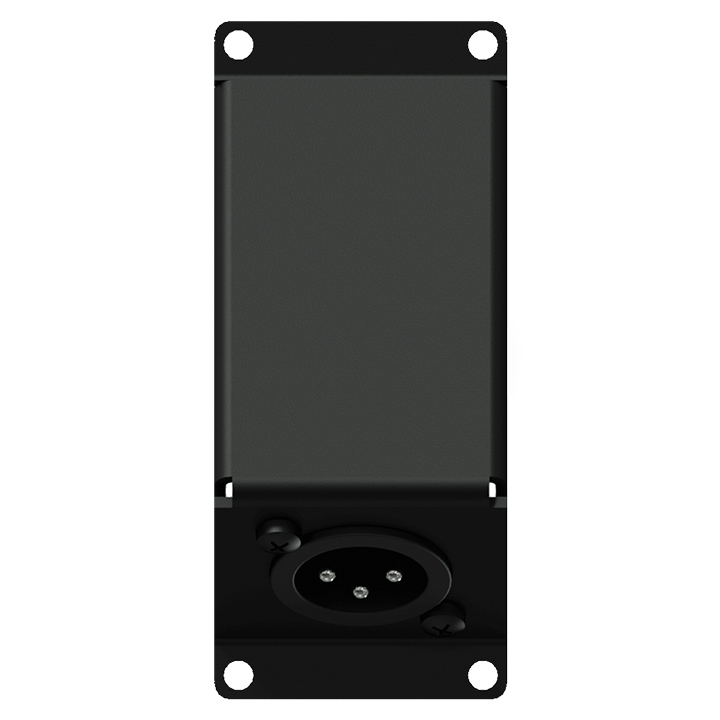

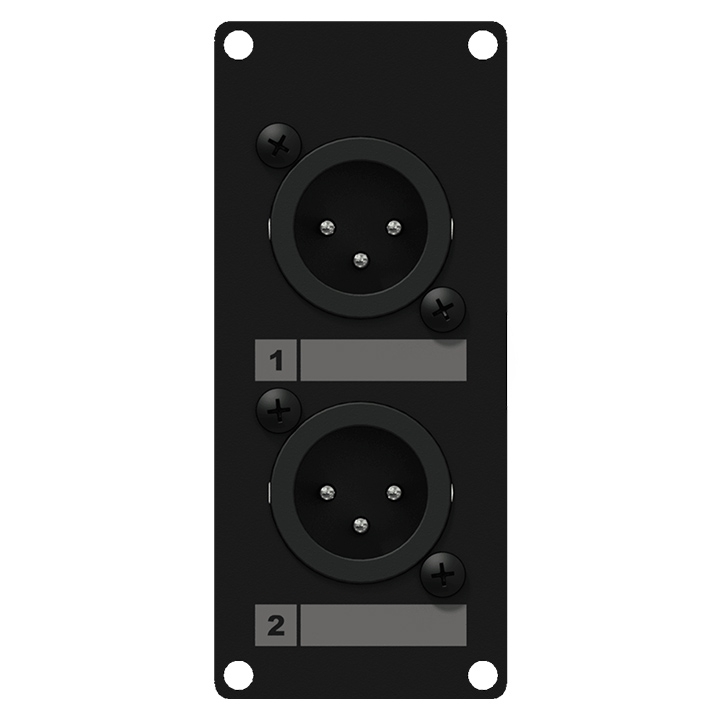

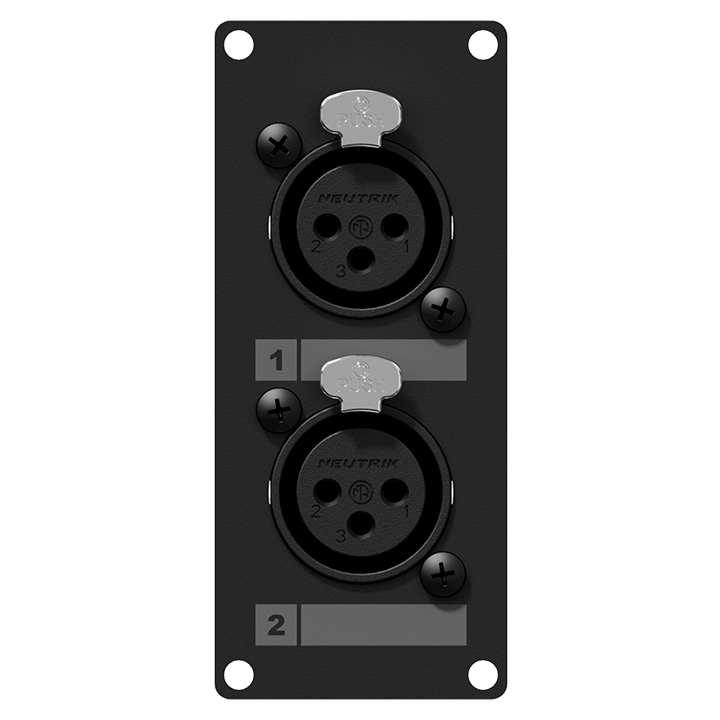

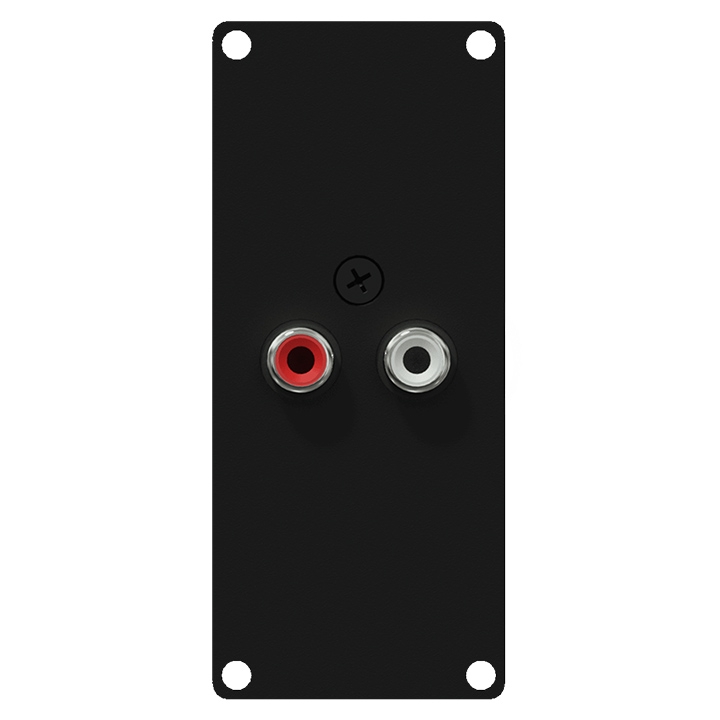

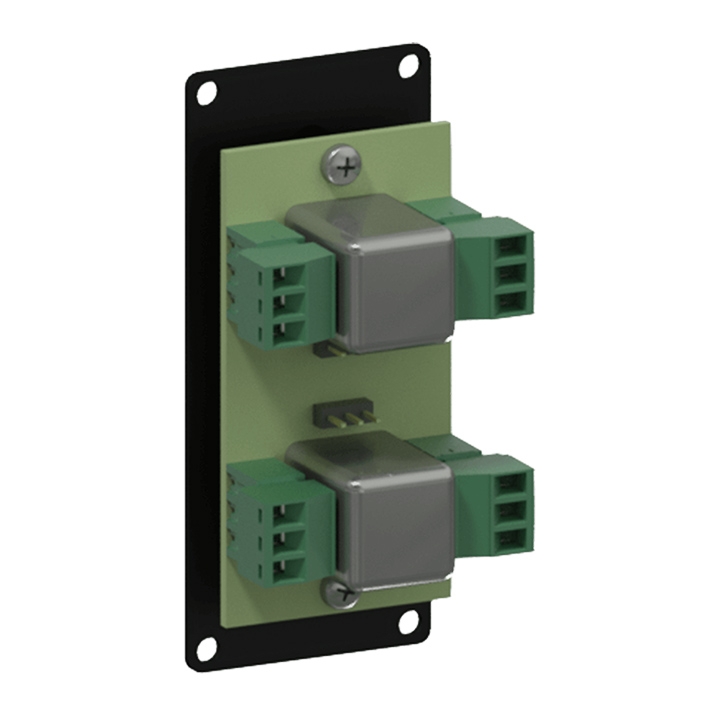

CASY Modular Solutions - Audio

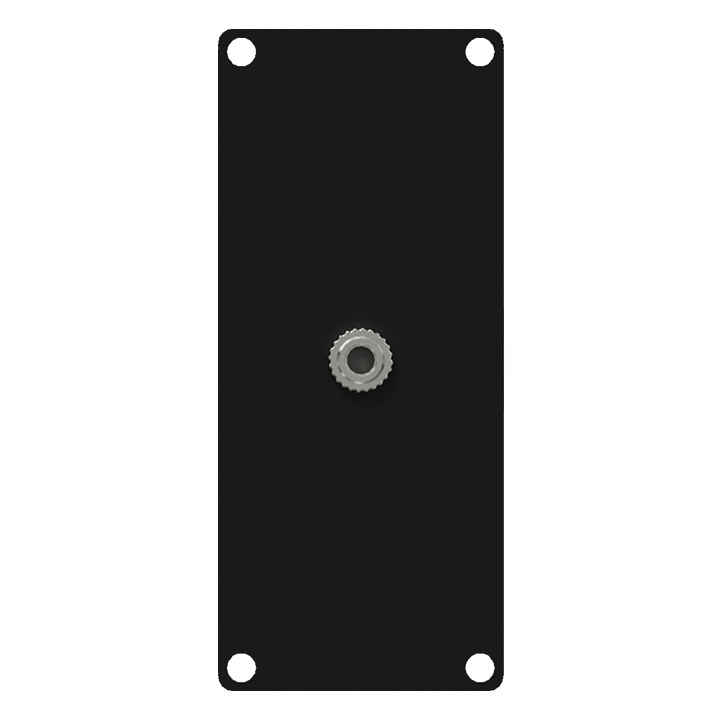

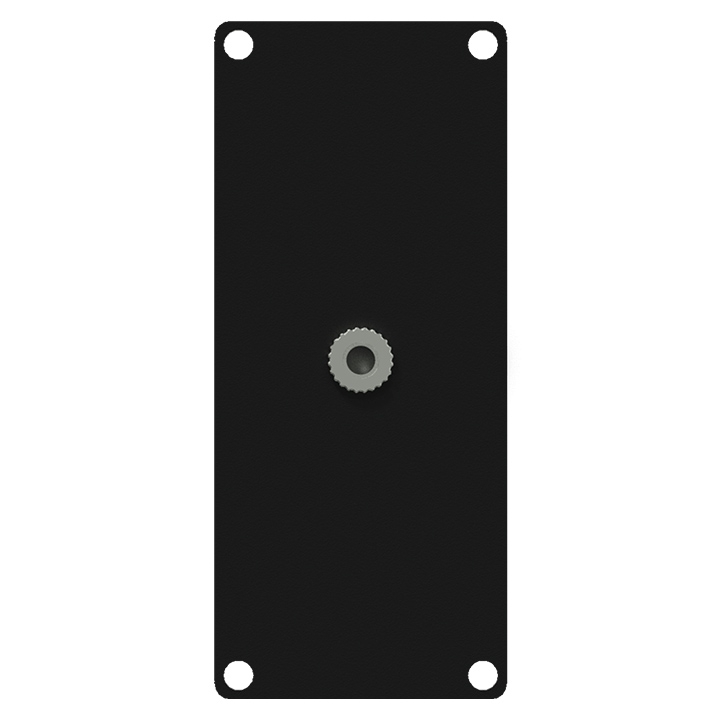

The CASY modules range consists of a large array of solderless audio, video and power connectors that can be installed into a CASY compatible chassis.

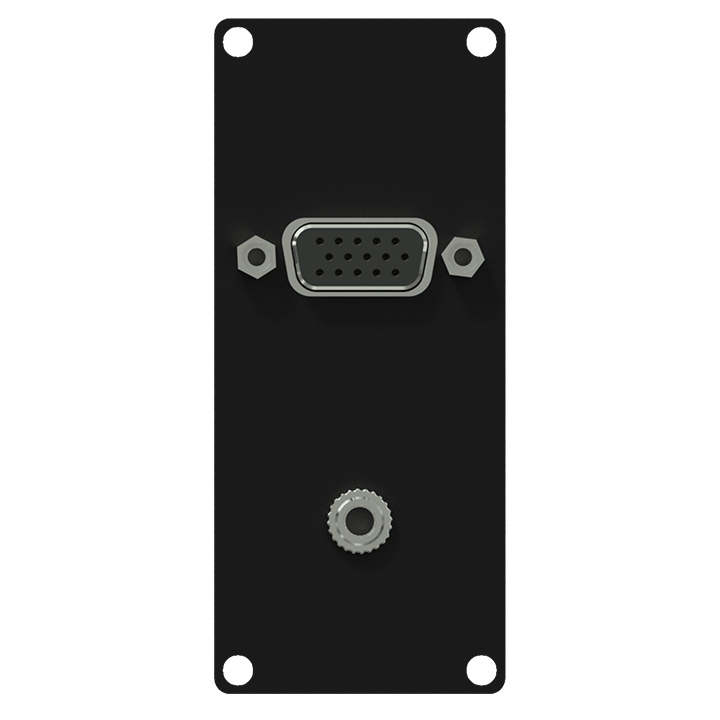

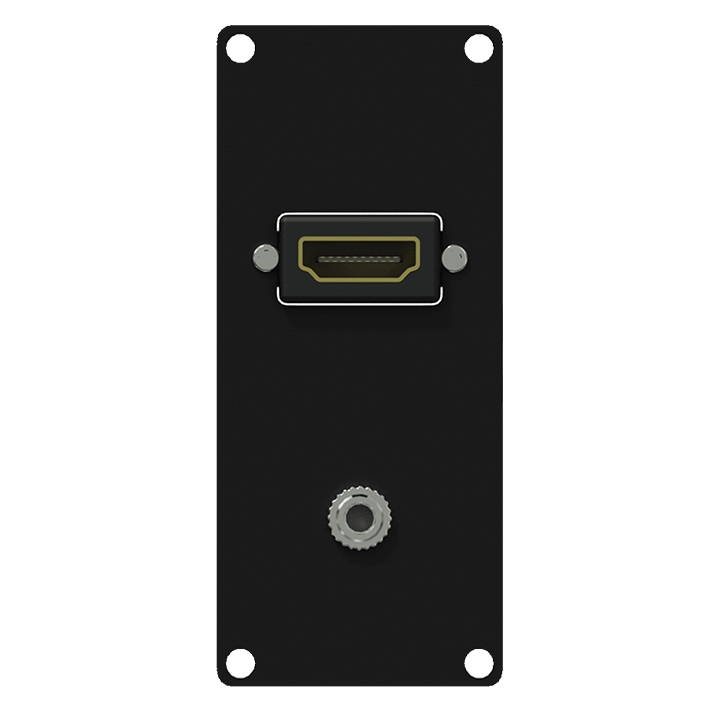

CASY Modular Solutions - Video

The CASY modules range consists of a large array of solderless audio, video, and power connectors that can be installed into a CASY compatible chassis.

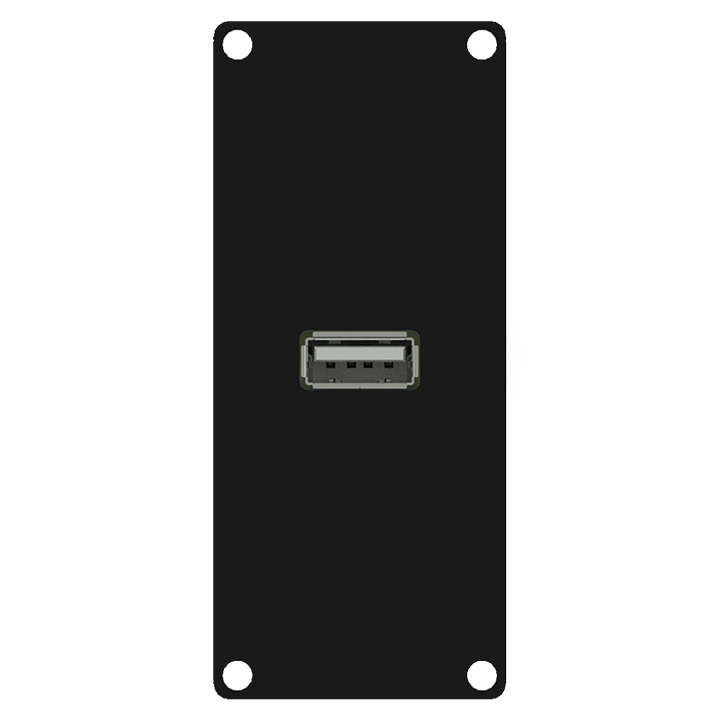

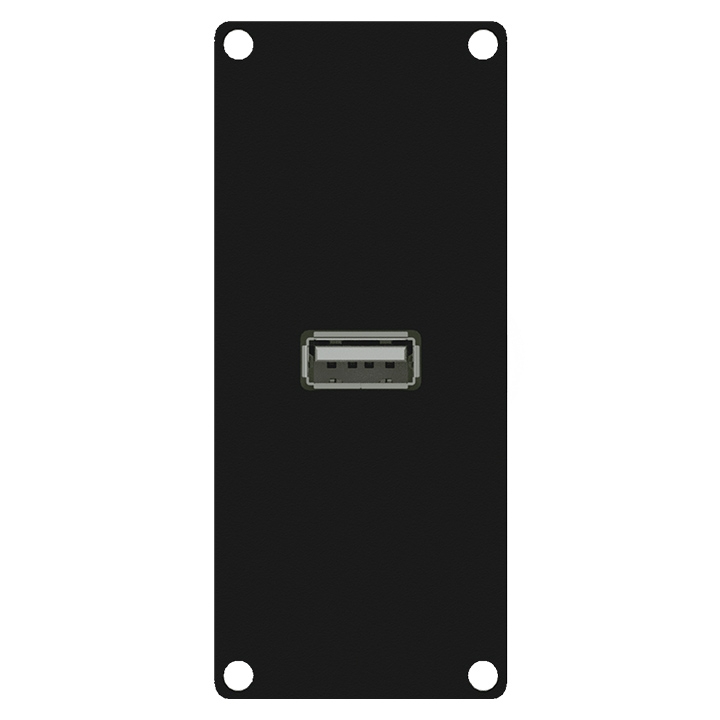

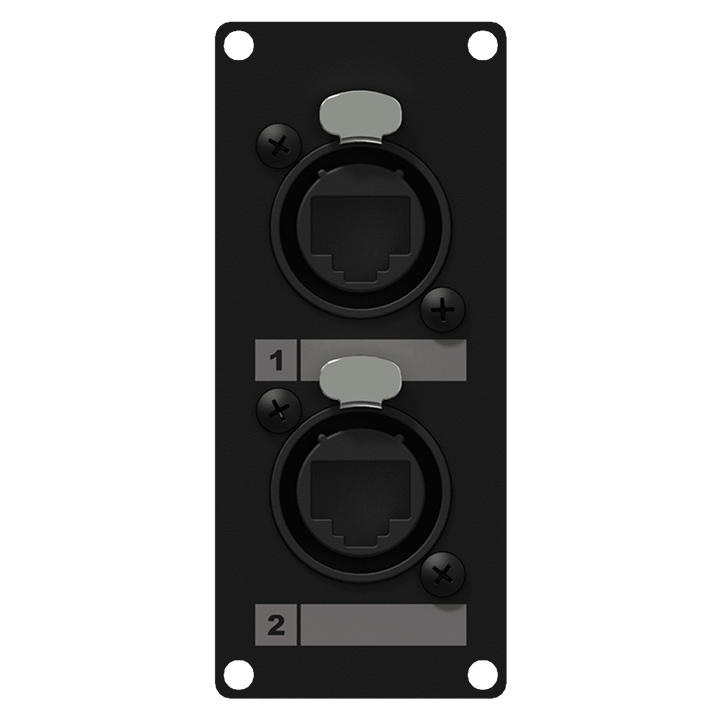

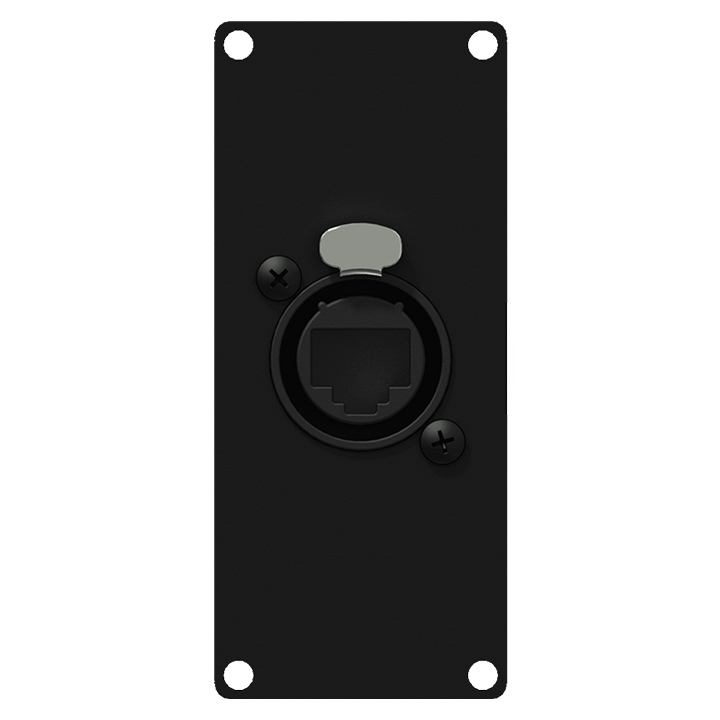

CASY Modular Solutions - Data

The CASY modules range consists of a large array of solderless audio, video, and power connectors that can be installed into a CASY compatible chassis.

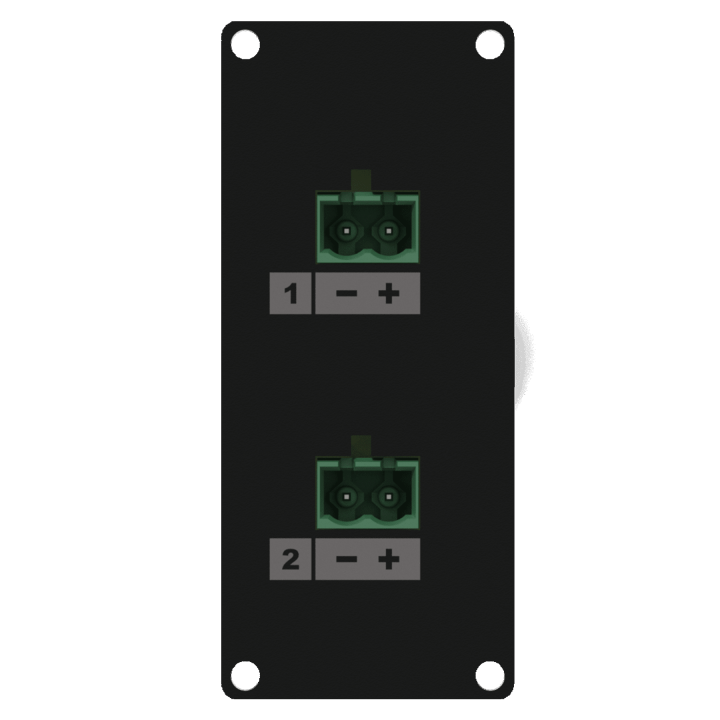

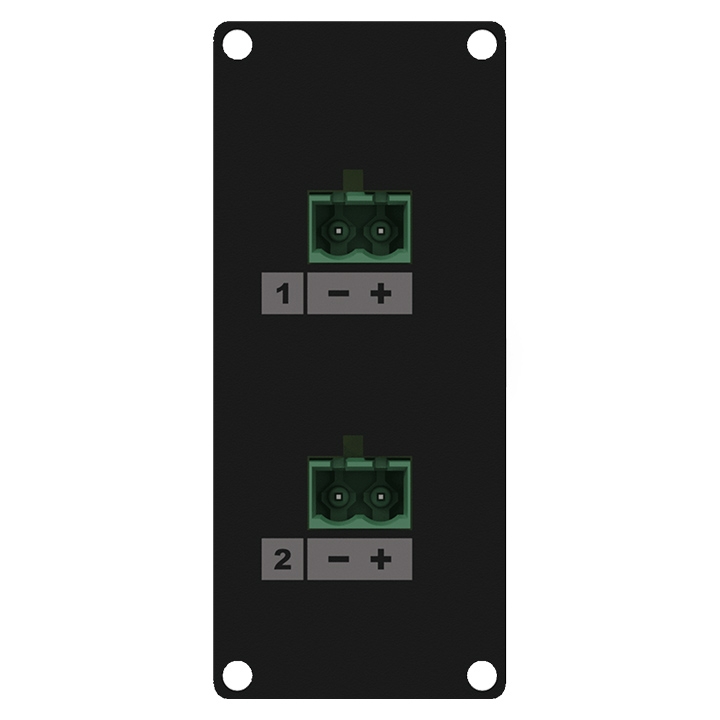

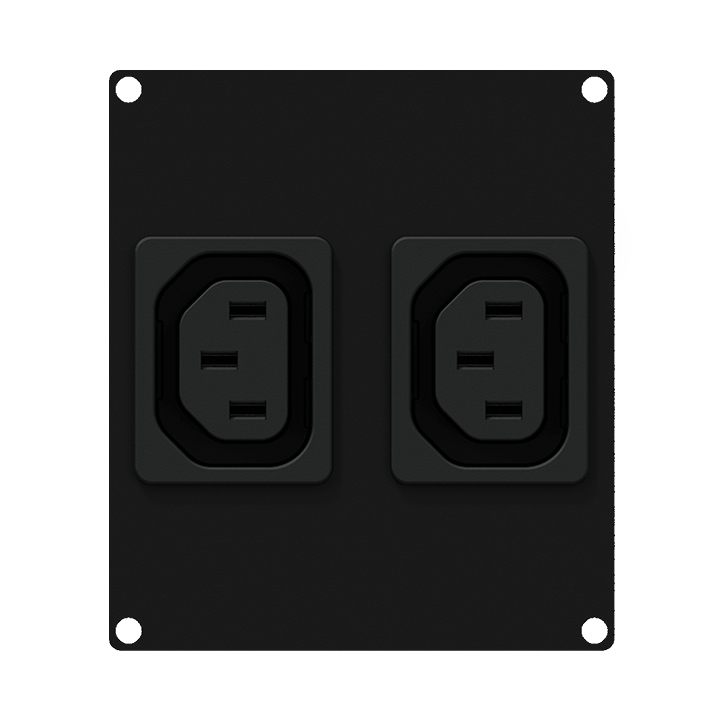

CASY Modular Solutions - Power

The CASY modules range consists of a large array of solderless audio, video, and power connectors that can be installed into a CASY compatible chassis.

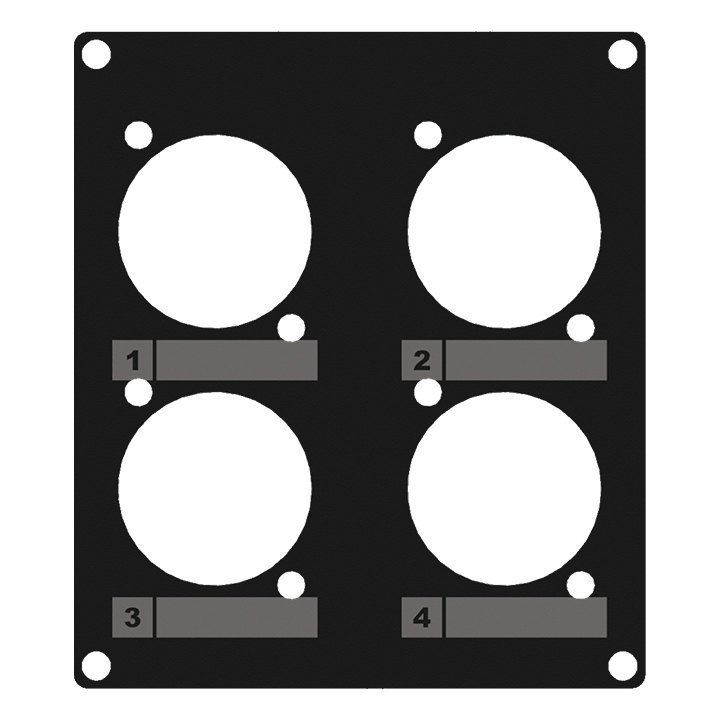

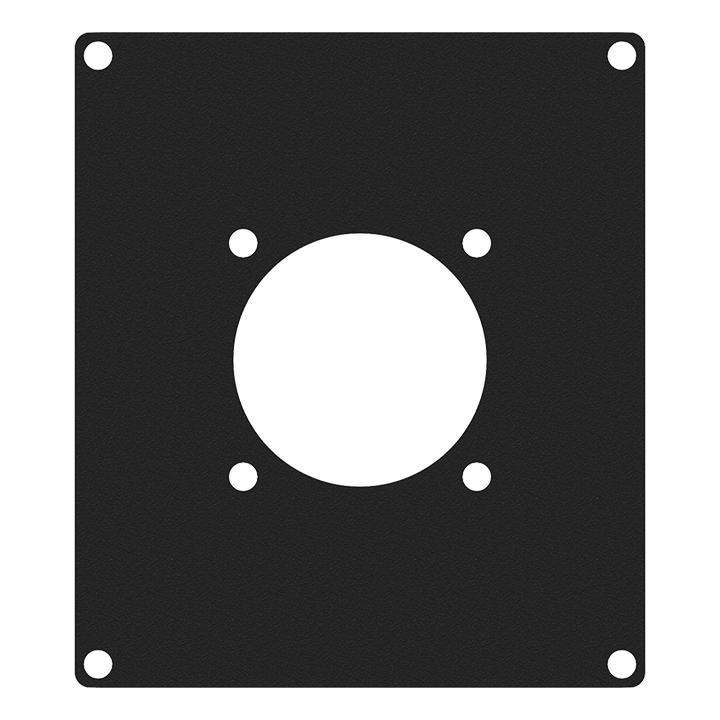

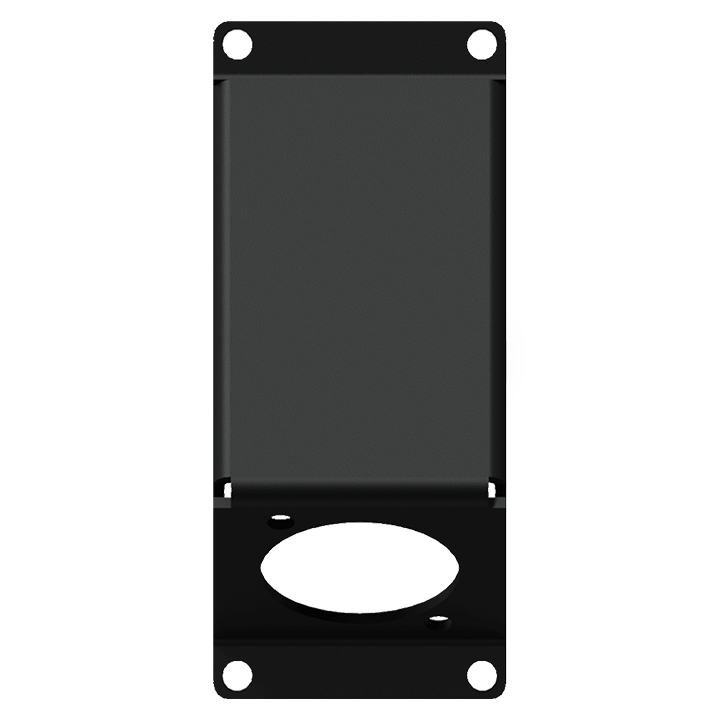

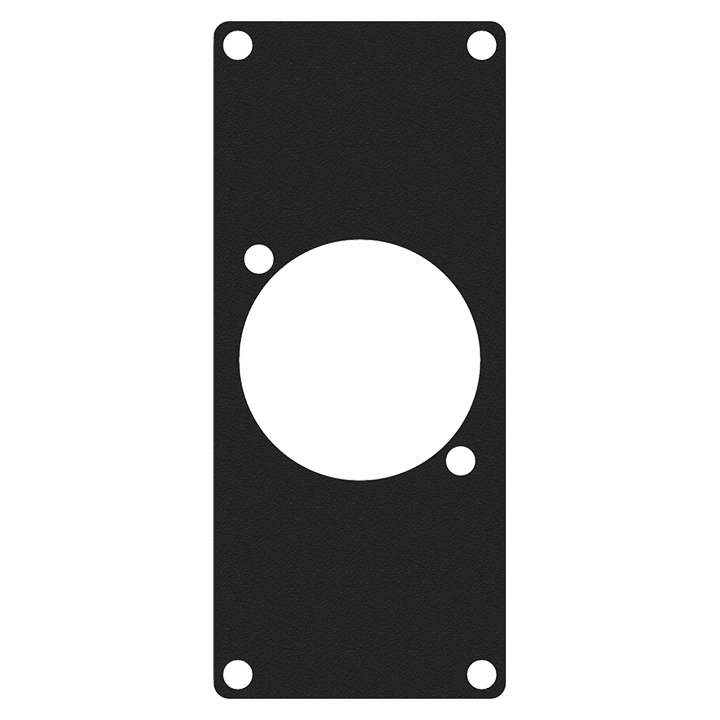

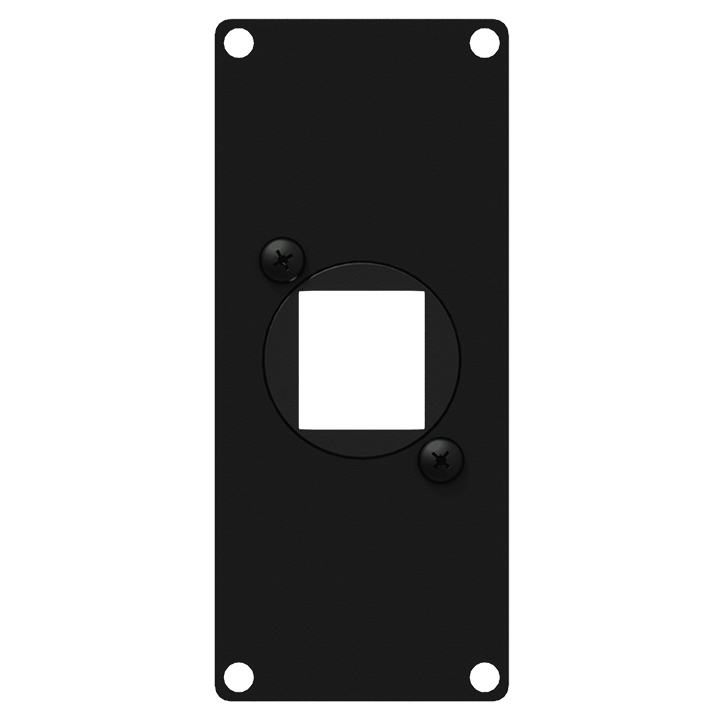

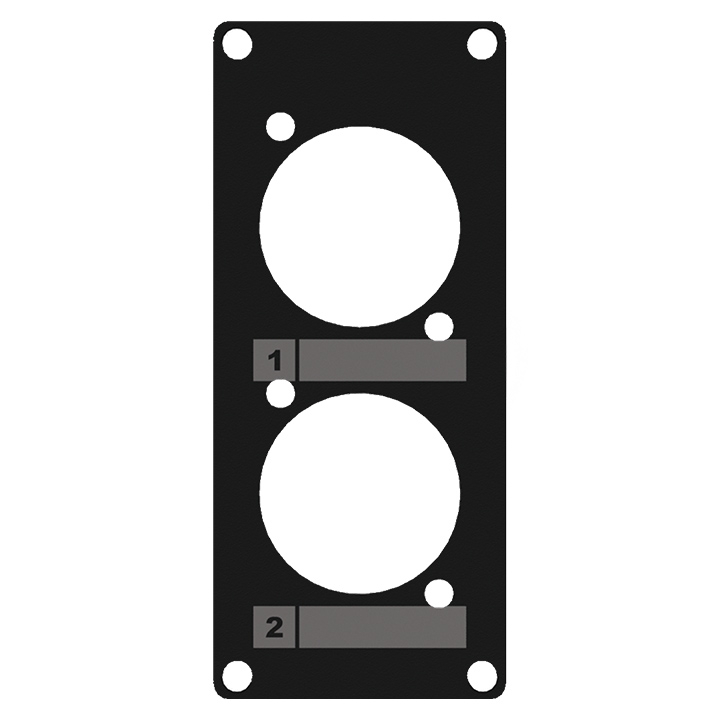

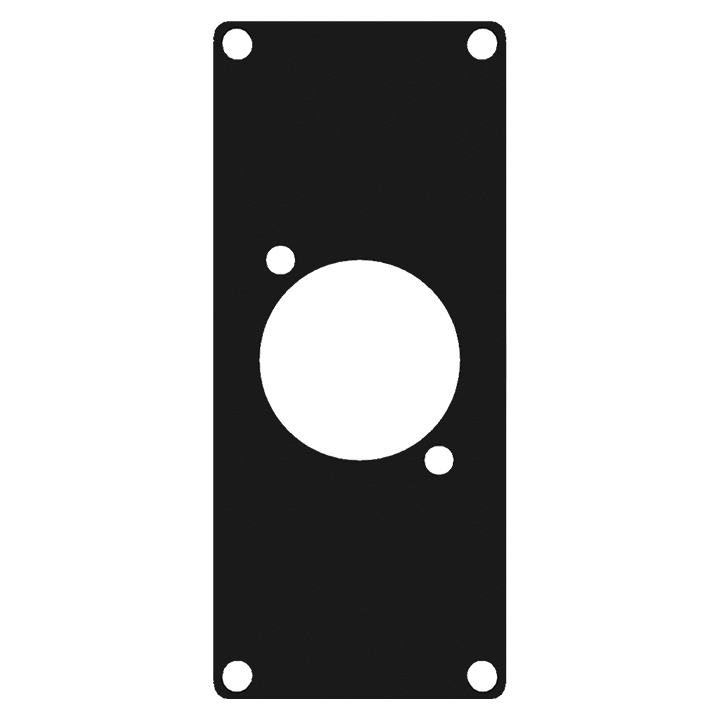

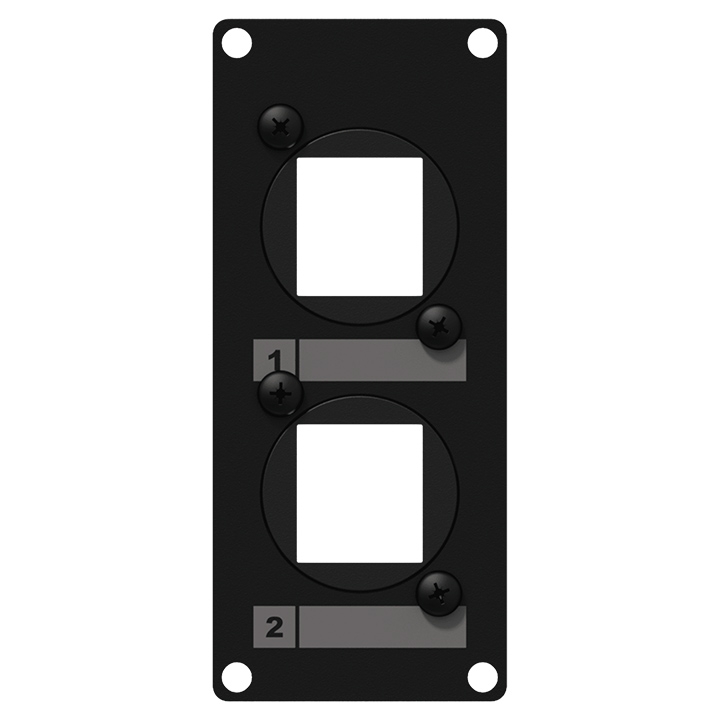

CASY Modular Solutions - Pre-made, cut-out holes

The CASY modules range consists of a large array of solderless audio, video, and power connectors that can be installed into a CASY compatible chassis. Your modular solutions for providing a mounting connection for D-size, 45x45, and PROCAB Keystone connectors.

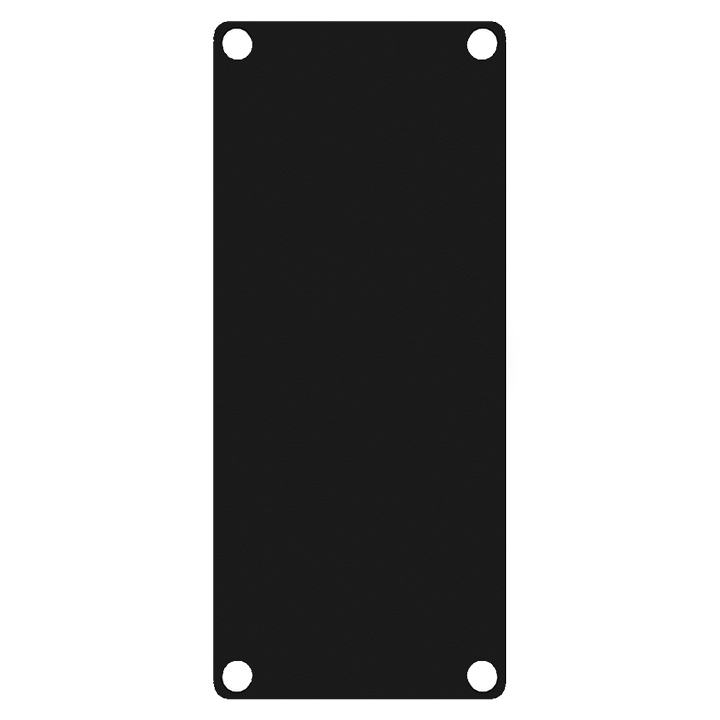

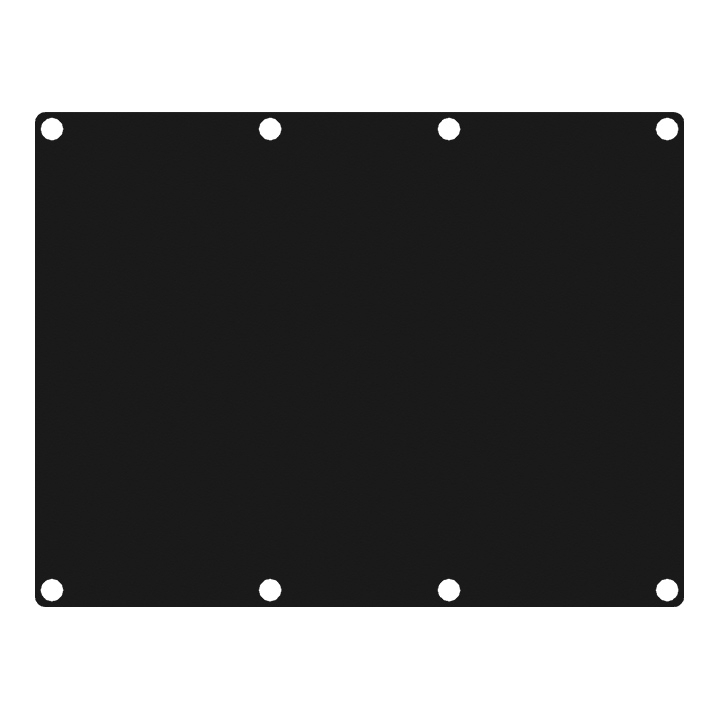

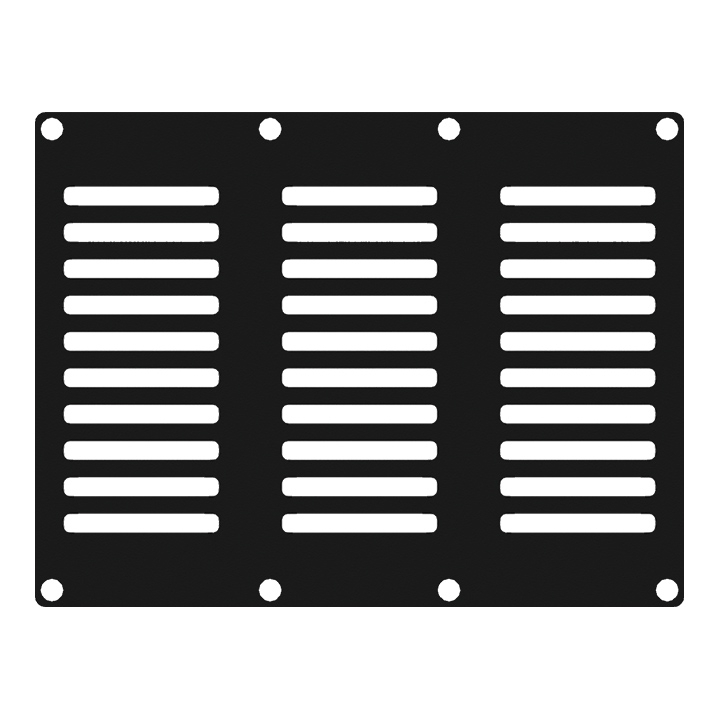

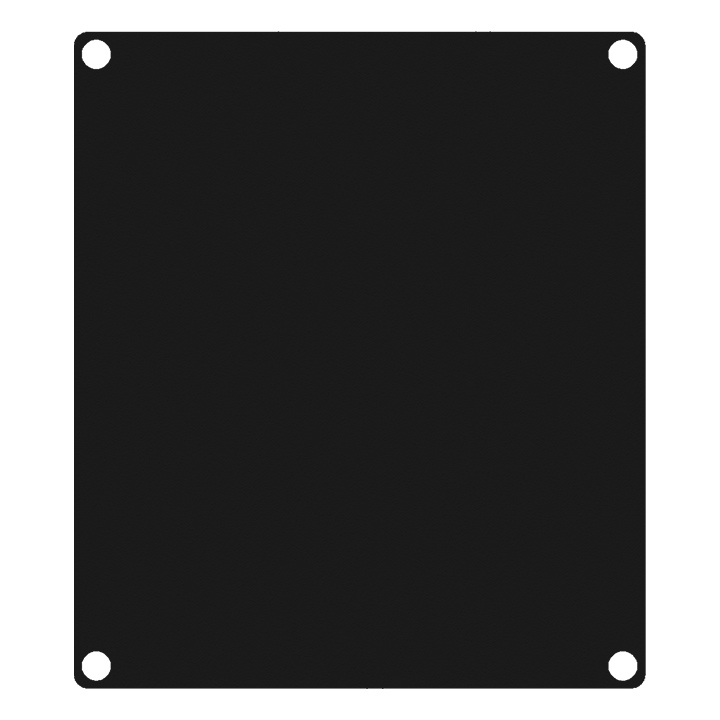

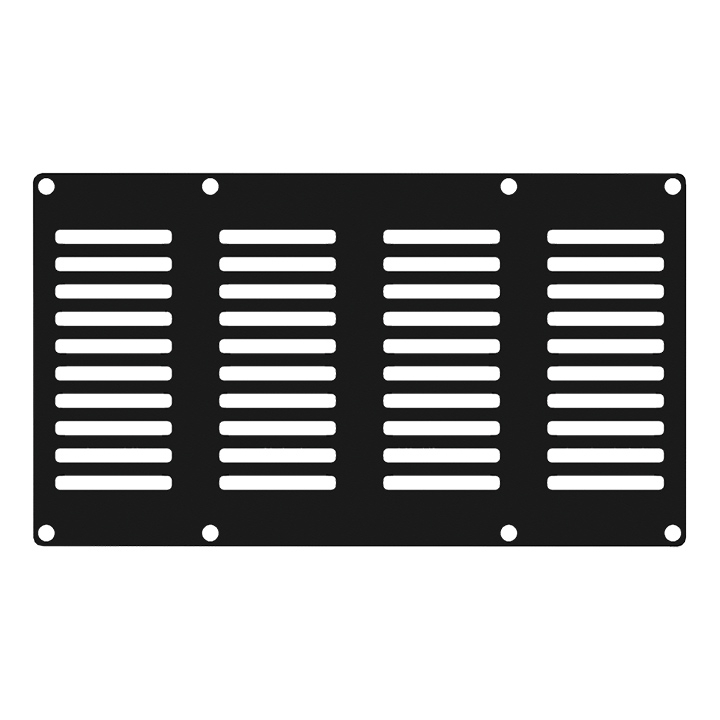

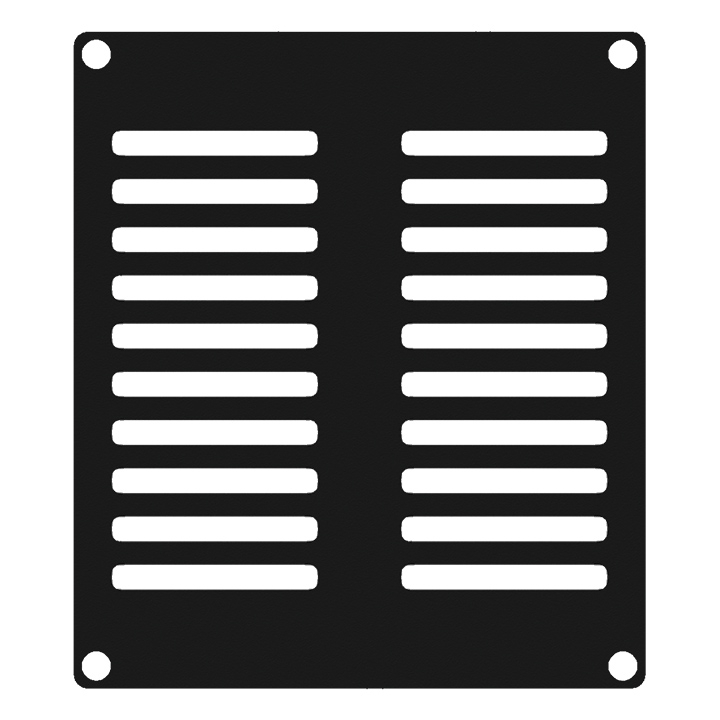

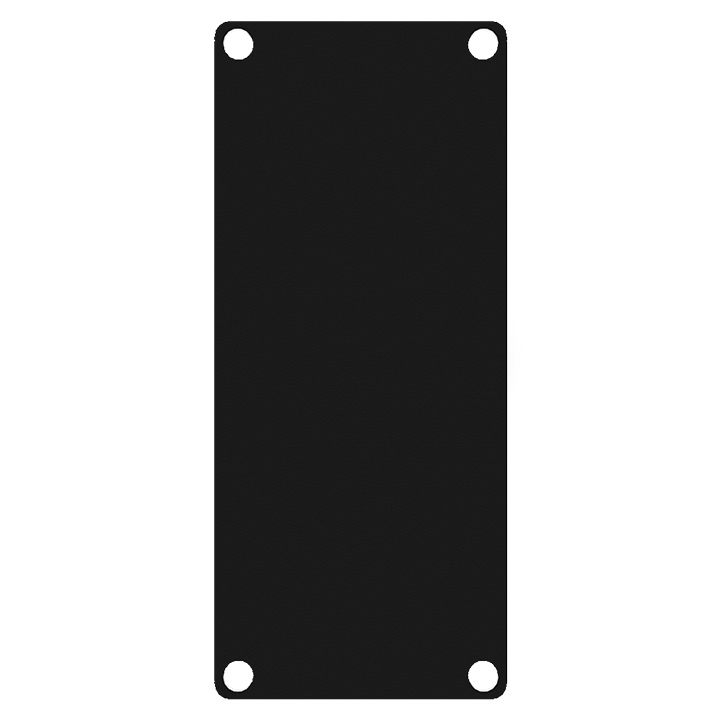

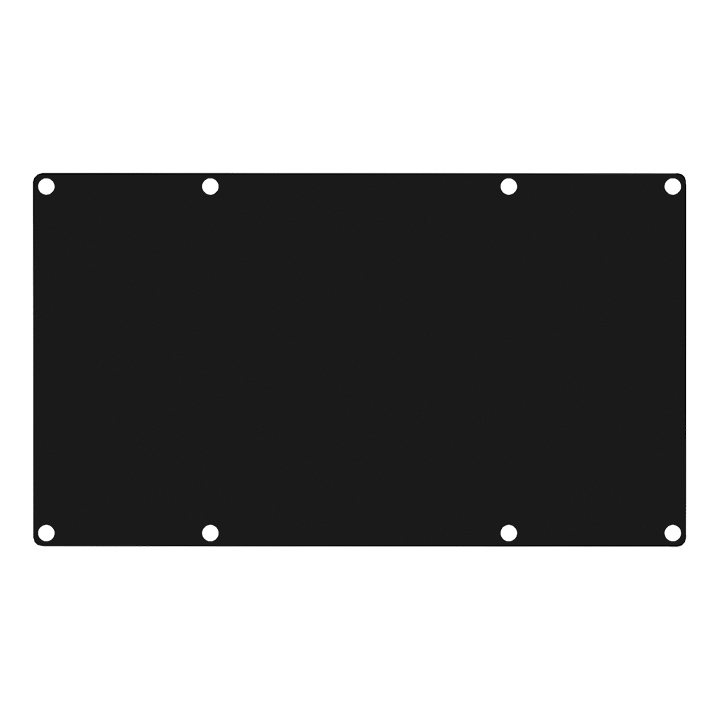

CASY Modular Solutions - Blind & ventilation

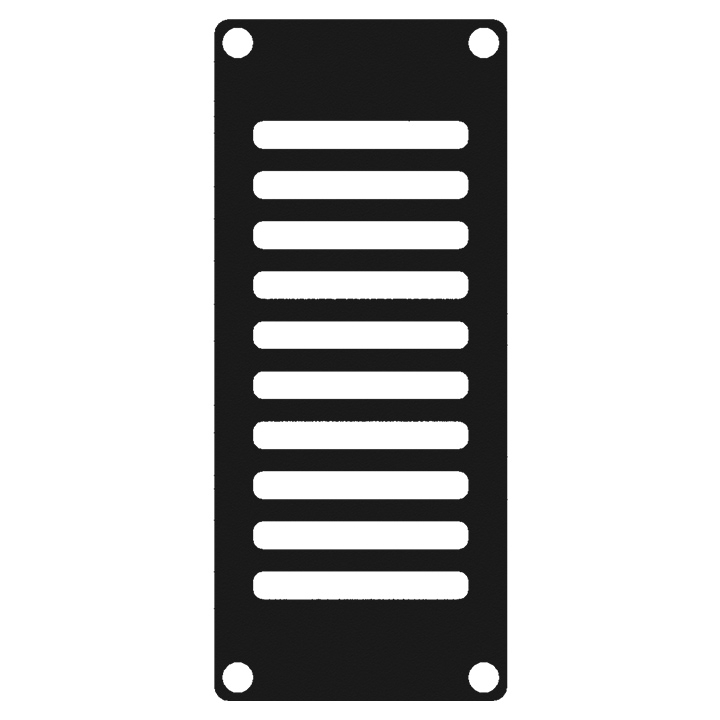

The CASY modules range consists of a large array of solderless audio, video, and power connectors that can be installed into a CASY compatible chassis. For providing a professional finish to your project or adding some extra airflow to the installation.

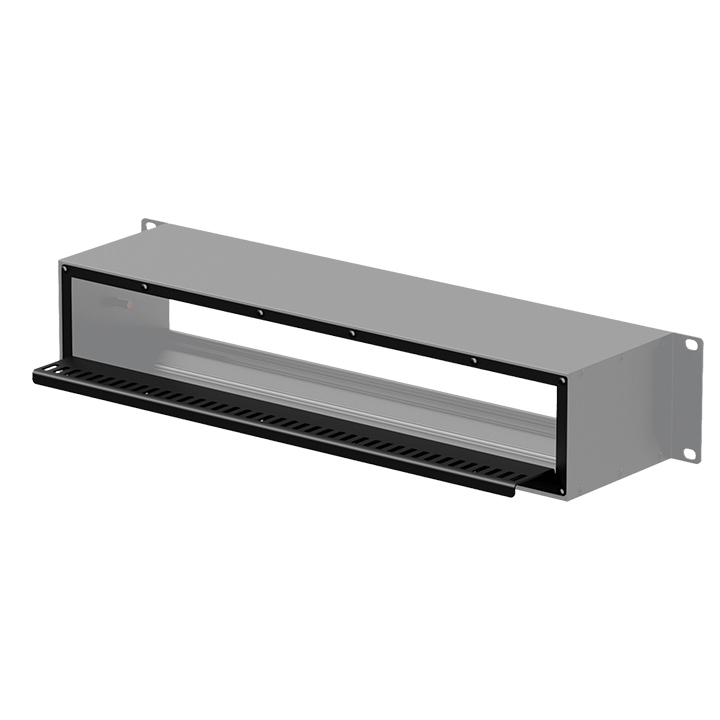

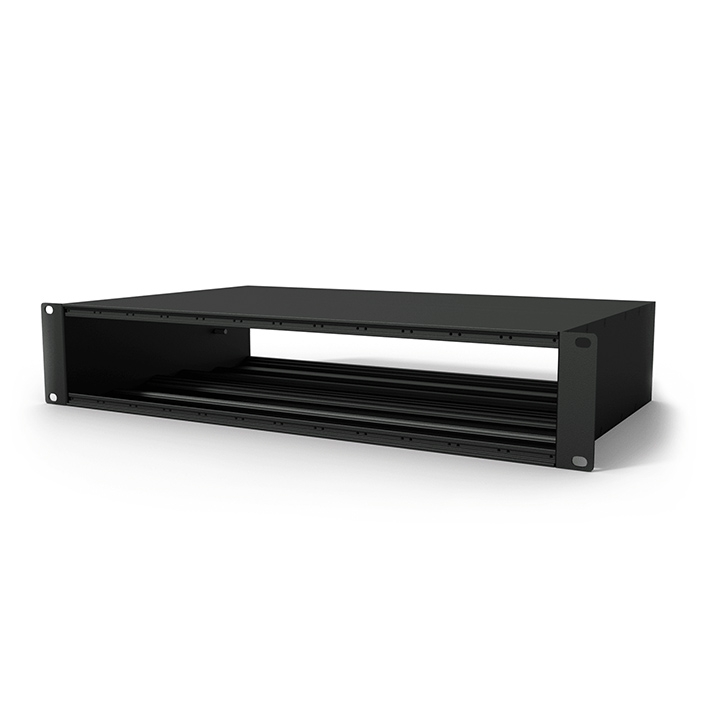

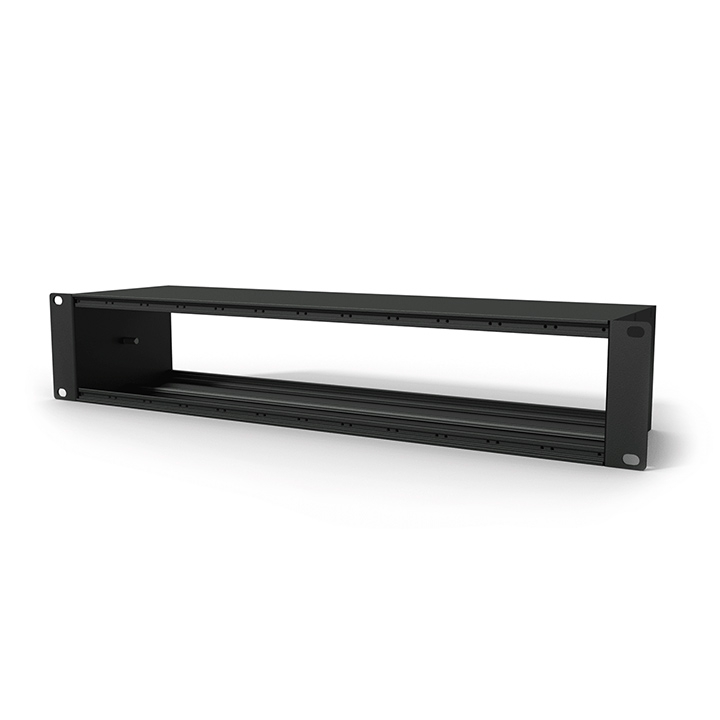

CASY Modular Solutions - 19" Chassis

CAYMON's 19” Chassis allows assembly in rack enclosures and can accommodate 12 modules on both the front and rear sides.

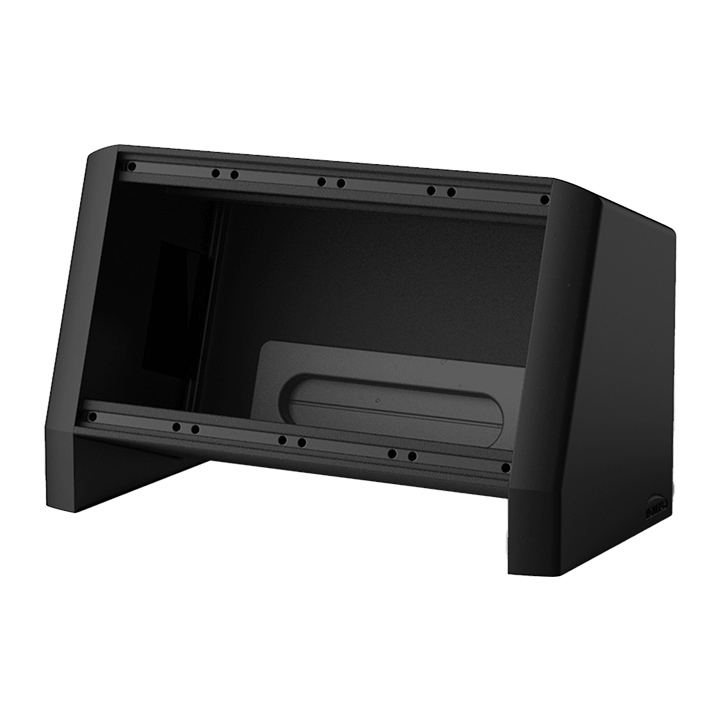

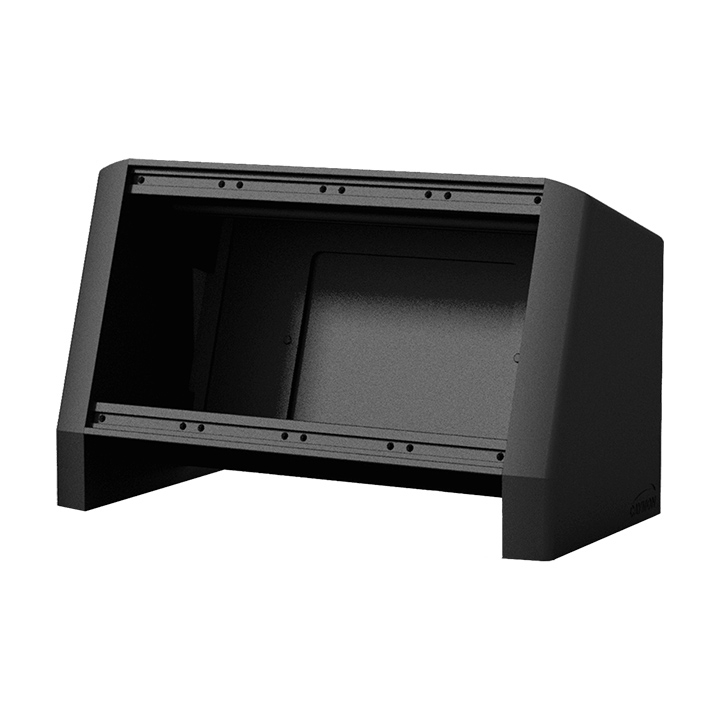

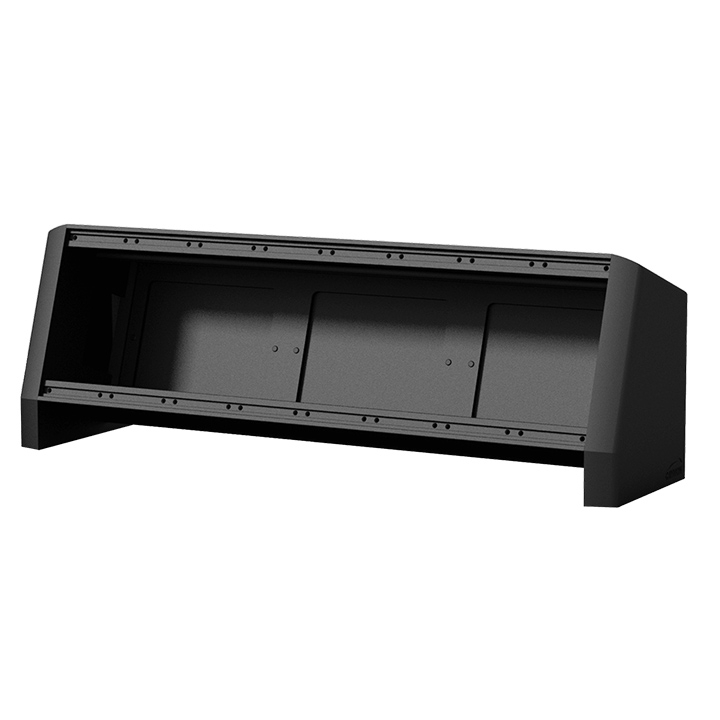

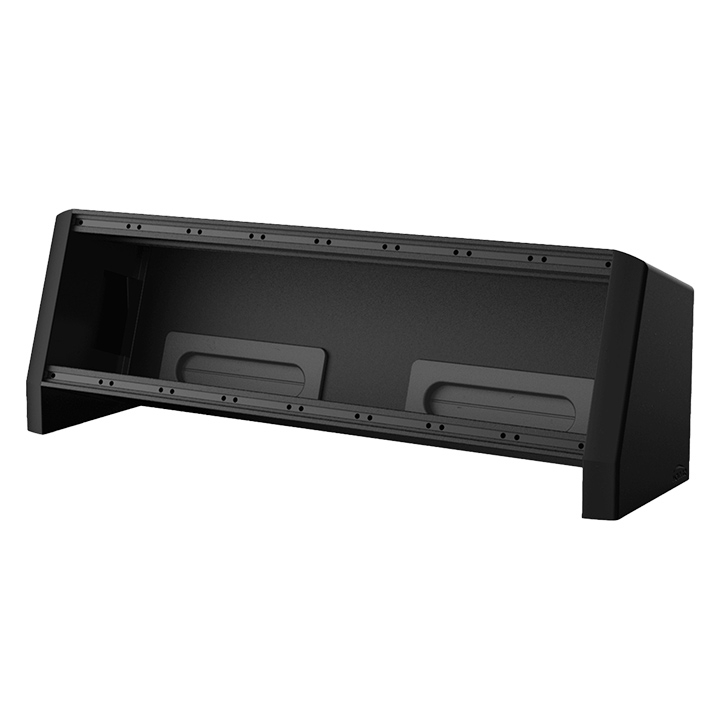

CASY Modular Solutions - Table Chassis

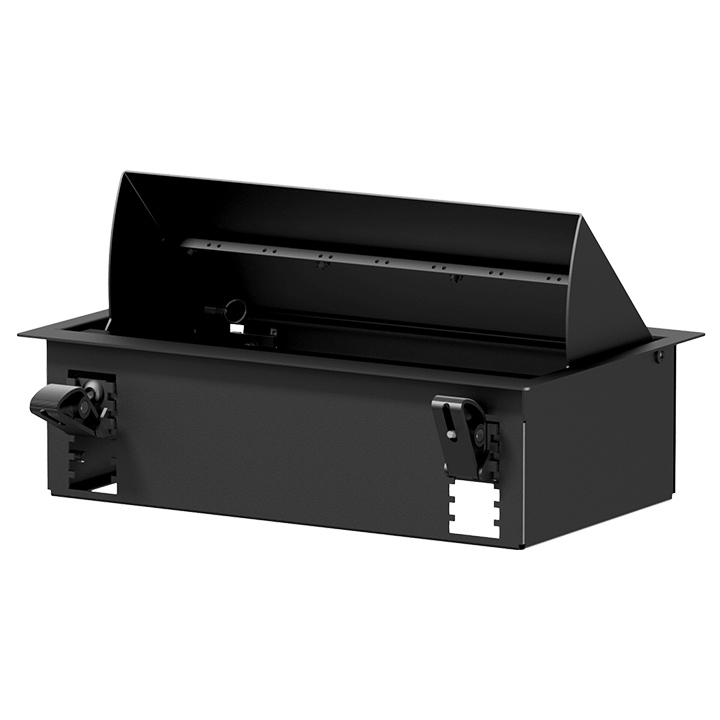

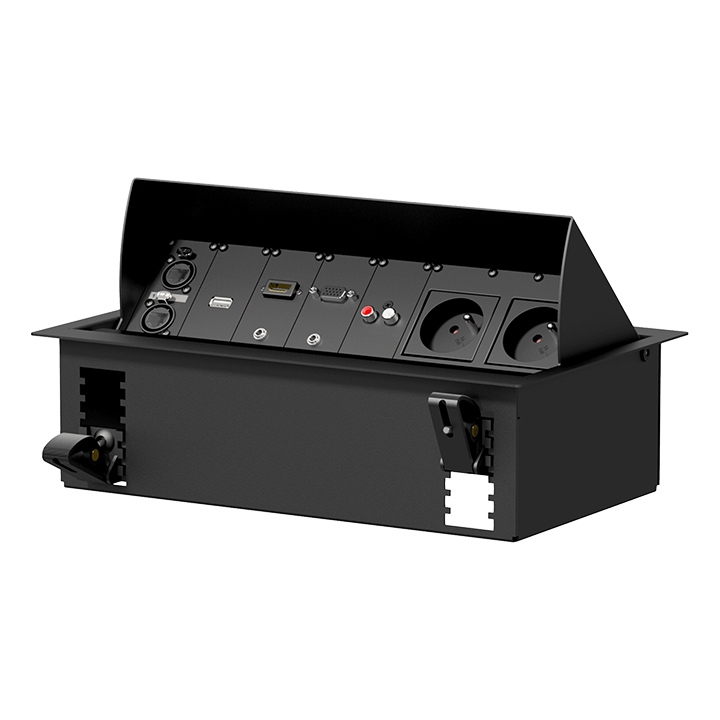

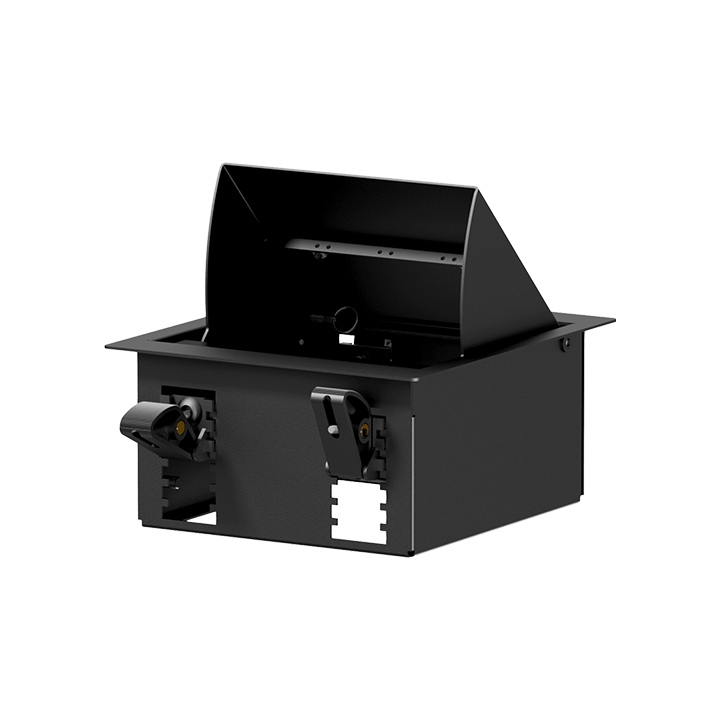

CAYMON's Table Chassis series consists of a built-in and a surface mount variant. The surface mount desktop chassis is slightly elevated and has a tilted angle for a clear view of all the implemented connections that could come in handy in a studio or broadcast environment. For a smooth and hidden look into any meeting room table, the built-in flip-out desktop chassis can contain a custom arrangement of connections that are hidden from the eye until you need them. With its sleek and simple design that can fit unnoticeably in any office desk or meeting room table, this table mount is fitted with a patented BlindSnap™ system that allows both placement and fixing of the mount from the top side.

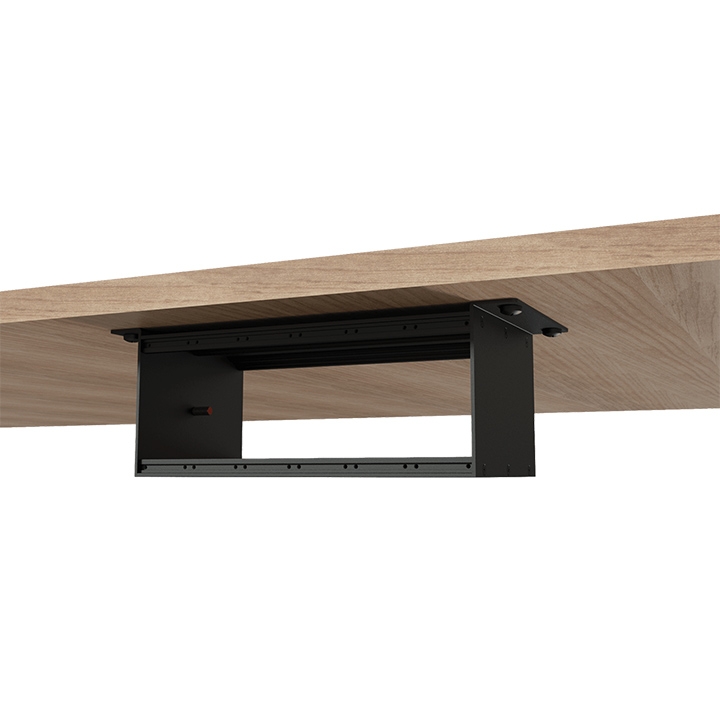

CASY Modular Solutions - Under Table Chassis

CAYMON's Under Table Chassis series consists of CAYMON under table chassis to provide easy connectivity without having to drill holes in your table. These attractive space-saving solutions are compatible with our large range of modular connection solutions so you can easily choose from a variety of connectors to suit your needs.

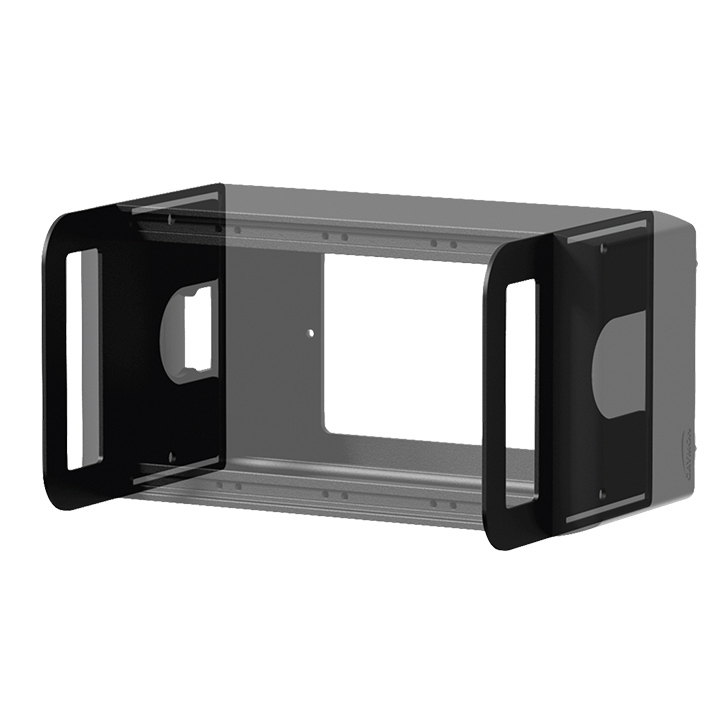

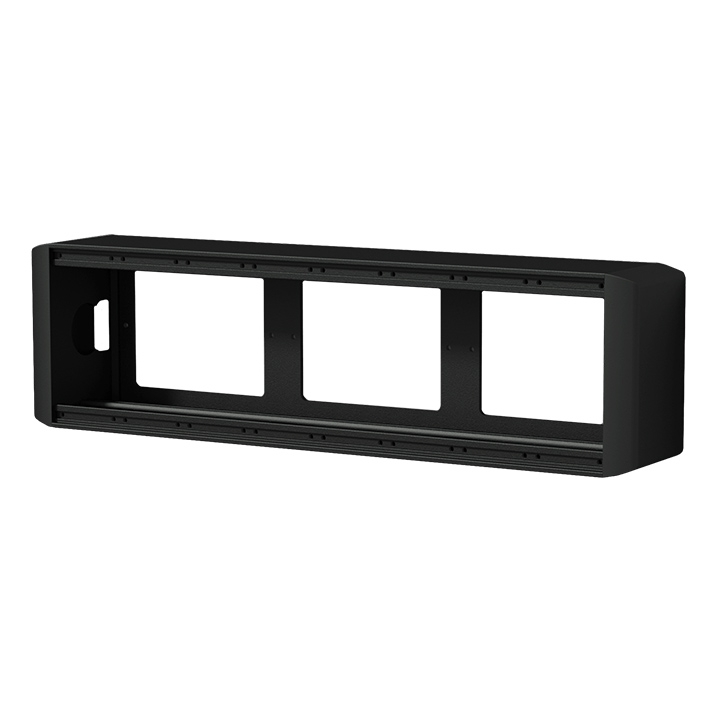

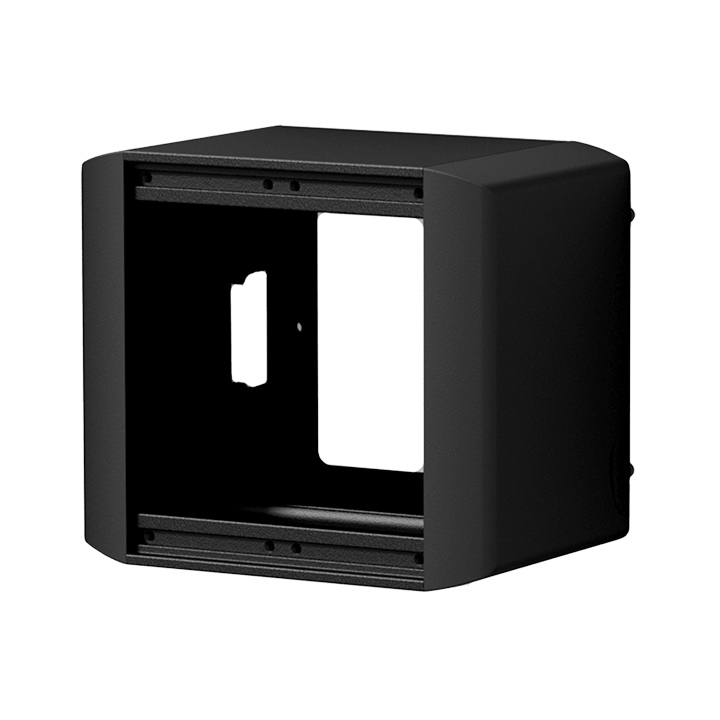

CASY Modular Solutions - On Wall Chassis

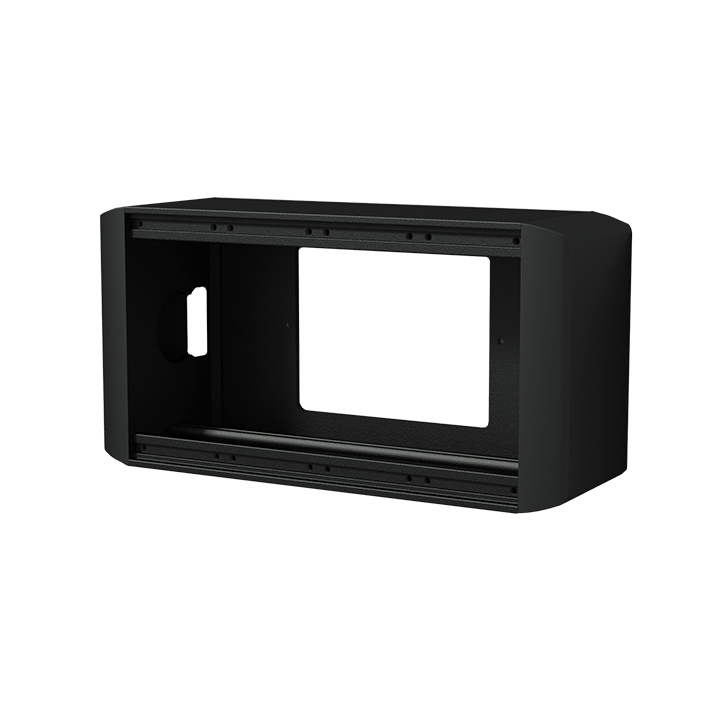

These stunningly designed on-wall chassis can merge into any environment. The chassis consists of a structured black powder-coated aluminum housing and rounded ABS sides.

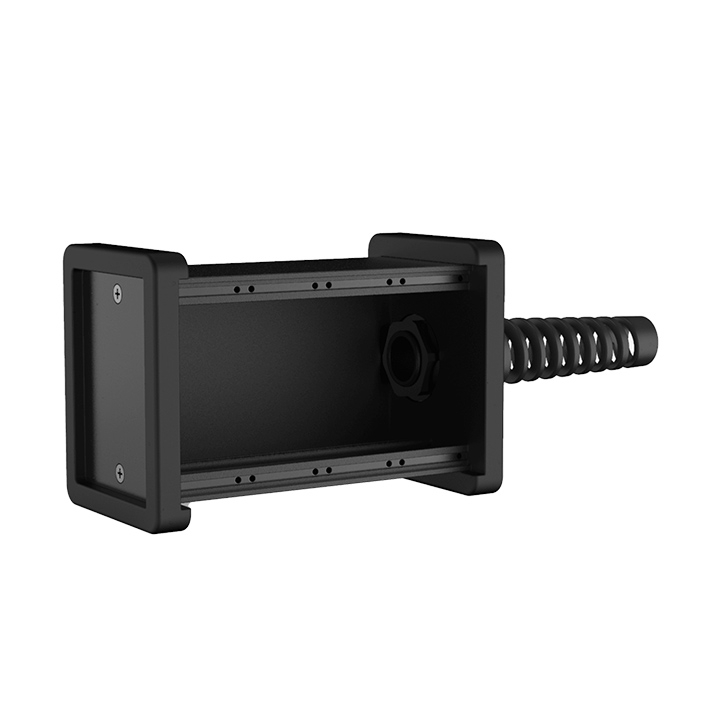

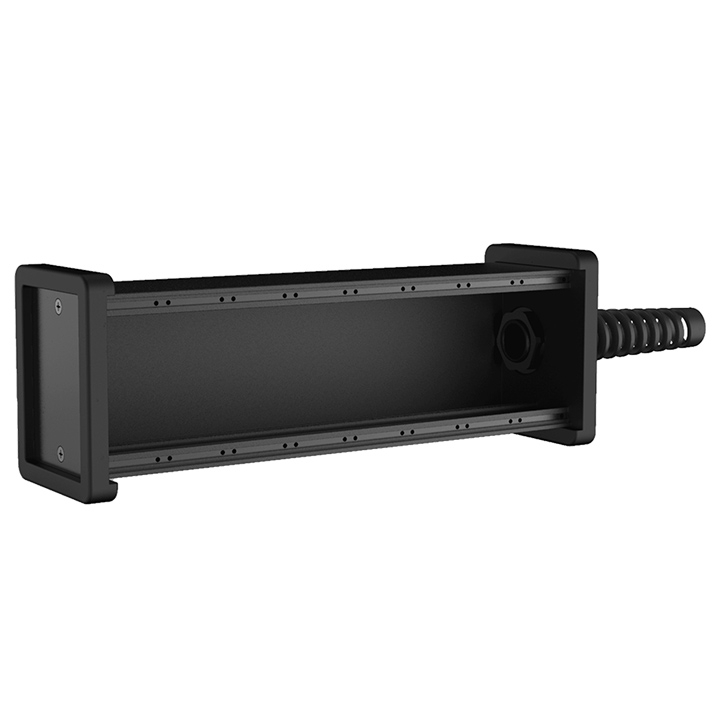

CASY Modular Solutions - Stage box

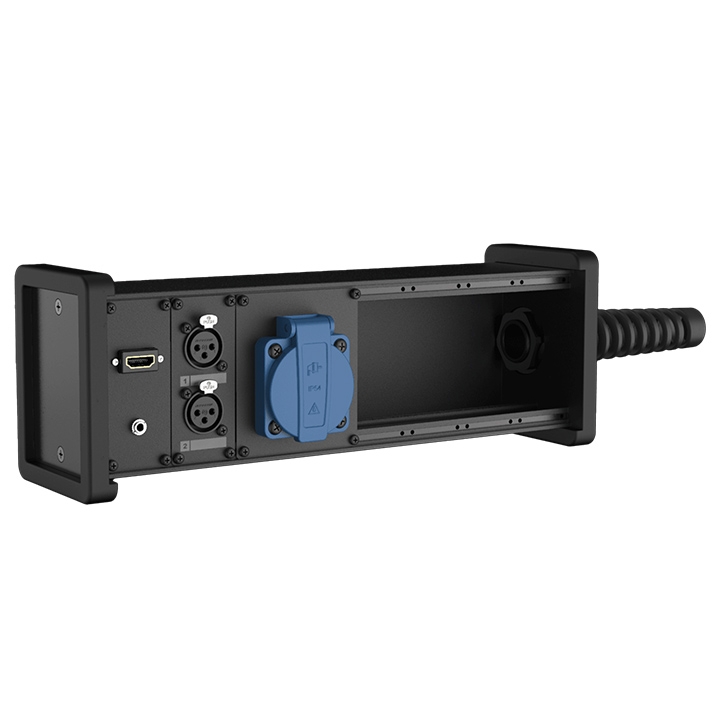

The CASY series consists of modules fitted with solderless audio, video, and power connectors that can be installed into a base unit. The only thing that was missing was a base unit that could withstand the use and abuse of stage and road. For this reason, the designers at CAYMON developed a structured black powder-coated aluminum housing with steel side ears and a long cable gland for cable protection for use on stage.

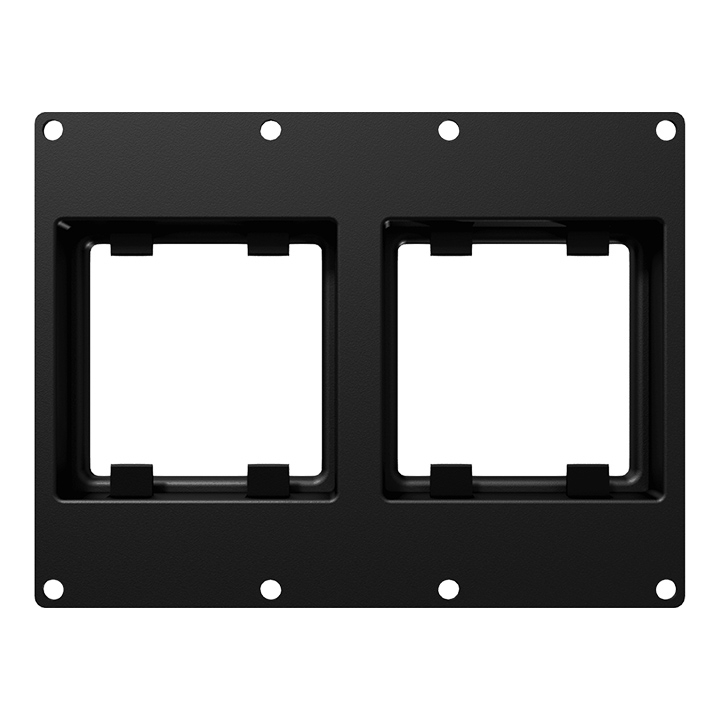

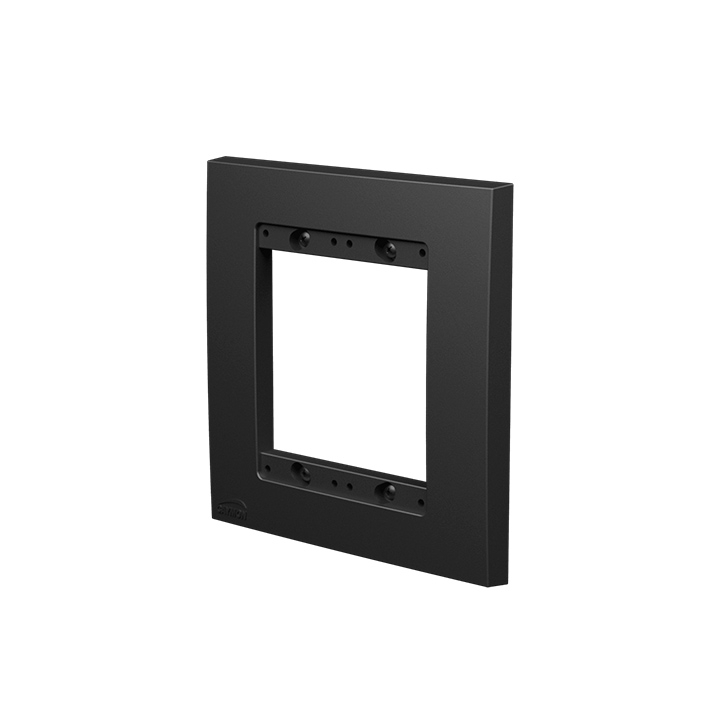

CASY Modular Solutions - In-Wall Frames

CAYMON's stunningly designed in-wall frames blend into any environment. These frames allow a flush mount implementation of custom configurations by using the solderless audio, video, data, and power modules of CASY.
